Product Model

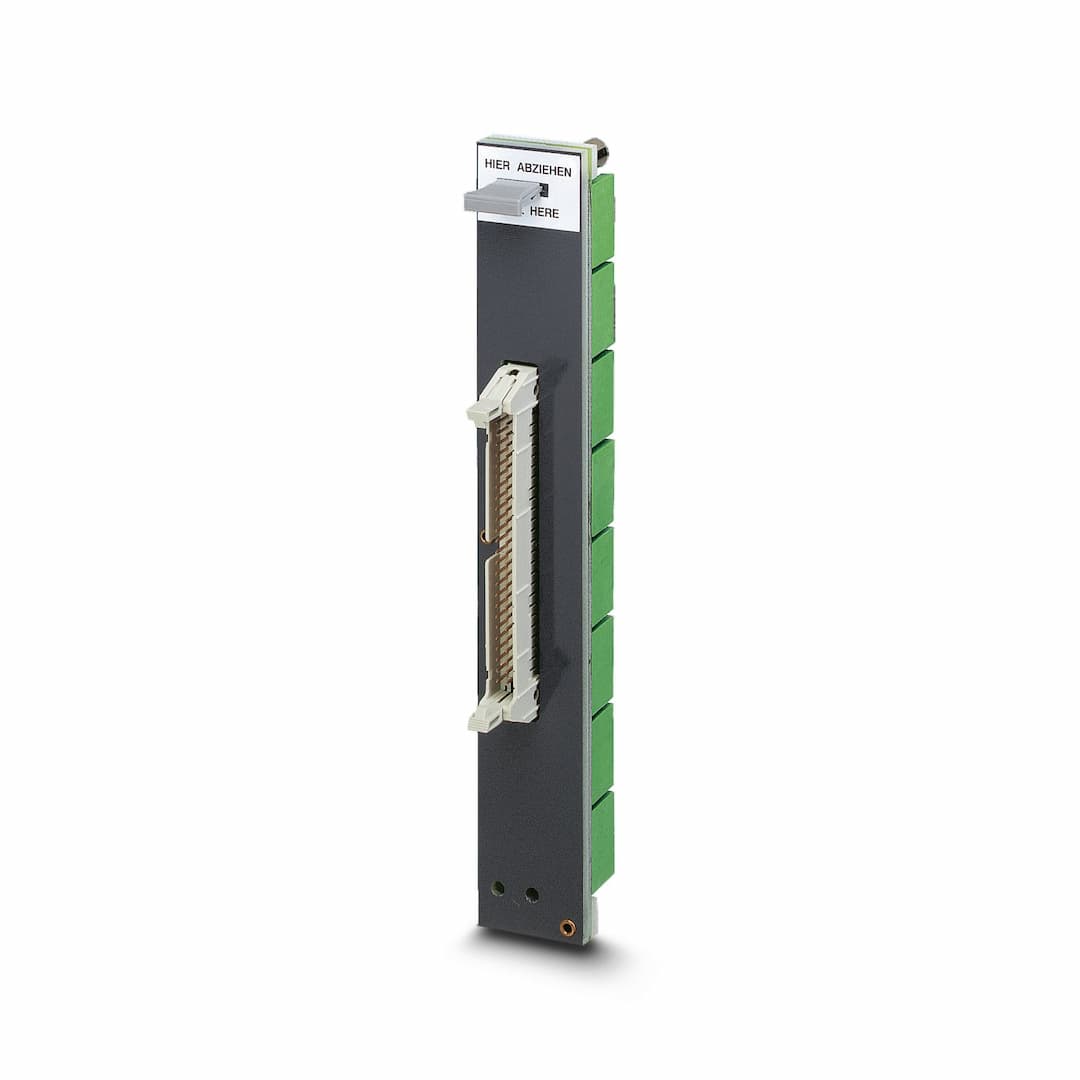

FLKM 50-PA-AB/IBN
Selling Points
- 1Versatile Compatibility: Supports Allen-Bradley PLC 5 and other industrial controllers like GE Fanuc PACSystems RX3i and Siemens SIMATIC S7-1500.
- 2High Reliability: Features a rated insulation voltage of 63 V and a surge voltage of 0.6 kV for functional insulation.
- 3Flexible Connectivity: Equipped with IDC/FLK pin strip connections, allowing for easy integration into various systems.
- 4Operational Safety: Meets standards for overvoltage category II and pollution degree 2, ensuring safe operation in industrial environments.
- 5Wide Operating Range: Operates within ambient temperatures from -20 °C to 50 °C and can be stored/transported between -20 °C and 70 °C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Front adapter | Overvoltage category | II |
Pollution degree | 2 | Max. permissible operating voltage | < 50 V AC
60 V DC |
Max. permissible current | 1 A (per path) | Max. permissible total current | 2 A (per Byte, for supply via connector) |
Rated insulation voltage | 63 V | Rated surge voltage | 0.6 kV (Functional insulation) |
Suitable I/O card | 1771 IBN | Connection method | IDC/FLK pin strip |
Number of connections | 1 | Number of positions | 50 |
Pitch | 2.54 mm | Degree of protection | IP20 |
Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards/regulations | DIN EN 50178
IEC 60664 | Mounting position | any |
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
