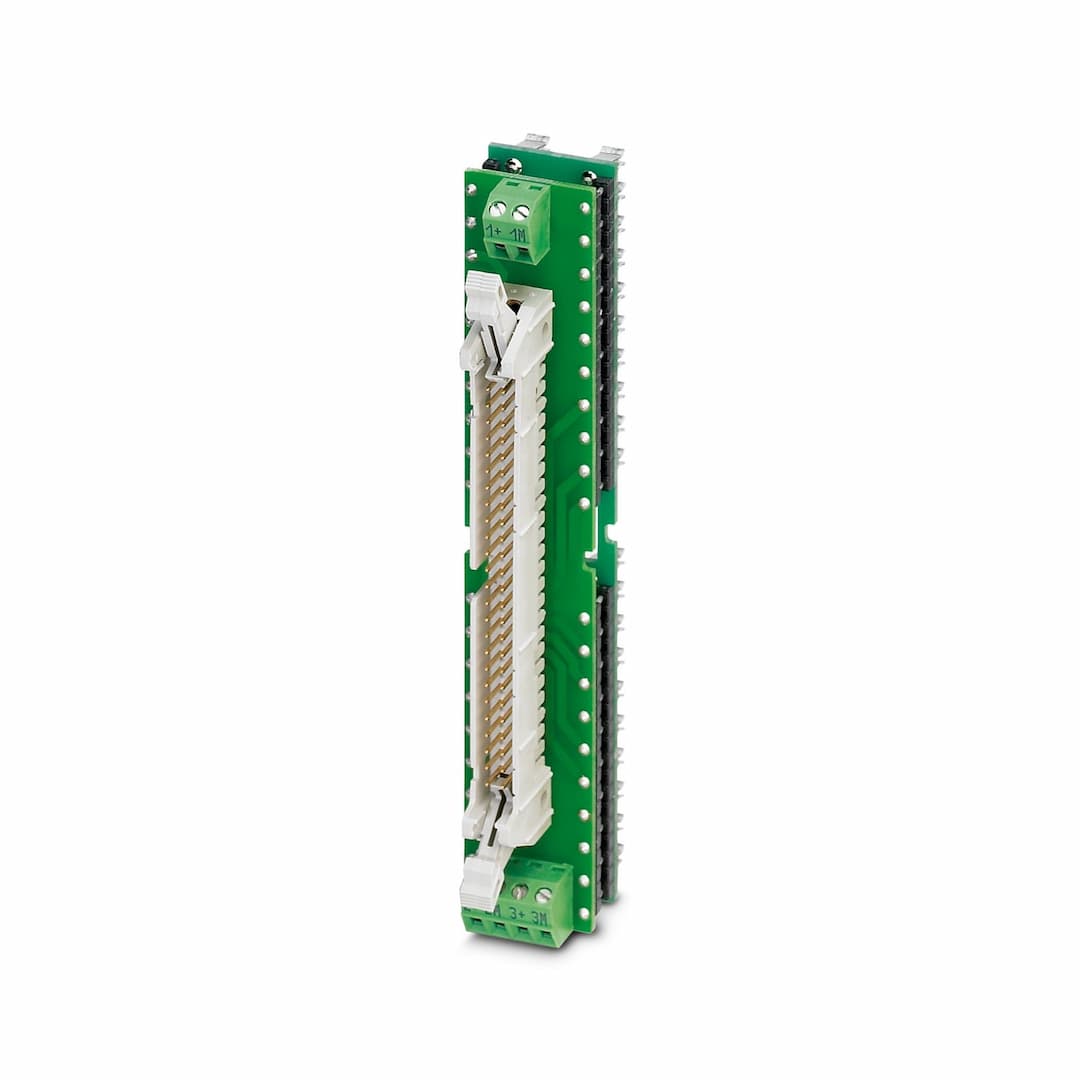

Phoenix Contact FLKM 50-PA/DO326/S7-300

Selling Points

  • 1Compliant with IEC 60664 and DIN EN 50178 standards.
  • 2Supports up to 10 channels for controller level connections.
  • 3Suitable for Siemens S7-300 and ET 200 M I/O cards.
  • 4Operates within -20°C to 60°C ambient temperature.
  • 5Meets REACh and China RoHS environmental compliance.
Product Details
FLKM 50-PA/DO326/S7-300
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product type
Front adapter
Insulation
Functional insulation
Overvoltage category
II
Pollution degree
2
Operating voltage (AC)
≤ 25 V AC
Operating voltage (DC)
≤ 60 V DC
Current (Per path)
≤ 2 A
Current (Total current)
≤ 8 A (during supply via a separate bridged power supply)
Rated insulation voltage
63 V
Rated surge voltage
0.6 kV
Suitable I/O card
6ES7326-2BF01-0AB0 6ES7326-2BF10-0AB0
Connection method
IDC/FLK pin strip
Number of connections
1
Number of positions
50
Pitch
2.54 mm
Connection method
Screw connection
Conductor cross section rigid
0.4 mm² ... 1 mm²
Conductor cross section flexible
0.14 mm² ... 1.5 mm²
Conductor cross section AWG
26 ... 16
Width
27 mm
Height
115.09 mm
Depth
29.82 mm
Degree of protection
IP00
Ambient temperature (operation)
-20 °C ... 60 °C
Ambient temperature (storage/transport)
-20 °C ... 70 °C
Standards/regulations
IEC 60664 DIN EN 50178
Mounting position
any
Notes on operation
The products may only be installed or used by qualified personnel. Compliance with all safety requirements, including all applicable laws, regulations, and standards, must be ensured.
Notes on operation
For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Specifications may be subject to change without notice
