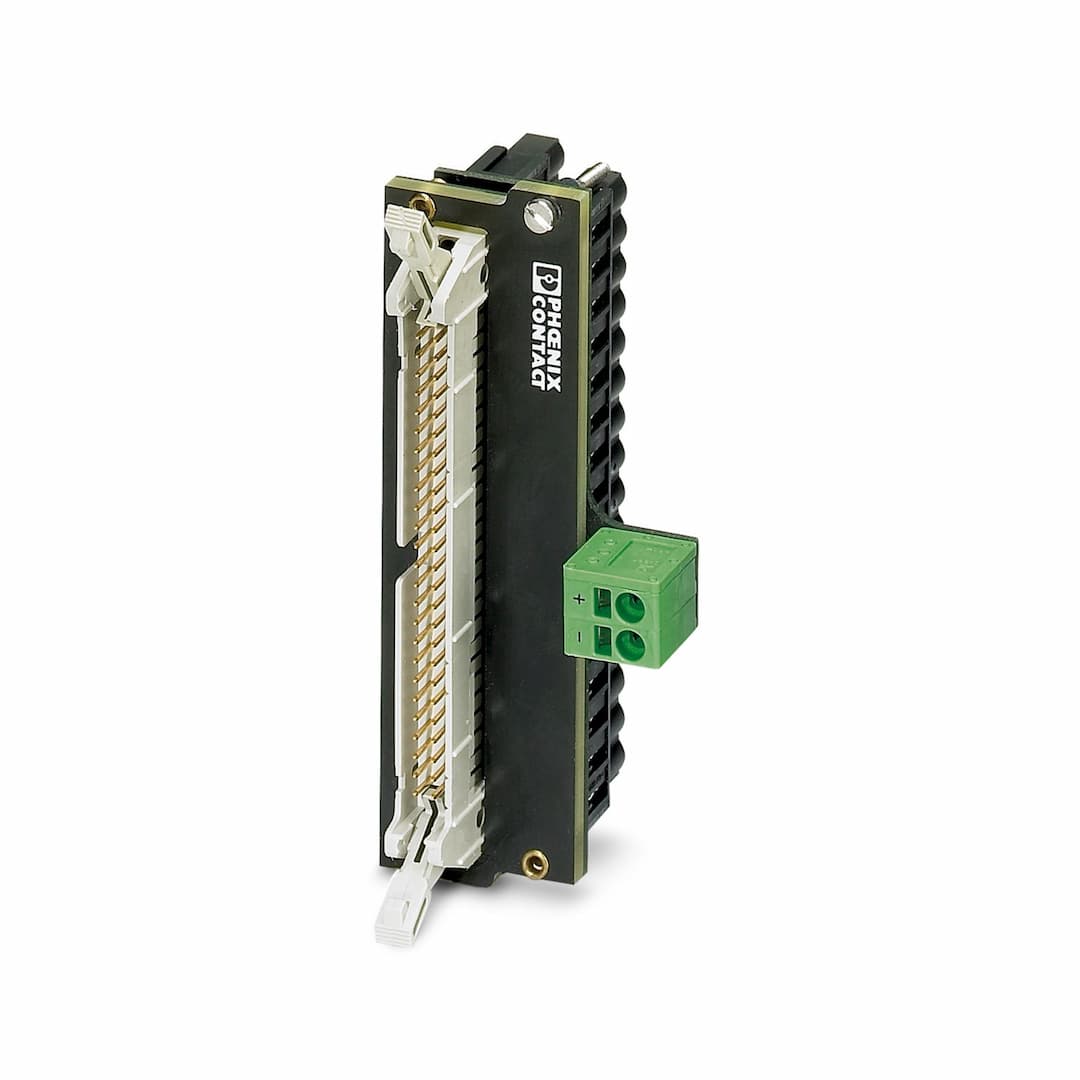

Product Model
FLKM 50-PA-HW/C300
Selling Points
- 1Supports up to 16 channels for Honeywell C300 series.
- 2Compatible with VARIOFACE front adapters and FLK connectors.
- 3Operating temperature range: -20°C to 50°C.
- 4Maximum permissible operating voltage: <50 V AC, 60 V DC.
- 5Robust design with solid and flexible conductor cross-sections (0.2 mm² to 4 mm²).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Front adapter | Insulation | Functional insulation |
Overvoltage category | II | Pollution degree | 2 |
Max. permissible operating voltage | < 50 V AC
60 V DC | Max. permissible current | 1 A (per path)
4 A (per connection, supply via separate power supply) |
Rated insulation voltage | 63 V | Rated surge voltage | 0.6 kV |
Suitable I/O card | TDIL01 (non-redundant)
TDOB01 (non-redundant) | Connection method | IDC/FLK pin strip |
Number of connections | 1 | Number of positions | 50 |
Pitch | 2.54 mm | Connection method | Spring-cage connection |
Conductor cross section rigid | 0.2 mm² ... 4 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 | Degree of protection | IP00 |
Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards/regulations | IEC 60664
DIN EN 50178 | Mounting position | any |
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
