Product Model

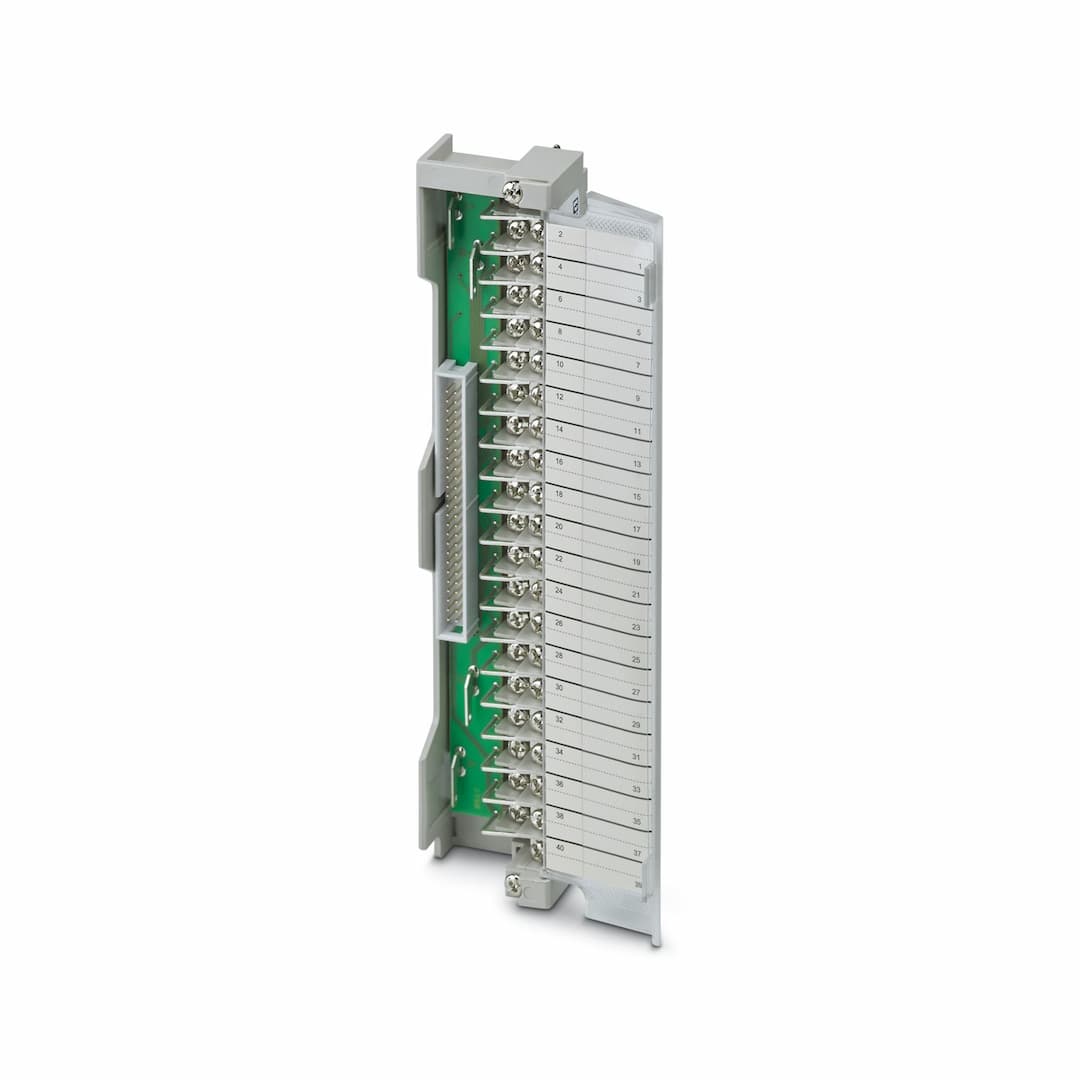

FLKM 50-PA-MODI-TSX/Q
Selling Points
- 1Connects up to 32 channels with IDC/FLK pin strip connectors.
- 2Supports nominal voltage up to 60 V DC and 50 V AC.
- 3Handles a maximum permissible current of 1 A per path and 4 A per connection.
- 4Operates within -20 °C to 50 °C ambient temperature.
- 5Meets DIN EN 50178, IEC 60664, and IEC 62103 standards for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Front adapter | Insulation | Functional insulation |
Overvoltage category | II | Pollution degree | 2 |
Operating voltage (AC) | ≤ 25 V AC | Operating voltage (DC) | ≤ 60 V DC |
Max. permissible current | 4 A (per connection, supply via separate power supply) | Current (Per path) | ≤ 1 A |
Rated insulation voltage | 63 V | Rated surge voltage | 0.6 kV |
Suitable I/O card | DDI 353
DDI 841
DDI 853
DAI 340
DAI 353
DAI 440
DAI 453
DDO 353
DDM 390
ACI 030
ACI 040
ATI 030
ARI 030
AVI 030
ACO 020
ACO 130
AVO 020
EHC 105
EHC 202 | Connection method | IDC/FLK pin strip |
Number of connections | 1 | Number of positions | 50 |
Pitch | 2.54 mm | Degree of protection | IP00 |
Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards/regulations | IEC 60664
DIN EN 50178 | Mounting position | any |
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
