Product Model

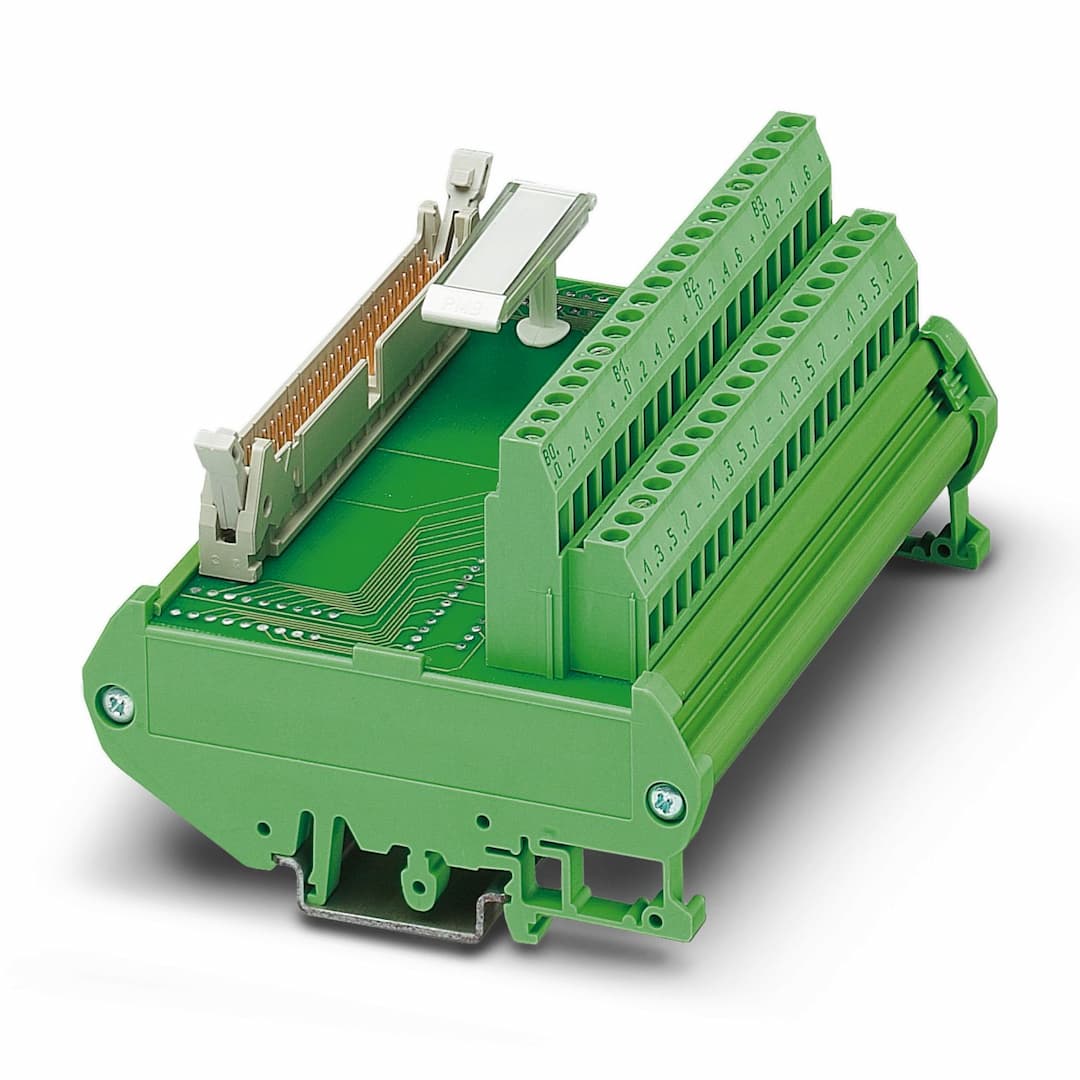

FLKM 50/PLC
Selling Points
- 1Designed for demanding industrial applications with functional insulation and overvoltage protection.
- 2Supports multiple controllers including SIEMENS S7-400, ALLEN-BRADLEY ControlLogix, and MITSUBISHI MELSEC Q.
- 3Each channel has an additional terminal block for common minus potential, enhancing signal integrity.
- 4Made from high-quality polyamide 6.6 green housing material for long-lasting performance.
- 5Mountable on DIN rail with screw connections and IDC/FLK pin strips for straightforward integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Product family | VARIOFACE |
Number of positions | 50 | No. of channels | 32 |
Insulation | Functional insulation | Overvoltage category | II |
Pollution degree | 2 | Operating voltage (AC) | ≤ 30 V AC |
Operating voltage (DC) | ≤ 60 V DC | Current (per branch) | ≤ 1 A |
Current (Voltage supply per byte) | ≤ 2 A | Rated insulation voltage | 63 V |
Rated surge voltage | 0.6 kV (1.2/50 μs) | Suitable I/O card | 6ES7421-1BL01-0AA0
6ES7422-1BL00-0AA0
6ES7422-7BL00-0AB0 |
Suitable I/O card | 1756-IB32
1756-OB32 | Suitable I/O card | 1771 IBN
1771 OBN |
Suitable I/O card | TC-IDD 321
TC-ODD 321 | Suitable I/O card | QX81
QY81P |
Suitable I/O card | DDI 353
DDI 853
DAI 353
DAI 453
DDO 353 | Suitable I/O card | CPU 313C-2DP
CPU 314C-2DP
CPU 314C-2PtP
6ES7321-1BL00-0AA0
6ES7322-1BL00-0AA0
6ES7323-1BL00-0AA0
CPU 313C
CPU 313C-2PtP |
Connection in acc. with standard | IEC 60603-13 | Connection method | IDC/FLK pin strip |
Number of connections | 1 | Number of positions | 50 |
Insertion/withdrawal cycles | > 50 | Pitch | 2.54 mm |
Connection method | Screw connection | Stripping length | 7 mm |
Screw thread | M3 | Number of positions | 40 |
Conductor cross section rigid | 0.2 mm² ... 4 mm² | Conductor cross-section rigid (2 conductors with same cross section) | 0.2 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm²
0.25 mm² ... 1.5 mm² (Ferrule without plastic sleeve)
0.25 mm² ... 2.5 mm² (Ferrule with plastic sleeve) | Conductor cross section flexible (2 conductors with same cross section) | 0.2 mm² ... 1.5 mm²
0.25 mm² ... 0.75 mm² (Ferrule without plastic sleeve)
0.5 mm² ... 0.5 mm² (TWIN ferrule with plastic sleeve) |
Conductor cross section AWG | 24 ... 12 | Tightening torque | 0.5 Nm ... 0.6 Nm |
Pitch | 5.08 mm | Status display present | No |
Width | 113 mm | Height | 90 mm |
Depth | 68 mm | Color | green (RAL 6021) |
Housing insulation material | Polyamide 6.6 green | Degree of protection (Module) | IP00 |
Degree of protection (Installation location) | ≥ IP54 | Ambient temperature (operation) | -20 °C ... 50 °C |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Altitude | ≤ 2000 m |
Certificate | UKCA-compliant | Standards/regulations | EN IEC 60664-1 |
Mounting type | DIN rail mounting | Mounting position | any |
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
