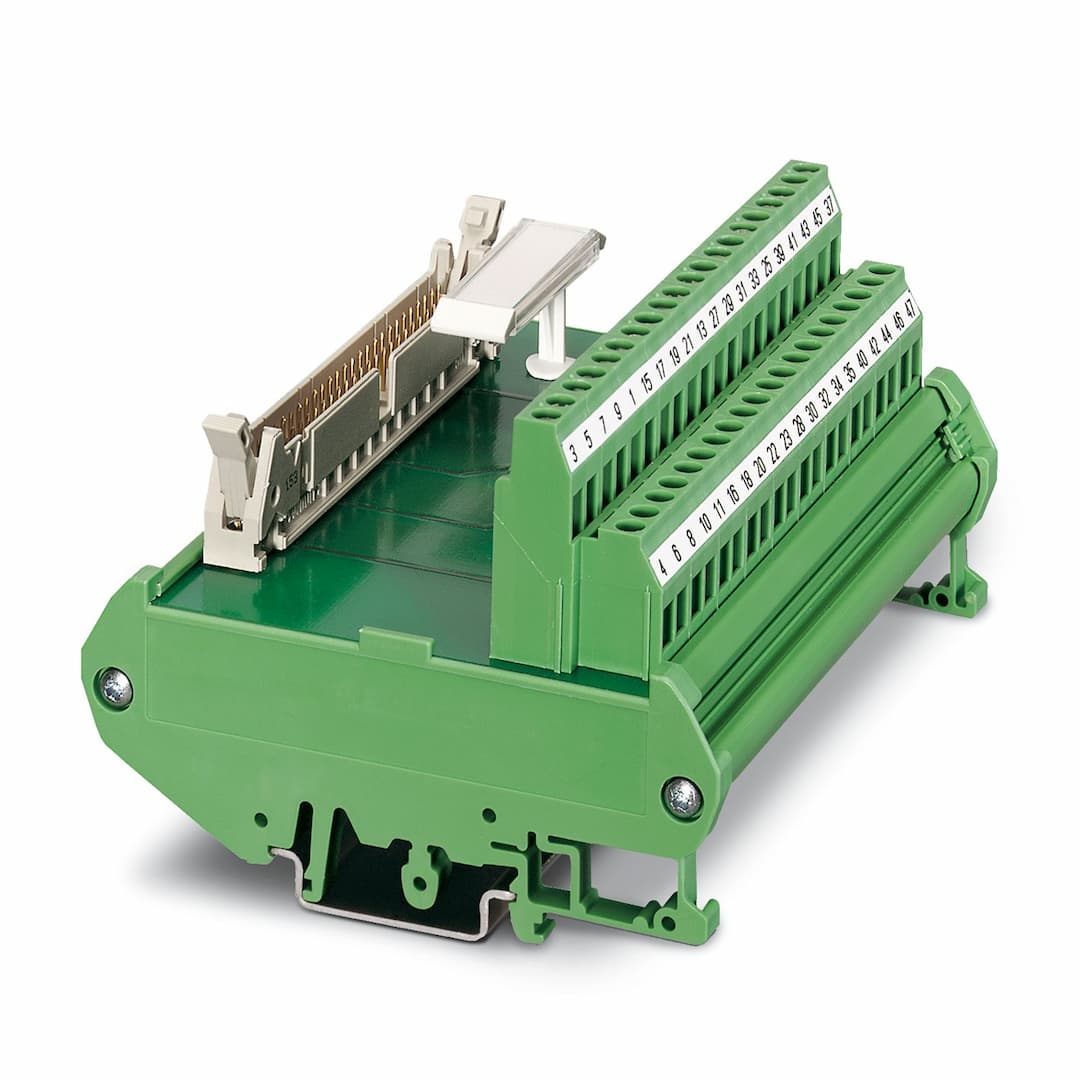

Product Model
FLKM 50/TI
Selling Points
- 1VarioFACE Interface Module: Compatible with SIMATIC TI 505 systems.
- 232 I/O Channels: Efficiently manage inputs and outputs.
- 3SIMATIC-Specific Labeling: Ensures seamless integration with SIMATIC systems.
- 4High Reliability: Designed for robust industrial applications.
- 5Made to Order: Non-returnable, ensuring high-quality production.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Number of positions | 50 |
Overvoltage category | II | Pollution degree | 2 |
Nominal voltage U | 60 V DC | Max. current carrying capacity per branch | 1 A |
Max. total current of voltage supply | 2 A (per byte) | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Number of positions | 40 | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
Connection method | IDC/FLK pin strip | Number of connections | 1 |
Number of positions | 50 | Pitch | 2.54 mm |
Status display | no | Status display present | No |
Width | 113 mm | Height | 90 mm |
Depth | 68 mm | Color | green (RAL 6021) |
Housing insulation material | PVC | Ambient temperature (operation) | -20 °C ... 50 °C |
Standards/regulations | IEC 60664
IEC 60664A
DIN VDE 0110
DIN VDE 0160 (in parts) | Mounting position | any |
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
