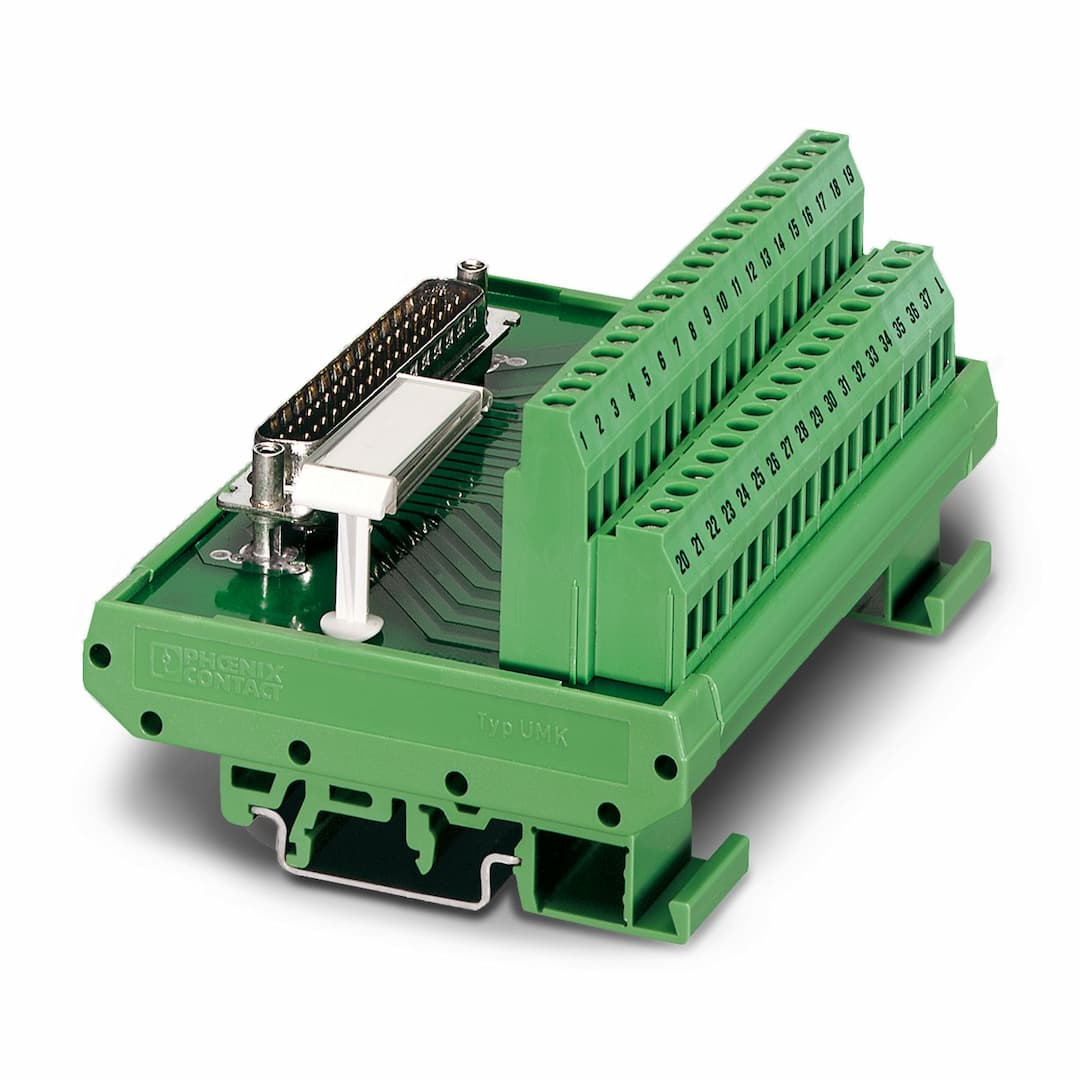

Product Model
FLKM-D25 SUB/B
Selling Points
- 1Designed to mount on NS 35/7.5 or NS 32 DIN rails for easy installation.
- 2Supports up to 2.5A, making it suitable for various electrical applications.
- 3Provides protection against solid objects larger than 12.5 mm in diameter, ensuring a safe and reliable connection.
- 4Available with 9 to 37 contacts, including both male and female versions for diverse interfacing needs.
- 5Operates between -20°C to +50°C, ensuring durability in various environmental conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Product family | VARIOFACE |
No. of channels | 16 | Article revision | 17 |
Insulation | Functional insulation | Overvoltage category | II |
Pollution degree | 2 | Operating voltage (AC) | ≤ 30 V AC |
Operating voltage (DC) | ≤ 60 V DC | Current (per branch) | ≤ 2.5 A |
Current (Total current) | ≤ 62.5 A | Rated insulation voltage | 125 V |
Rated surge voltage | 1.2 kV (1.2/50 μs) | Suitable I/O card | DI810
DI811
DI814
DI818
DI830
DI831
DI840
DI885
DO810
DO814
DO818
DO840
DP820
AI810
AI820
AI830
AI835
AI845
AO810
AO820 |
Connection in acc. with standard | IEC 60807-2 | Connection method | D-SUB socket strip |
Screw thread | UNC 4-40 | Number of connections | 1 |
Number of positions | 25 | Insertion/withdrawal cycles | > 500 |
Pitch | 2.77 mm | Connection method | Screw connection |
Stripping length | 7 mm | Screw thread | M3 |
Number of positions | 26 | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
Conductor cross-section rigid (2 conductors with same cross section) | 0.2 mm² ... 1.5 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm²
0.25 mm² ... 1.5 mm² (Ferrule without plastic sleeve)
0.25 mm² ... 2.5 mm² (Ferrule with plastic sleeve) |
Conductor cross section flexible (2 conductors with same cross section) | 0.2 mm² ... 1.5 mm²
0.25 mm² ... 0.75 mm² (Ferrule without plastic sleeve)
0.5 mm² ... 0.5 mm² (TWIN ferrule with plastic sleeve) | Conductor cross section AWG | 24 ... 12 |
Tightening torque | 0.5 Nm ... 0.6 Nm | Pitch | 5.08 mm |
Status display present | No | Width | 78.65 mm |
Height | 77 mm | Depth | 57.47 mm |
Color | green (RAL 6021) | Housing insulation material | Polyamide PA non-reinforced |
Degree of protection (Module) | IP20 | Degree of protection (Installation location) | ≥ IP54 |
Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Altitude | ≤ 2000 m | Certificate | UKCA-compliant |
Standards/regulations | EN IEC 60664-1 | Mounting type | DIN rail mounting |
Mounting position | any | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
