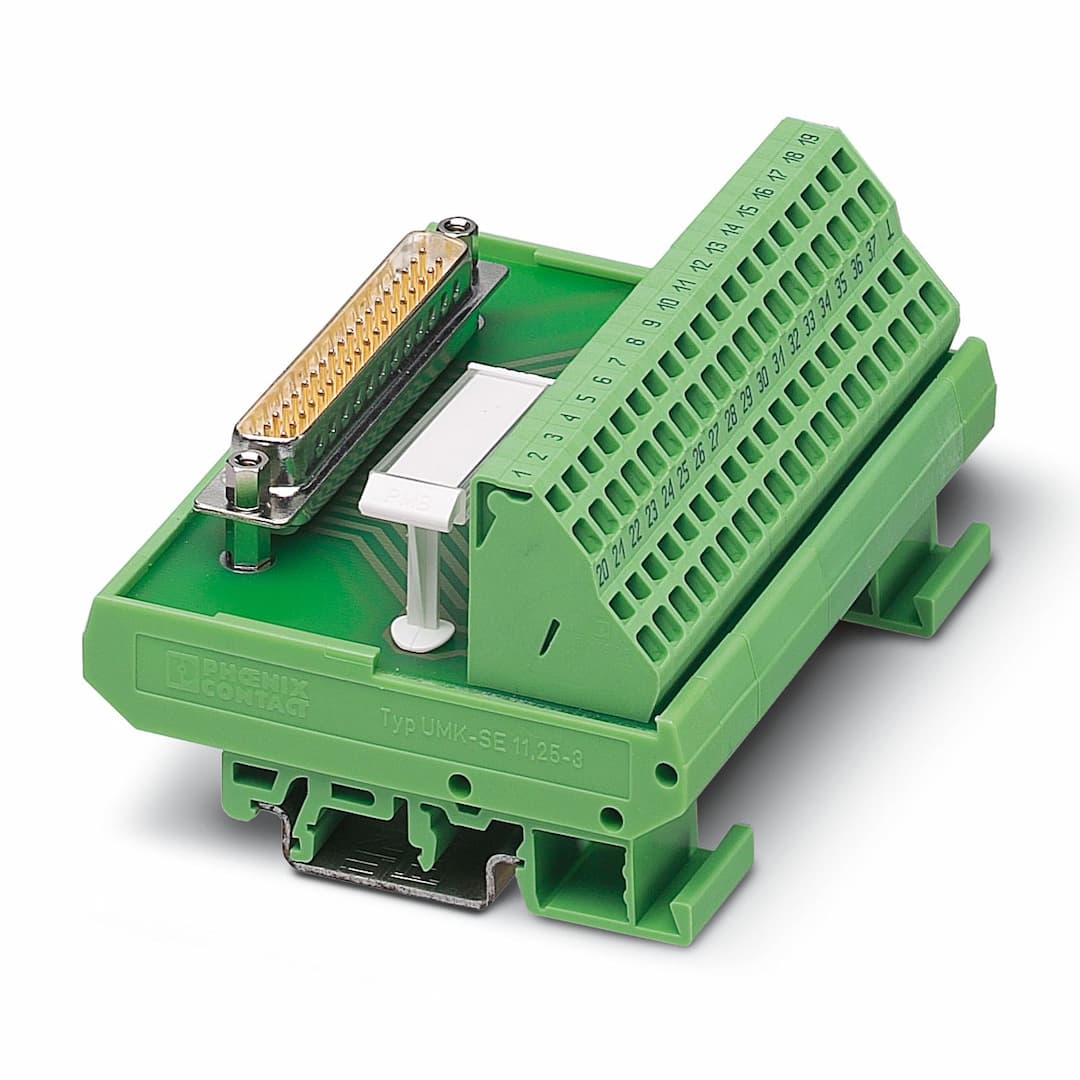

Product Model
FLKM-D25 SUB/B/ZFKDS
Selling Points
- 1The FLKM-D25 SUB/B/ZFKDS offers reliable and efficient connections with a spring-cage technology that adheres to IEC 60807-2 standards.
- 2This module can be mounted in any position, making it suitable for a wide range of applications and environments.
- 3Built with high-quality materials, the module withstands ambient temperatures from -20°C to 50°C, ensuring stable performance.
- 4Meets IEC 60664, DIN EN 50178, and IEC 62103 standards for safety and reliability.
- 5Features a simple spring-cage connection method with a stripping length of 7 mm, facilitating quick and easy installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Number of positions | 25 |
No. of channels | 16 | Article revision | 07 |
Insulation | Functional insulation | Overvoltage category | II |
Pollution degree | 2 | Operating voltage (AC) | ≤ 30 V AC |
Operating voltage (DC) | ≤ 60 V DC | Current (per branch) | ≤ 2.5 A |
Current (Total current) | ≤ 62.5 A | Rated insulation voltage | 125 V |
Rated surge voltage | 1.2 kV (1.2/50 μs) | Suitable I/O card | DI810
DI811
DI814
DI818
DI830
DI831
DI840
DI885
DO810
DO814
DO818
DP820
DO840
AI810
AI820
AI830
AI835
AI845
AO810
AO820
AO845 |
Connection in acc. with standard | IEC 60807-2 | Connection method | D-SUB socket strip |
Screw thread | UNC 4-40 | Number of connections | 1 |
Number of positions | 25 | Insertion/withdrawal cycles | > 500 |
Pitch | 2.77 mm | Connection method | Spring-cage connection |
Stripping length | 7 mm | Number of positions | 26 |
Conductor cross section rigid | 0.2 mm² ... 4 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm²
0.25 mm² ... 2.5 mm² (Ferrule without plastic sleeve)
0.25 mm² ... 1.5 mm² (Ferrule with plastic sleeve) |
Conductor cross section AWG | 24 ... 12 | Pitch | 5.08 mm |
Status display | no | Status display present | No |
Width | 78.75 mm | Height | 77 mm |
Depth | 51.27 mm | Color | green (RAL 6021) |
Housing insulation material | PVC | Degree of protection (Module) | IP20 |
Degree of protection (Installation location) | ≥ IP54 | Ambient temperature (operation) | -20 °C ... 50 °C |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Altitude | ≤ 2000 m |
Certificate | UKCA-compliant | Standards/regulations | EN IEC 60664-1 |
Mounting type | DIN rail mounting | Mounting position | any |
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
