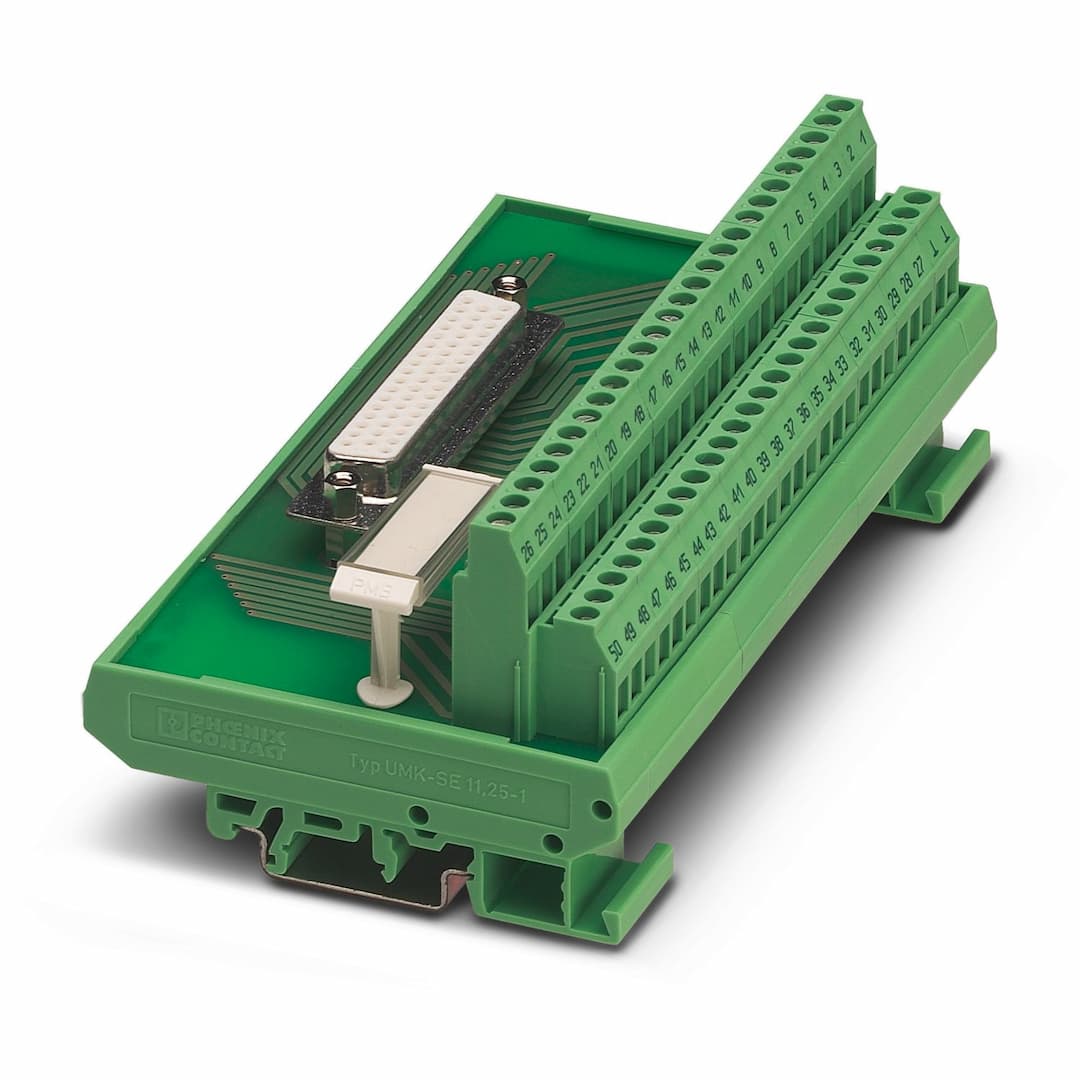

Phoenix Contact FLKM-D50 SUB/B/MKKDS

Selling Points

  • 1High-Quality Connectivity: Reliable screw connection and D-Subminiature socket strip ensure secure and efficient data transfer.
  • 2Versatile Mounting Options: Compatible with NS 35/7.5 or NS 32, 50-pos mounting systems for flexible installation.
  • 3Industrial-Grade Design: Built to withstand ambient temperatures from -20°C to 50°C and altitudes up to 2000 meters.
  • 4Compliant with Regulations: Meets standards such as IEC 60664, CUL, and DIN VDE 0110 for safety and reliability.
  • 5Environmentally Friendly: Compliant with REACh SVHC and China RoHS regulations, ensuring environmentally friendly use for 50 years.
Product Details
FLKM-D50 SUB/B/MKKDS
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product type
Interface module
Number of positions
50
Overvoltage category
II
Pollution degree
2
Nominal voltage U
125 V AC/DC
Max. current carrying capacity per branch
2.5 A 1.5 A (with even load on all branches)
Max. total current of voltage supply
2.5 A (per contact)
Rated insulation voltage
125 V
Rated surge voltage
1.2 kV (Functional insulation)
Connection in acc. with standard
IEC / EN
Connection method
Screw connection
Stripping length
8 mm
Screw thread
M3
Conductor cross section rigid
0.2 mm² ... 4 mm²
Conductor cross section flexible
0.2 mm² ... 2.5 mm²
Conductor cross section AWG
24 ... 12
Connection method
D-SUB socket strip
Number of positions
50
Status display
no
Status display present
No
Width
146.3 mm
Height
77 mm
Depth
58.5 mm
Color
green (RAL 6021)
Housing insulation material
PVC
Degree of protection
IP20
Ambient temperature (operation)
-20 °C ... 50 °C
Ambient temperature (storage/transport)
-20 °C ... 70 °C
Standards/regulations
IEC 60664 DIN EN 50178
Mounting type
DIN rail mounting
Assembly note
in rows with zero spacing
Mounting position
any
Notes on operation
For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Specifications may be subject to change without notice
