Product Model

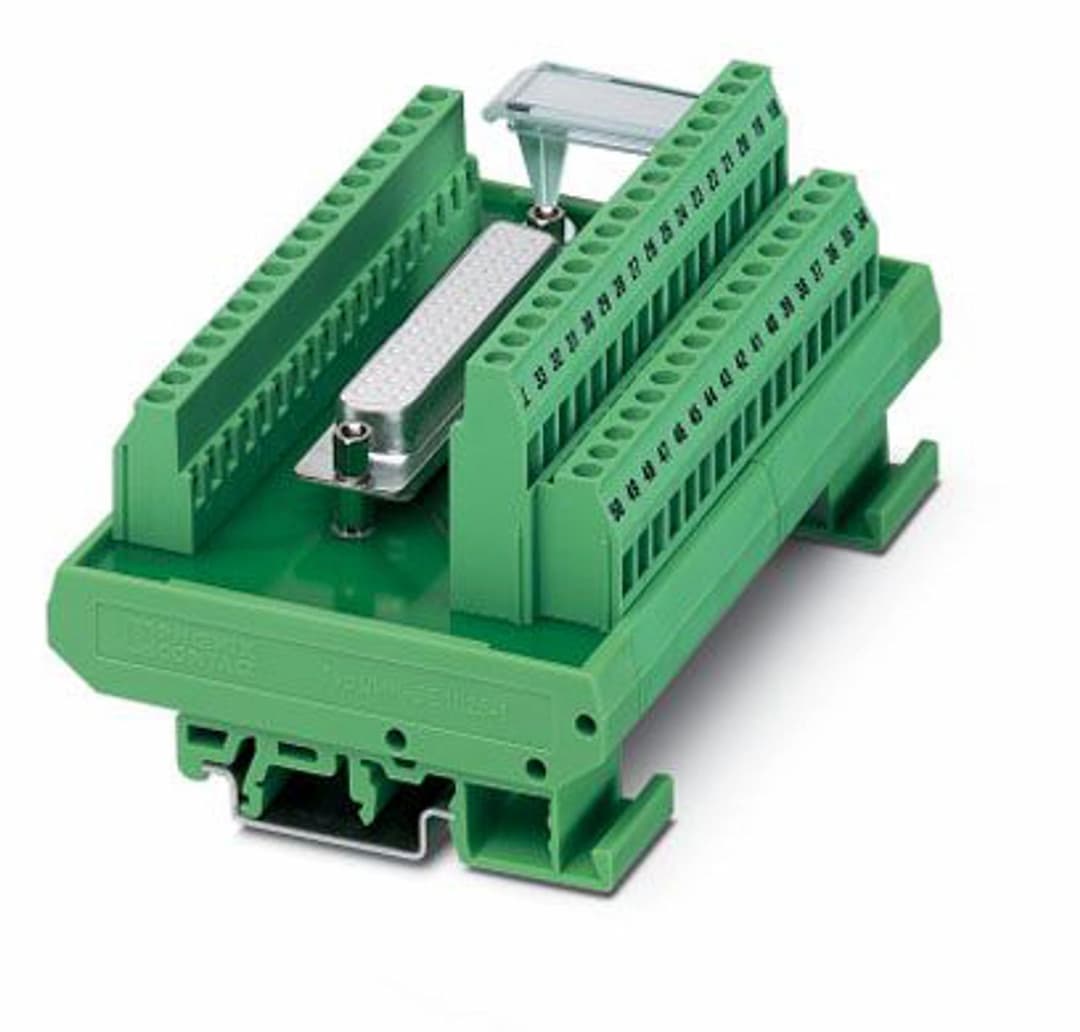

FLKM-D50 SUB/S
Selling Points
- 1High-Quality D-SUB Connectivity: The FLKM-D50 SUB/S module offers reliable 1:1 D-SUB connections with a spring-cage connection and D-SUB pin strip.
- 2Compliant with IEC 60807-2: Meets international standards for insulation and electrical properties, ensuring safety and performance.
- 3Flexible Conductor Cross Sections: Supports rigid and flexible conductors from 0.2 mm² to 4 mm², accommodating various wire sizes.
- 4Durable and Rugged Design: Built with PVC housing insulation and designed for operation in harsh environments (-20°C to 50°C).
- 5Versatile Mounting Options: Can be mounted on any DIN rail, providing flexibility in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Product family | VARIOFACE |
Operating mode | 100% operating factor | Article revision | 12 |
Insulation | Functional insulation | Overvoltage category | II |
Pollution degree | 2 | Operating voltage (AC) | ≤ 30 V AC |
Operating voltage (DC) | ≤ 60 V DC | Current (per branch) | ≤ 2.5 A |
Current (Total current) | ≤ 90 A | Rated insulation voltage | 125 V |
Rated surge voltage | 1.2 kV (1.2/50 μs) | Connection in acc. with standard | IEC 60807-2 |
Connection method | D-SUB pin strip | Screw thread | UNC 4-40 |
Number of connections | 1 | Number of positions | 50 |
Insertion/withdrawal cycles | > 500 | Pitch | 2.77 mm |
Connection method | Screw connection | Stripping length | 7 mm |
Screw thread | M3 | Number of positions | 34 |
Conductor cross section rigid | 0.2 mm² ... 4 mm² | Conductor cross-section rigid (2 conductors with same cross section) | 0.2 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm²
0.25 mm² ... 1.5 mm² (Ferrule without plastic sleeve)
0.25 mm² ... 2.5 mm² (Ferrule with plastic sleeve) | Conductor cross section flexible (2 conductors with same cross section) | 0.2 mm² ... 1.5 mm²
0.25 mm² ... 0.75 mm² (Ferrule without plastic sleeve)
0.5 mm² ... 0.5 mm² (TWIN ferrule with plastic sleeve) |
Conductor cross section AWG | 24 ... 12 | Tightening torque | 0.5 Nm ... 0.6 Nm |
Pitch | 5.08 mm | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Number of positions | 18 | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
Conductor cross-section rigid (2 conductors with same cross section) | 0.2 mm² ... 1.5 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm²
0.25 mm² ... 2.5 mm² (Ferrule without plastic sleeve)
0.25 mm² ... 2.5 mm² (Ferrule with plastic sleeve) |
Conductor cross section flexible (2 conductors with same cross section) | 0.2 mm² ... 1.5 mm²
0.25 mm² ... 0.75 mm² (Ferrule without plastic sleeve)
0.5 mm² ... 1.5 mm² (TWIN ferrule with plastic sleeve) | Conductor cross section AWG | 24 ... 12 |
Tightening torque | 0.5 Nm ... 0.6 Nm | Pitch | 5.08 mm |
Status display present | No | Width | 112.5 mm |
Height | 77 mm | Depth | 57.47 mm |
Color | green (RAL 6021) | Housing insulation material | Polyamide 6 green |
Degree of protection (Module) | IP20 | Degree of protection (Installation location) | ≥ IP54 |
Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Altitude | ≤ 2000 m | Certificate | UKCA-compliant |
Standards/regulations | EN IEC 60664-1 | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
