Product Model

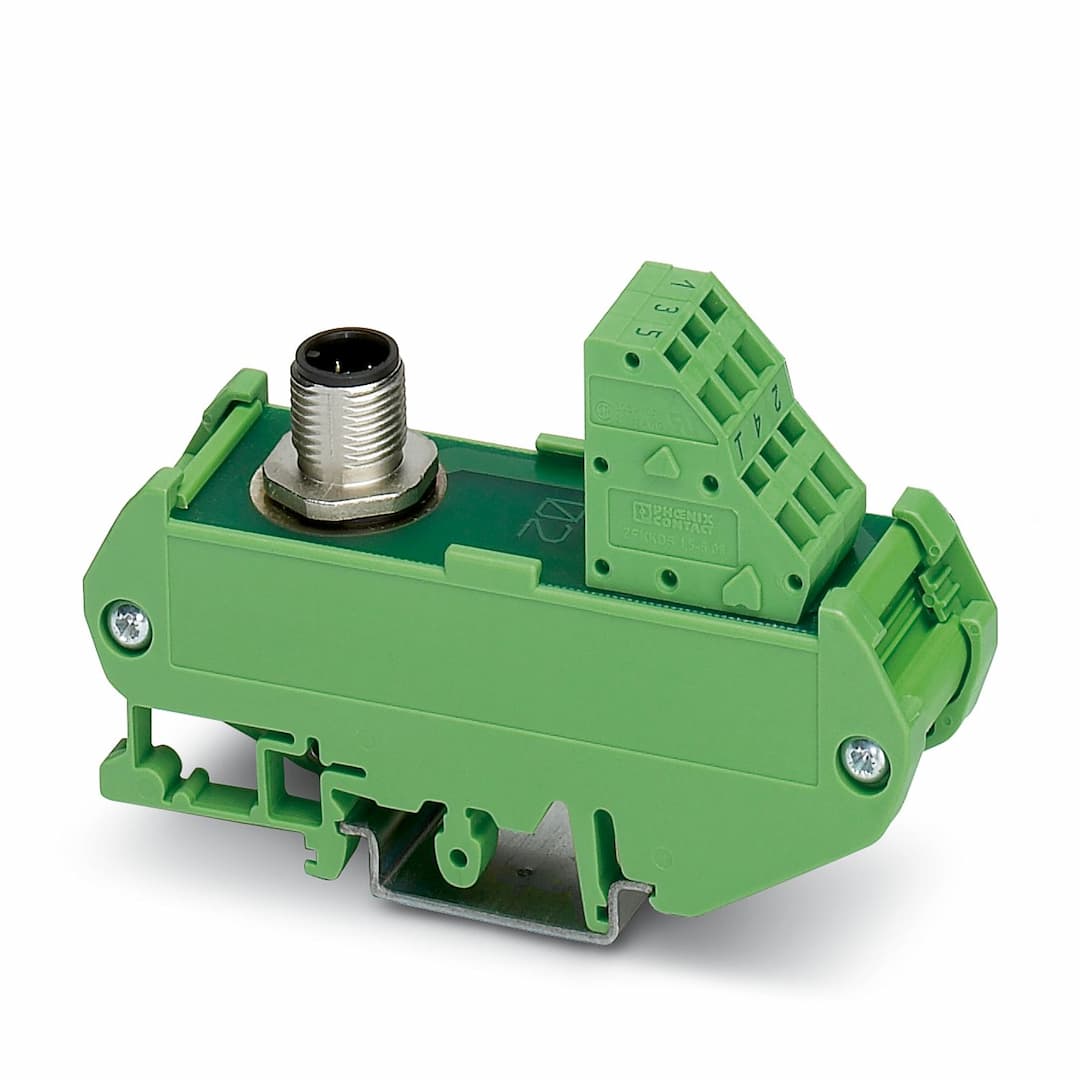

FLKM-M12/S/5P/4A/SO107
Selling Points
- 1High-Quality Connectivity Solution: The FLKM-M12/S/5P/4A/SO107 offers reliable connections with spring-cage terminal blocks and an M12-SAC socket.
- 2Industrial-Grade Durability: Designed for harsh environments with ambient temperatures ranging from -20°C to 55°C and up to 2000 meters altitude.
- 3Versatile Mounting Options: Can be mounted in any position with zero spacing, making it suitable for various industrial setups.
- 4Compliant with Industry Standards: Meets standards like DIN EN 50178:1998-04 and is UL Recognized, ensuring safety and reliability.
- 5Long-Term Environmental Compliance: Compliant with REACh SVHC and China RoHS regulations, ensuring a 50-year environmentally friendly use period.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Number of positions | 5 |
Overvoltage category | II | Pollution degree | 2 |
Nominal voltage U | 24 V AC/DC | Max. current carrying capacity per branch | 4 A |
Rated surge voltage | Basic insulation | Connection in acc. with standard | IEC / EN |
Connection method | Spring-cage connection | Stripping length | 7 mm |
Number of positions | 6 | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.2 mm² ... 1.5 mm² | Conductor cross section AWG | 24 ... 14 |
Connection method | M12-SAC socket | Number of positions | 5 |
Status display present | No | Width | 90 mm |
Height | 26.5 mm | Depth | 60 mm |
Color | green (RAL 6021) | Housing insulation material | Polyamide PA non-reinforced |
Ambient temperature (operation) | -20 °C ... 55 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards/regulations | EN 50178 | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
