Product Model

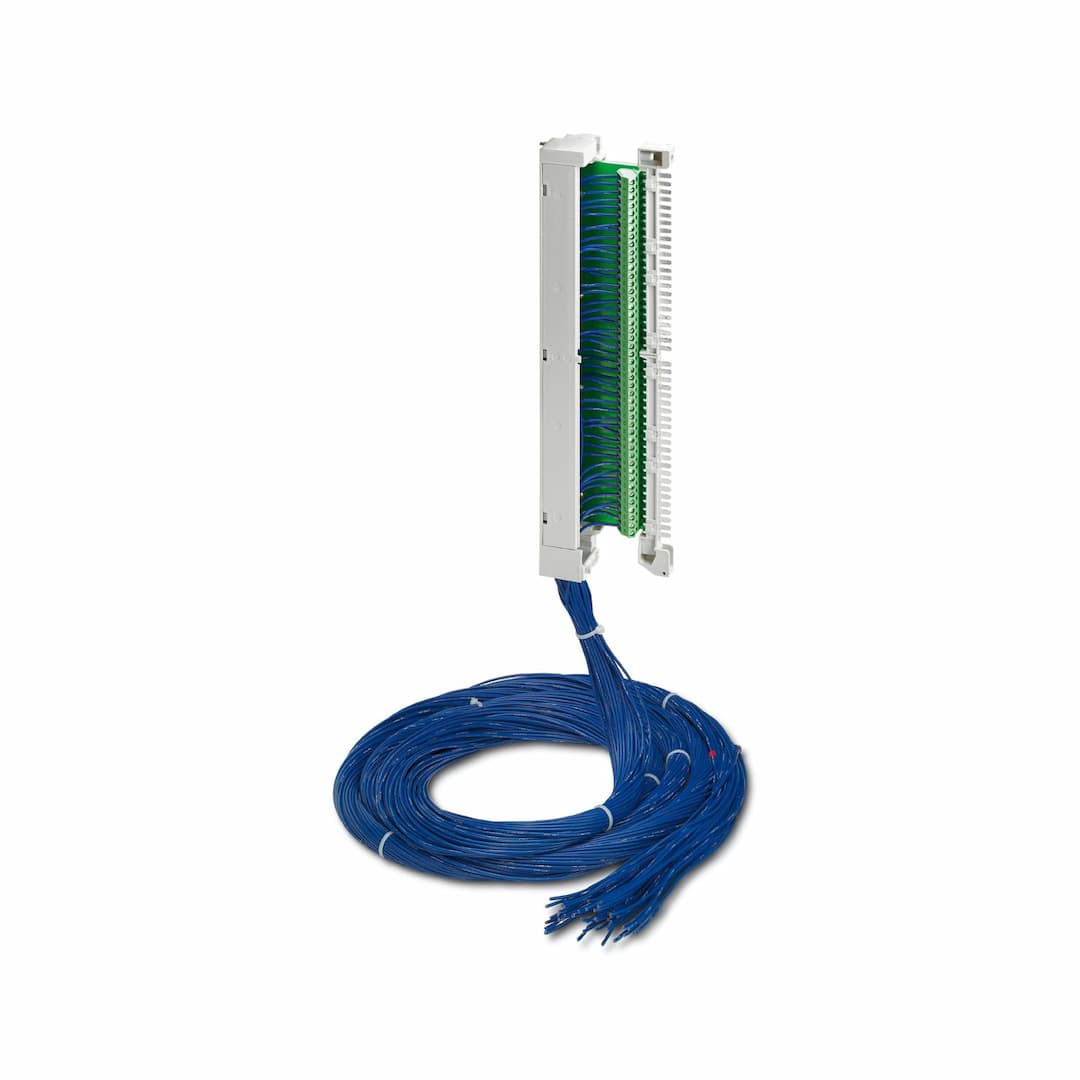

FLKM S115/47X0,75/5,0M/OE
Selling Points
- 1Extends S5-115 Field Wiring: Perfect for extending existing field wiring connections.
- 2Establishes All Connections: Supports connections from 1 to 23 and 25 to 47.
- 3Suitable for Siemens S5-115: Compatible with Siemens S5-115 U pin strip connections.
- 4Ambient Temperature Range: Operates from -20°C to 50°C.
- 5Halogen-Free Cable: Ensures environmental safety with a halogen-free cable.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Front adapter | Overvoltage category | II |
Pollution degree | 2 | Operating voltage (AC/DC) | ≤ 250 V AC/DC |
Current (Per path) | ≤ 6 A | Rated insulation voltage | 260 V |
Rated surge voltage | 2.3 kV (Functional insulation) | Suitable I/O card | 6ES5 ... |
Connection method | SIEMENS S5-115 U pin strip | Connection method | Single wires |
Number of connections | 47 | Number of positions | 1 |
Number of positions | 46 | Shielded | no |
Conductor type | Round cable set | AWG signal line | 21 |
Conductor cross section | 46x 0.75 mm² | Outer sheath, material | Semi-rigid PVC |
Conductor material | Bare Cu litz wires | Halogen-free | no |
Degree of protection | IP00 | Ambient temperature (operation) | -20 °C ... 50 °C |
Ambient temperature (storage/transport) | -20 °C ... 80 °C | Standards/regulations | DIN EN 50178
IEC 60664 |
Mounting position | any | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
