Product Model

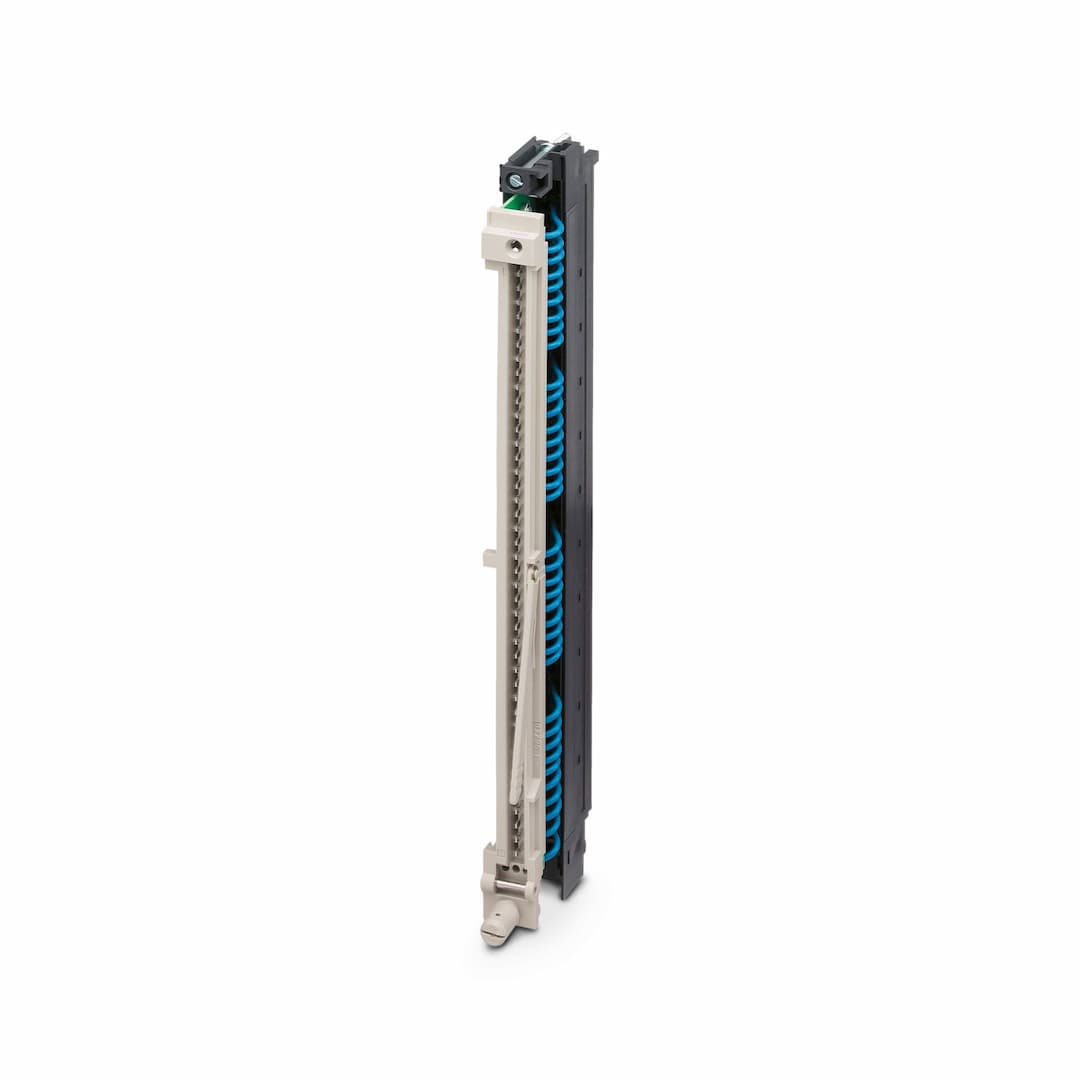

FLKM S135-460-4UA/U/S400
Selling Points
- 1Connects SIMATIC S5 plugs directly to SIMATIC S7 400 base boards.
- 2Supports current measurement with 6ES5 460-4UA13 I/O card.
- 3Compatible with ambient temperatures from -20°C to 50°C.
- 4Features a max permissible current of 4 A per path and connection.
- 5Meets DIN EN 50178 and IEC 62103 standards for industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Front adapter | Overvoltage category | II |
Pollution degree | 2 | Max. permissible operating voltage | 60 V DC |
Max. permissible current | 4 A (per path)
4 A (per connection, supply via separate power supply) | Rated insulation voltage | 63 V |
Rated surge voltage | 0.6 kV (Functional insulation) | Suitable I/O card | 6ES5 460-4UA13 |
Connection method | SIEMENS S5-135 U pin strip | Degree of protection | IP00 |
Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards/regulations | IEC 60664
DIN EN 50178 | Mounting position | any |
Notes on operation | The LEDs of the S7-400 module are hidden. | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
