Product Model

FLKM S135/S7/FLK50/PLC

Manufacturer

Phoenix Contact

Category

Unclassified

Product ID

20505

In Stock
Last updated: 2025/4/26
View Specifications

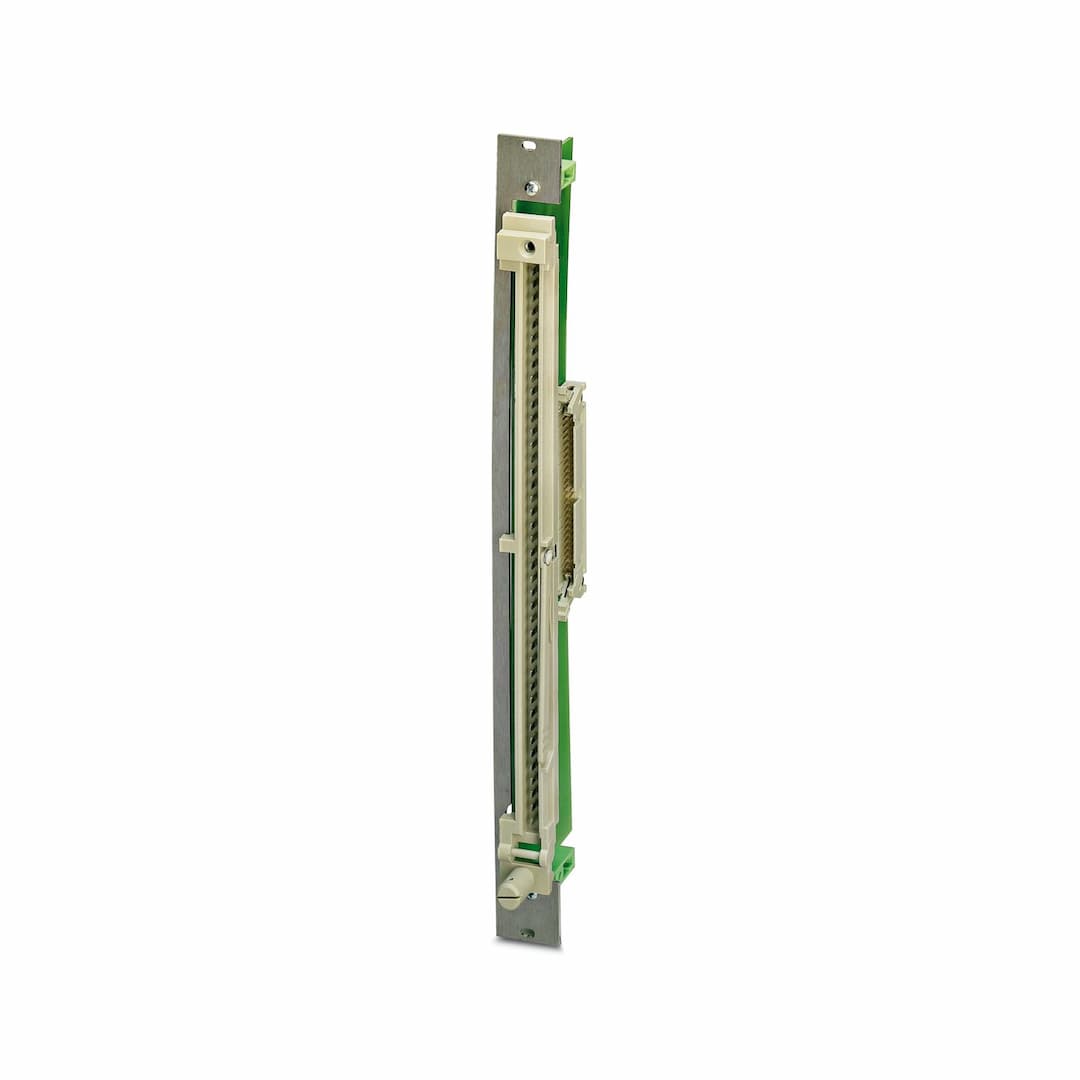

Phoenix Contact FLKM S135/S7/FLK50/PLC

Selling Points

  • 1Seamless Integration: Converts SIMATIC S5-135 to S7 control systems, facilitating easy migration.
  • 2High Reliability: Operates within a wide ambient temperature range (-20°C to 50°C) and supports 100% operating factor.
  • 3Versatile Connectivity: Uses IDC/FLK pin strip connectors with a pitch of 2.54 mm, supporting up to 50 positions.
  • 4Compliance and Safety: Meets DIN EN 50178 and IEC 62103 standards, ensuring electrical safety and reliability.
  • 5Long-Term Performance: Designed for a 50-year use period, making it a durable choice for industrial applications.
Product Details
FLKM S135/S7/FLK50/PLC
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product type
Front adapter
Insulation
Functional insulation
Overvoltage category
II
Pollution degree
2
Max. permissible operating voltage
60 V DC
Max. permissible current
1 A (per path)
Nominal operating mode
100% operating factor
Rated insulation voltage
63 V
Rated surge voltage
0.6 kV
Suitable I/O card
6ES5 420-4UA14 6ES5 430-4UA14 6ES5 441-4UA14 6ES5 451-4UA14
Connection method
IDC/FLK pin strip
Number of connections
1
Number of positions
50
Pitch
2.54 mm
Width
26 mm
Height
85 mm
Depth
306 mm
Degree of protection
IP00
Ambient temperature (operation)
-20 °C ... 50 °C
Ambient temperature (storage/transport)
-20 °C ... 70 °C
Standards/regulations
IEC 60664 DIN EN 50178
Mounting position
any
Order information:
The components for setting up an adapter carrier as in the application example (data sheet in the download area), which can be used to secure the migration adapter, can be obtained from Heitec AG based in Eckental-Eschenau, Germany. The following order numbers are required for carrier setup:
Notes on operation
For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Specifications may be subject to change without notice
