Product Model

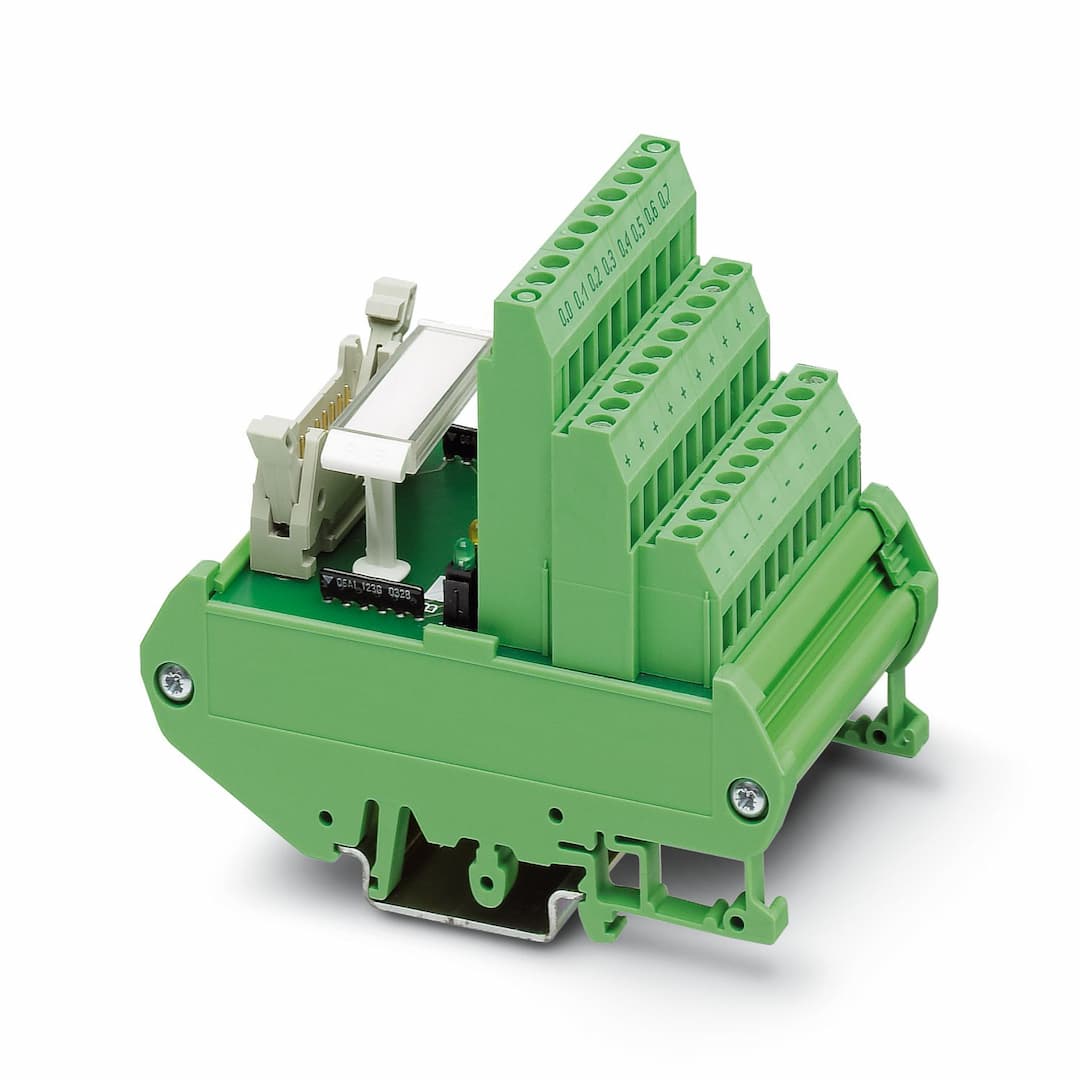

FLKMS 14/ 8IM/LA/PLC
Selling Points
- 1Connects 8 p-n-p sensors with ease.
- 2Includes LED indicators for status monitoring.
- 3Robust insulation for reliable performance.
- 4Suitable for ABB S800 I/O controllers.
- 5Compatible with DI810 and DI818 I/O cards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Product family | VARIOFACE |
Number of positions | 14 | No. of channels | 8 |
Article revision | 10 | Insulation | Functional insulation |
Overvoltage category | II | Pollution degree | 2 |
Operating voltage range | 19.2 V DC ... 26.4 V DC | Current (per branch) | ≤ 1 A |
Current (Voltage supply) | ≤ 3 A | Rated insulation voltage | 63 V |
Rated surge voltage | 0.6 kV (1.2/50 μs) | Suitable I/O card | DI810
DI818
DI830
DI840
DO810
DO840 |
Suitable I/O card | 6ES7421-1BL01-0AA0
6ES7422-1BL00-0AA0
6ES7422-7BL00-0AB0 | Suitable I/O card | IC693 MDL241
IC693 MDL634
IC693 MDL634
IC693 MDL646
IC693 MDL732
IC693 MDL740
IC693 MDL742 |
Suitable I/O card | 1756-IB32
1756-OB32
1756-IB16
1756-OB16E | Suitable I/O card | 1771 IBN
1771 OBN |
Suitable I/O card | 1746 OB16
1746 IB16
1746 ITB16
1746 IN16
1746 OB 32
1746 IB 32 | Suitable I/O card | TC-IDD 321
TC-ODD 321 |
Suitable I/O card | QX81
QY81P | Suitable I/O card | DDI 353
DDI 853
DDO 353 |
Suitable I/O card | CPU 313C-2DP
CPU 314C-2DP
CPU 314C-2PtP
6ES7321-1BH02-0AA0
6ES7321-1BL00-0AA0
6ES7322-1BH01-0AA0
6ES7322-1BL00-0AA0
6ES7323-1BH01-0AA0
6ES7323-1BL00-0AA0
6ES7321-1BH10-0AA0
6ES7322-1BH10-0AA0
CPU 313C
CPU 313C-2PtP | Connection in acc. with standard | IEC 60603-13 |
Connection method | IDC/FLK pin strip | Number of connections | 1 |
Number of positions | 14 | Insertion/withdrawal cycles | > 50 |
Pitch | 2.54 mm | Connection method | Screw connection |
Stripping length | 7 mm | Screw thread | M3 |
Number of positions | 28 | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
Conductor cross-section rigid (2 conductors with same cross section) | 0.2 mm² ... 1.5 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm²
0.25 mm² ... 1.5 mm² (Ferrule without plastic sleeve)
0.25 mm² ... 2.5 mm² (Ferrule with plastic sleeve) |
Conductor cross section flexible (2 conductors with same cross section) | 0.2 mm² ... 1.5 mm²
0.2 mm² ... 0.75 mm² (Ferrule without plastic sleeve)
0.5 mm² ... 0.5 mm² (TWIN ferrule with plastic sleeve) | Conductor cross section AWG | 24 ... 12 |
Tightening torque | 0.5 Nm ... 0.6 Nm | Pitch | 5.08 mm |
Status display | LED (yellow) | Status display present | Yes |
Operating voltage display | Green LED | Width | 57 mm |
Height | 89.6 mm | Depth | 79.4 mm |
Color | green (RAL 6021) | Housing insulation material | Polyamide 6 green |
Degree of protection (Module) | IP00 | Degree of protection (Installation location) | ≥ IP54 |
Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Altitude | ≤ 2000 m | Certificate | UKCA-compliant |
Standards/regulations | EN IEC 60664-1 | Mounting type | DIN rail mounting |
Mounting position | any | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
