Product Model

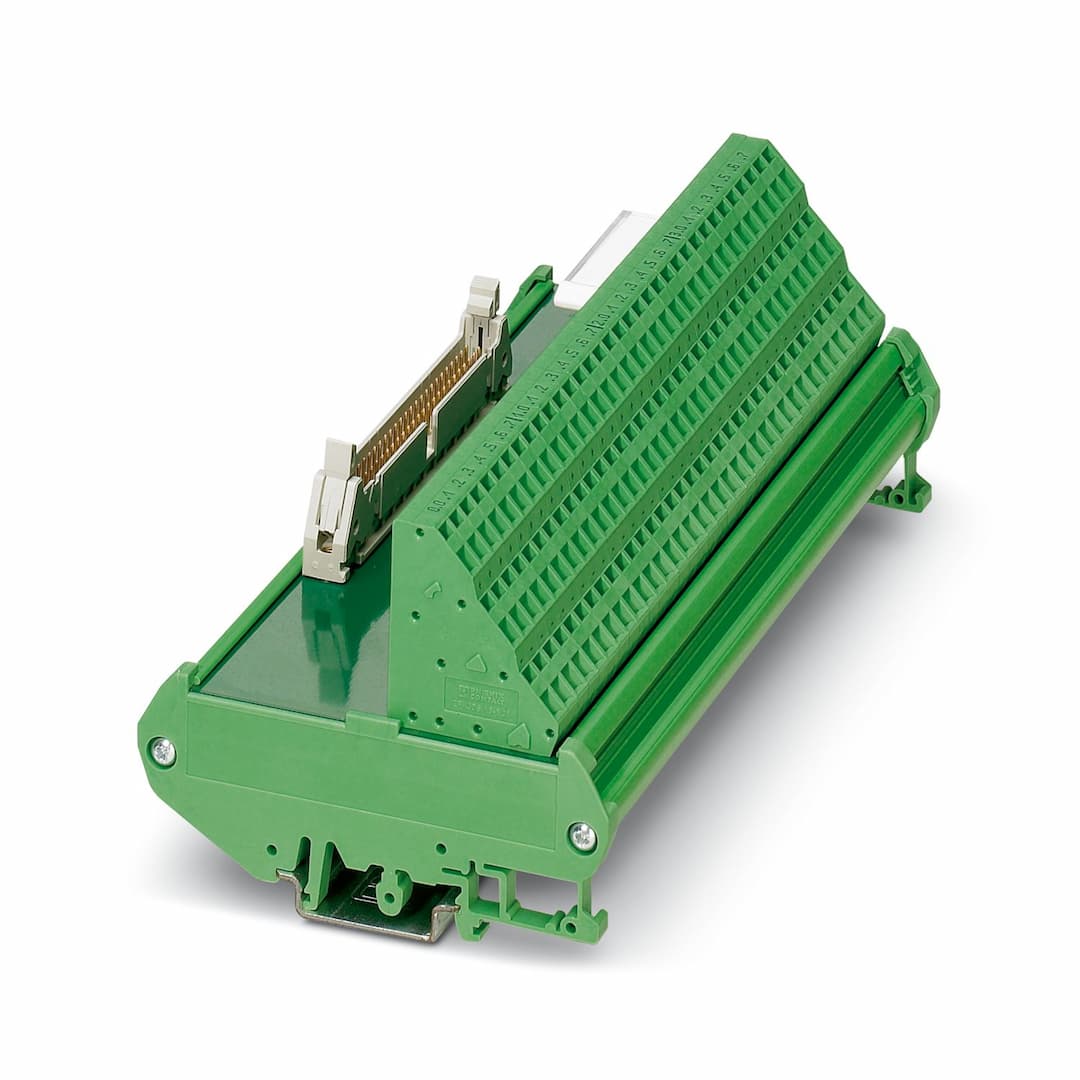

FLKMS 50/32IM/ZFKDS/PLC
Selling Points
- 1Connects 32 p-n-p sensors with LED option for enhanced visibility.
- 2Supports positive and negative connections per signal for precise control.
- 3Features byte-by-byte labeling for easy signal identification.
- 4Compatible with SIEMENS S7-1500 and other leading process control systems.
- 5Operates within -20°C to +50°C ambient temperature range.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Number of positions | 50 |
No. of channels | 32 | Insulation | Functional insulation |
Overvoltage category | II | Pollution degree | 2 |
Nominal voltage U | 60 V DC | Max. current carrying capacity per branch | 1 A |
Max. total current of voltage supply | 2 A (per byte) | Rated insulation voltage | 63 V |
Rated surge voltage | 0.6 kV | Suitable I/O card | 6ES7521-1BL00-0AB0
6ES7522-1BL00-0AB0
6ES7522-1BL01-0AB0 |
Suitable I/O card | 6ES7421-1BL01-0AA0
6ES7422-1BL00-0AA0
6ES7422-7BL00-0AB0 | Suitable I/O card | 1771 IBN
1771 OBN |
Suitable I/O card | TC-IDD 321
TC-ODD 321 | Suitable I/O card | LX41C4
LX42C4
LY41NT1P
LY42NT1P
LY41PT1P
LY42PT1P |
Suitable I/O card | QX81
QY81P
QX41
QX41-S1
QX42
QX42-S1
QX71
QX72
QY41P
QY42P
QY71
QH42P
QX82
QX82-S1
QY82P | Suitable I/O card | DDI 353
DDI 853
DAI 453
DDO 353 |
Suitable I/O card | CPU 313C-2DP
CPU 314C-2DP
CPU 314C-2PtP
6ES7321-1BL00-0AA0
6ES7322-1BL00-0AA0
6ES7323-1BL00-0AA0
CPU 313C
CPU 313C-2PtP | Suitable I/O card | IC694MDL754
IC694MDL660 |
Connection method | Spring-cage connection | Stripping length | 8 mm |
Conductor cross section rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section flexible | 0.2 mm² ... 1.5 mm² |
Conductor cross section AWG | 24 ... 12 | Connection method | IDC/FLK pin strip |
Number of connections | 1 | Number of positions | 50 |
Pitch | 2.54 mm | Status display present | No |
Width | 180 mm | Height | 90 mm |
Depth | 73.5 mm | Color | green (RAL 6021) |
Degree of protection | IP00 | Ambient temperature (operation) | -20 °C ... 50 °C |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Standards/regulations | DIN EN 50178
IEC 60664 |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
