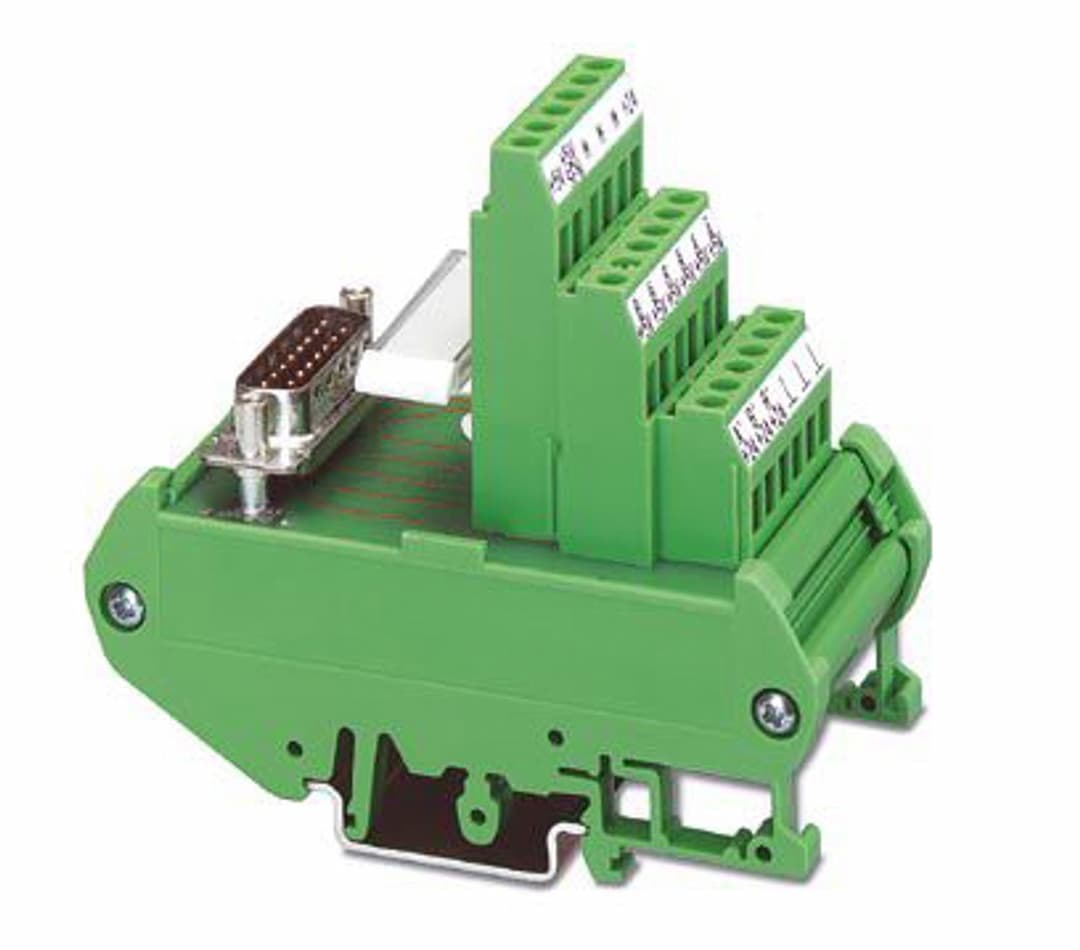

Product Model
FLKMS-D15 SUB/S/COUNT/S100
Selling Points
- 1DIN Rail Mounting: Designed for easy installation on DIN rails, enhancing flexibility in industrial settings.
- 2High Reliability: Built with robust materials and tested for over 500 insertion/withdrawal cycles.
- 3Versatile Connectivity: Supports 15 D-sub connections, accommodating various electrical cabling needs.
- 4Compact Dimensions: Measuring 45 x 57.47 x 77 mm, ideal for space-constrained applications.
- 5Made to Order: Customizable to meet specific requirements, ensuring a precise fit for your project.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Product family | VARIOFACE |
Overvoltage category | II | Pollution degree | 2 |
Nominal voltage U | 40 V DC | Max. current carrying capacity per branch | 0.5 A |
Connection in acc. with standard | IEC / EN | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Conductor cross section rigid | 0.2 mm² ... 4 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 | Connection method | IDC/FLK pin strip |
Pitch | 2.54 mm | Status display | no |
Status display present | No | Width | 45 mm |
Height | 90 mm | Depth | 81 mm |
Color | green (RAL 6021) | Housing insulation material | Polyamide 6.6 green |
Ambient temperature (operation) | -20 °C ... 50 °C | Standards/regulations | IEC 60664
IEC 60664A
DIN VDE 0110
DIN VDE 0160 (in parts) |
Mounting position | any | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
