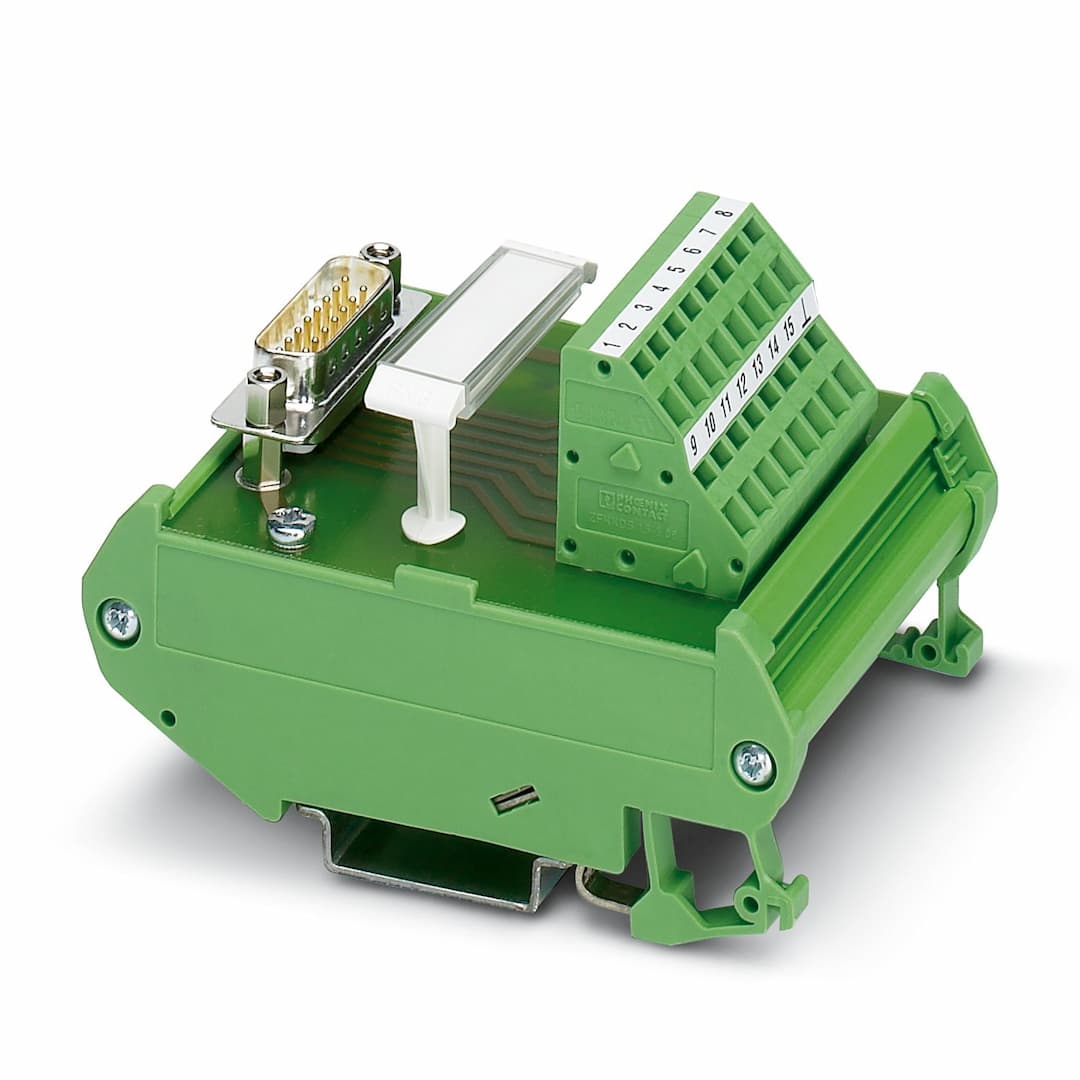

Product Model
FLKMS-D15 SUB/S/ZFKKDS/PE
Selling Points
- 1Spring-cage connection for secure and reliable operation.
- 2Integrated PE contact for connecting PCB and DIN rail.
- 315-position D-SUB miniature pin strip for versatile connectivity.
- 4Functional insulation with overvoltage category II and pollution degree 2.
- 5Compact dimensions: 64 mm width, 90 mm height, and 62 mm depth.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Number of positions | 15 |
Insulation | Functional insulation | Overvoltage category | II |
Pollution degree | 2 | Nominal voltage U | 25 V AC (60 V DC) |
Max. current carrying capacity per branch | 2.5 A | Rated insulation voltage | 125 V |
Rated surge voltage | 1.2 kV (1.2/50 μs) | Connection in acc. with standard | IEC / EN |
Connection method | Spring-cage connection | Number of positions | 16 |
Conductor cross section rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section flexible | 0.2 mm² ... 1.5 mm² |
Conductor cross section AWG | 24 ... 14 | Connection method | D-SUB pin strip |
Number of positions | 15 | Status display | no |
Status display present | No | Width | 64 mm |
Height | 90 mm | Depth | 62 mm |
Color | green (RAL 6021) | Housing insulation material | PVC |
Degree of protection | IP00 | Degree of protection (Installation location) | ≥ IP54 (Installation location) |
Ambient temperature (operation) | -20 °C ... 50 °C | Altitude | ≤ 2000 m |
Standards/regulations | EN IEC 60664-1 | Mounting type | DIN rail mounting |
Mounting position | any | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
