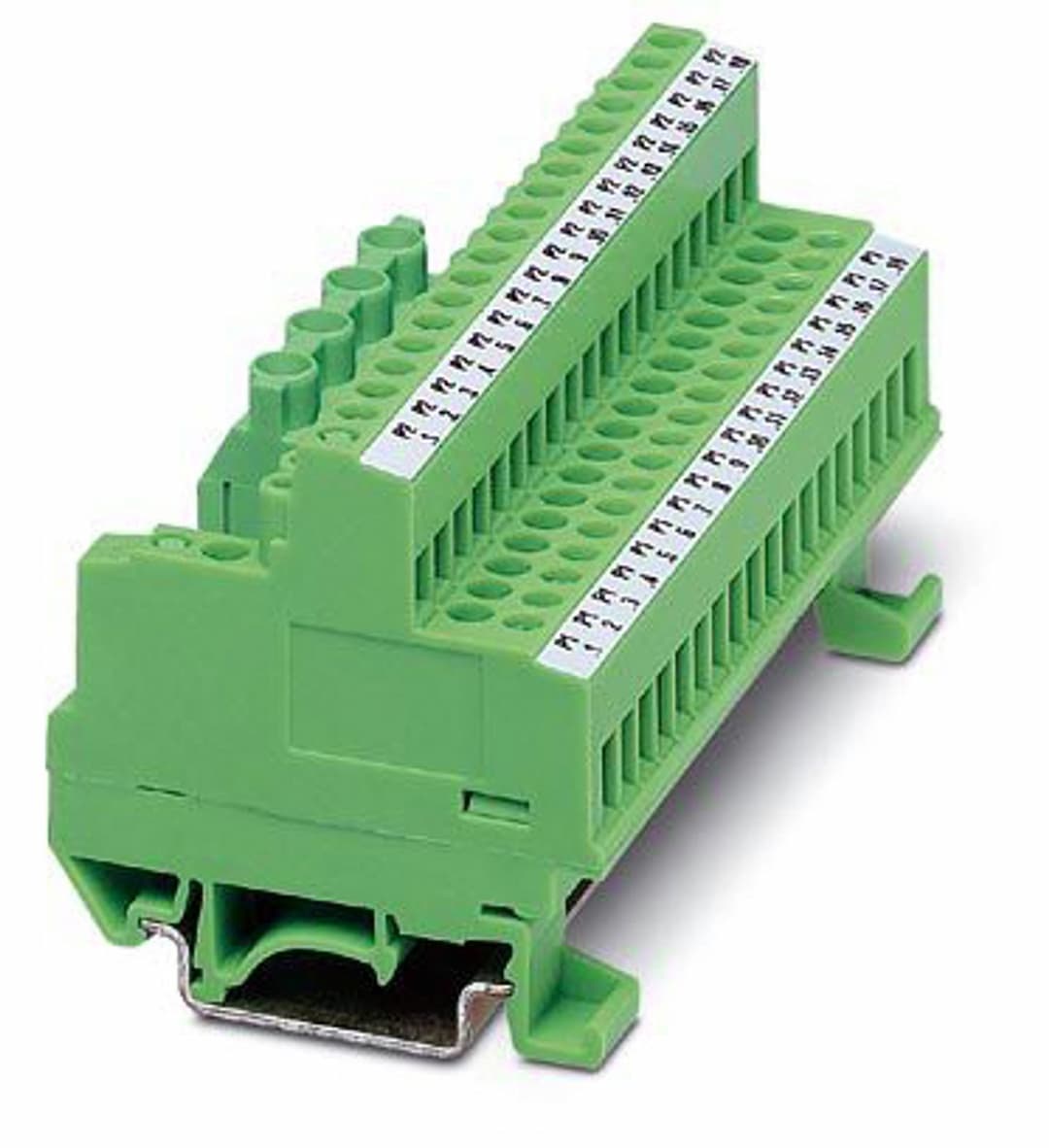

Product Model
FLK-PVB 2/36
Selling Points
- 1High Current Capacity: Handles up to 16 A per potential and 30 A total.
- 2Robust Design: Durable construction with ambient temperature range from -20°C to 50°C.
- 3Versatile Mounting: Compatible with NS 35/7.5 and NS 32 mounting positions.
- 4Compliance Standards: Meets IEC 60664, DIN EN 50178, and overvoltage category III.
- 5Easy Connection: Screw connection with stripping length of 8 mm and M3 screw thread.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type of insulation housing | Polyamide PA non-reinforced | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Product type | Potential distributor | Product family | VARIOFACE |
Potential connections | Per potential(P1, P2) 2 power/18 distributor terminal blocks | Overvoltage category | III |
Pollution degree | 2 | Nominal voltage U | 250 V AC/DC |
Max. current carrying capacity per branch | 16 A | Max. total current of all branches | 30 A (per potential) |
Potential connections | Per potential(P1, P2) 2 power/18 distributor terminal blocks | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Number of connections | 2 | Conductor cross section rigid | 0.2 mm² ... 6 mm² |
Conductor cross section flexible | 0.2 mm² ... 4 mm² | Conductor cross section AWG | 24 ... 10 |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M3 | Number of connections | 36 |
Conductor cross section rigid | 0.2 mm² ... 4 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 | Width | 96 mm |
Height | 51.6 mm | Depth | 51.7 mm |
Color | green (RAL 6021) | Ambient temperature (operation) | -20 °C ... 50 °C |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Standards/regulations | IEC 60664
DIN EN 50178 |
Mounting type | DIN rail mounting | Mounting position | any |
Specifications may be subject to change without notice
