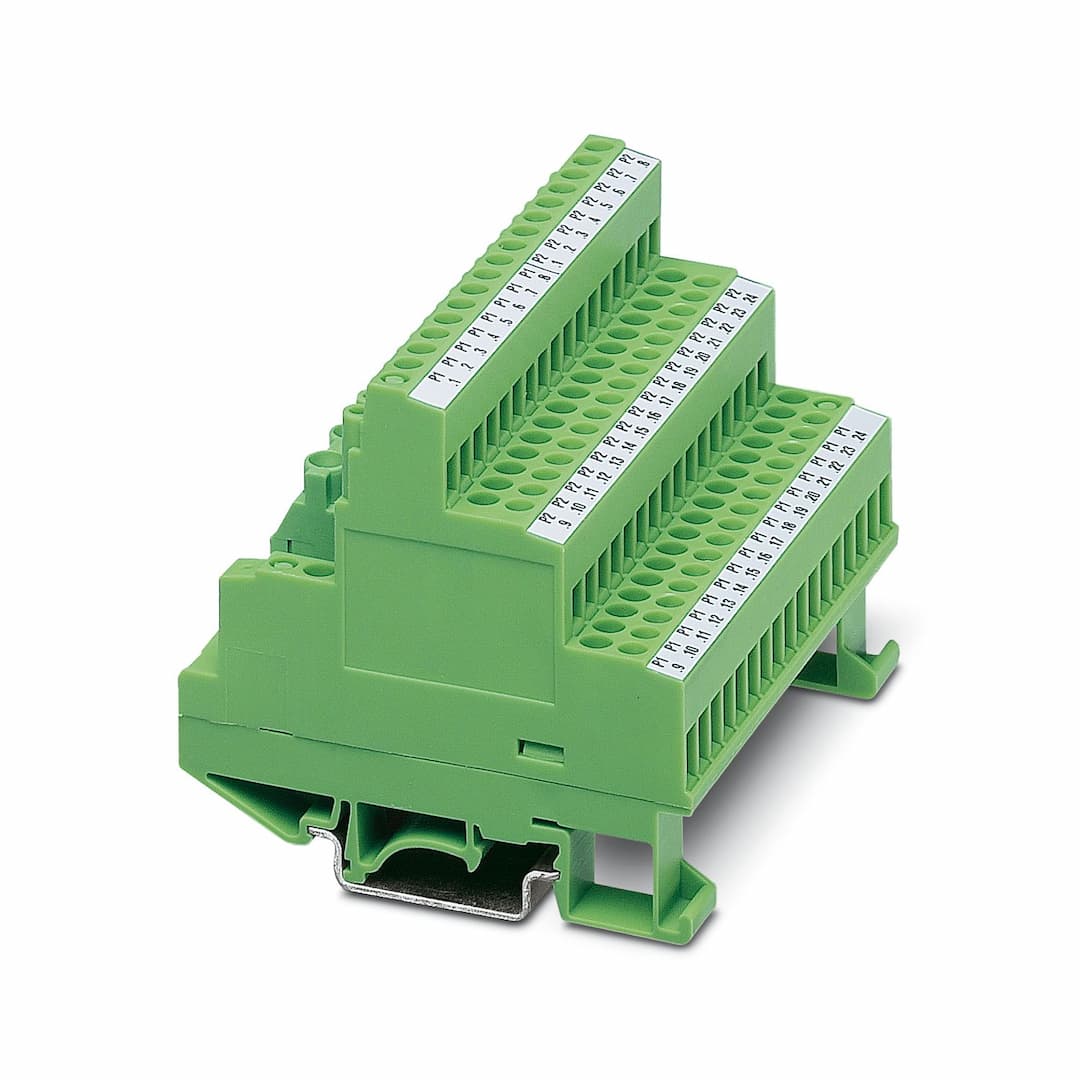

Product Model
FLK-PVB 2/48
Selling Points
- 1Efficient Potential Distribution: Equipped with two equipotential busbars (P1, P2) for reliable potential distribution.
- 2Versatile Mounting Options: Compatible with NS 35/7.5 or NS 32 mounting positions.
- 3High Current Capacity: Supports a maximum total current of 16 A per potential.
- 4Robust Design: Meets IEC 60664 and DIN EN 50178 standards, ensuring high reliability.
- 5Easy Installation: Features screw connections with a stripping length of 8 mm and M3 screw thread.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type of insulation housing | Polyamide PA non-reinforced | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Product type | Potential distributor | Product family | VARIOFACE |
Potential connections | Per potential(P1, P2) 2 power/24 distributor terminal blocks | Overvoltage category | III |
Pollution degree | 2 | Nominal voltage U | 250 V AC/DC |
Max. current carrying capacity per branch | 16 A | Max. total current of all branches | 30 A (per potential) |
Potential connections | Per potential(P1, P2) 2 power/24 distributor terminal blocks | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Number of connections | 2 | Conductor cross section rigid | 0.2 mm² ... 6 mm² |
Conductor cross section flexible | 0.2 mm² ... 4 mm² | Conductor cross section AWG | 24 ... 10 |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
Width | 86 mm | Height | 71 mm |
Depth | 61.5 mm | Color | green (RAL 6021) |
Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards/regulations | IEC 60664
DIN EN 50178 | Mounting type | DIN rail mounting |
Mounting position | any |
Specifications may be subject to change without notice
