Product Model

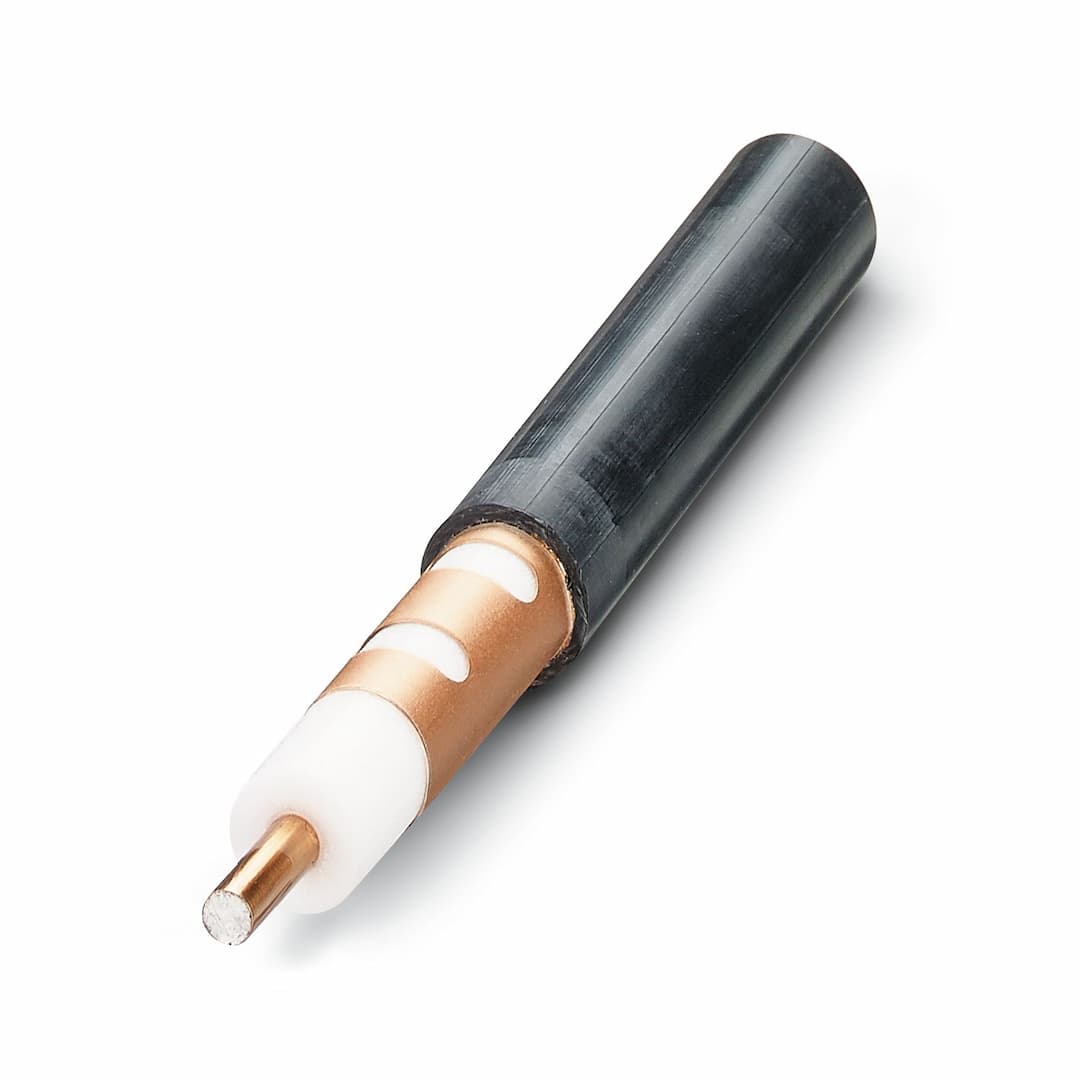

FL LCX CABLE 24 E
Selling Points
- 1Wireless Connectivity: Acts as an antenna, radiating over its entire length for seamless wireless connectivity.
- 2High Frequency Range: Operates at 2.4 GHz frequency, suitable for various wireless communication systems.
- 3Durable Construction: Made with Al Cu wire (inner conductors) and copper film (phase conductors) for enhanced durability.
- 4Versatile Installation: Can be wall-mounted or used in track-guided systems, making it versatile for different applications.
- 5Long-Lasting Performance: Designed with a 50-year use period, ensuring long-lasting performance in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Antenna |
Scope of delivery | When you order several cables, we reserve the right to supply them in one piece and in one container. | Gain | 0 dBi |
Frequency band | 2.4 GHz | Connection method | open end |
Length | 500 m | Diameter | 15.5 mm |
Material | Al Cu wire
Copper film
PE foam | Connecting cable | yes |
Cable weight | 232.00 g/m | Cable resistance | 1.48 Ω/km (DC inner conductor)
2.8 Ω/km (DC phase conductor) |
Smallest bending radius, fixed installation | min. 200 mm (One-time bending) | Ambient temperature (operation) | -40 °C ... 85 °C |
Ambient temperature (storage/transport) | -70 °C ... 85 °C | Ambient temperature (installation) | -25 °C ... 60 °C |
Mounting type | Wall mounting | Assembly note | Recommended clamp distance 0.5 m |
Specifications may be subject to change without notice
