Product Model

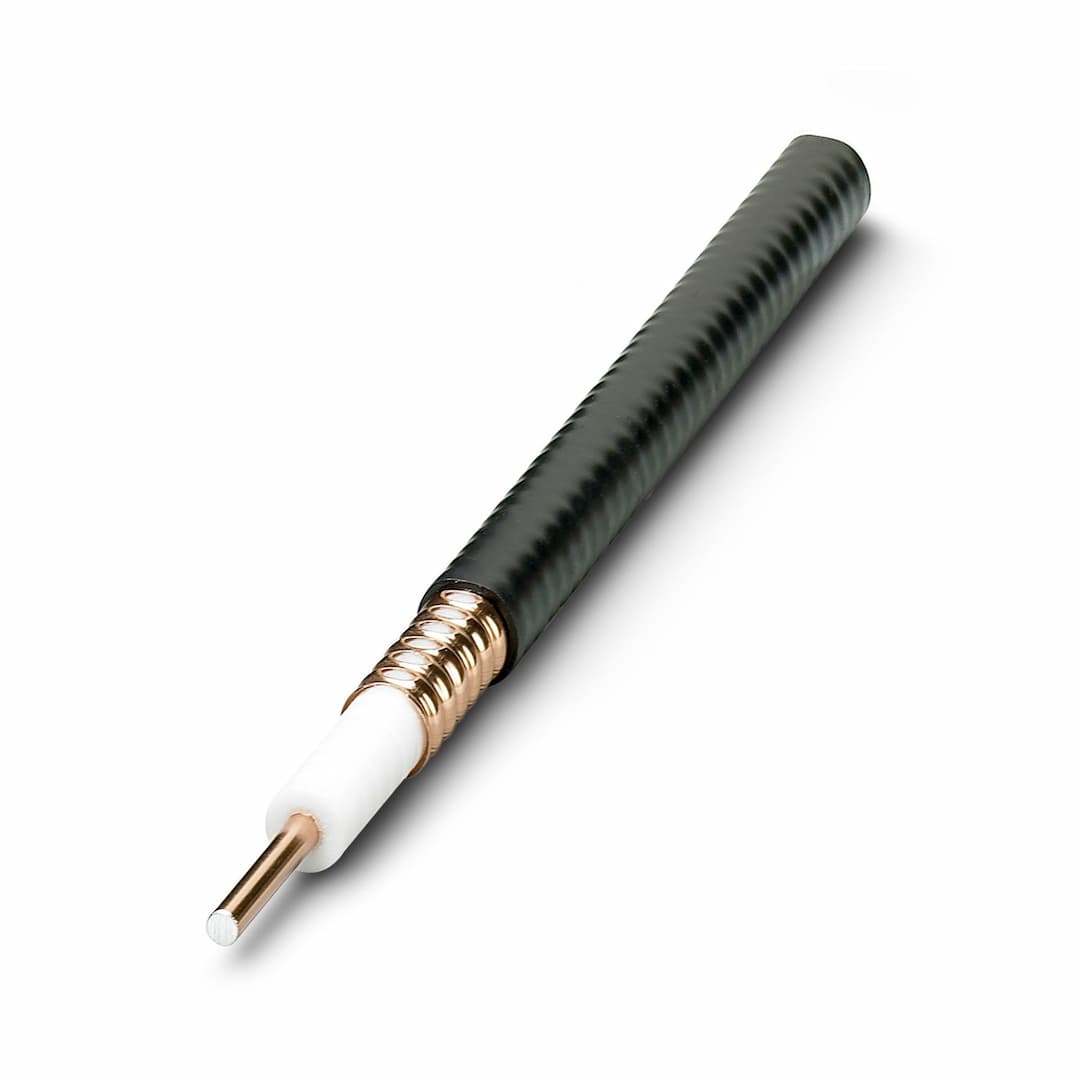

FL LCX CABLE METER
Selling Points
- 1Wireless Antenna Solution: Acts as a "wireless cable" that radiates over its entire length.
- 2Complex Track-Guided Systems: Properly supplies track-guided systems even under complex conditions.
- 3Halogen-Free and Flame Retardant: Compliant with IEC 60754-1 / -2 and IEC 60332-1 / -3.C standards.
- 4Flexible Installation: Suitable for various ambient temperatures (-40 °C to 85 °C) and mounting options.
- 5Technical Precision: Includes recommended clamp distance and special alignment tools for accurate mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Antenna | Gain | 0 dBi |
Frequency band | 2.4 GHz | Frequency range | 2.4 GHz ... 2.6 GHz |
Impedance | 50 Ω | Connection method | open end |
Diameter | 13.7 mm | Material | Al Cu wire
Copper corrugated tube
PE foam
Polyethylene |
Cable weight | 250.00 g/m | Cable resistance | 2.9 Ω/km (DC inner conductor)
4 Ω/km (DC phase conductor) |
Smallest bending radius, fixed installation | min. 32 mm (One-time bending) | Ambient temperature (operation) | -40 °C ... 85 °C |
Ambient temperature (storage/transport) | -70 °C ... 85 °C | Ambient temperature (installation) | -25 °C ... 60 °C |
Standard designation | Halogen-free | Standards/specifications | IEC 60754-1 / -2 |
Standard designation | Flame retardancy | Standards/specifications | IEC 60332-1 / -3.C |
Assembly note | Recommended clamp distance 0.33 m |
Specifications may be subject to change without notice
