Product Model

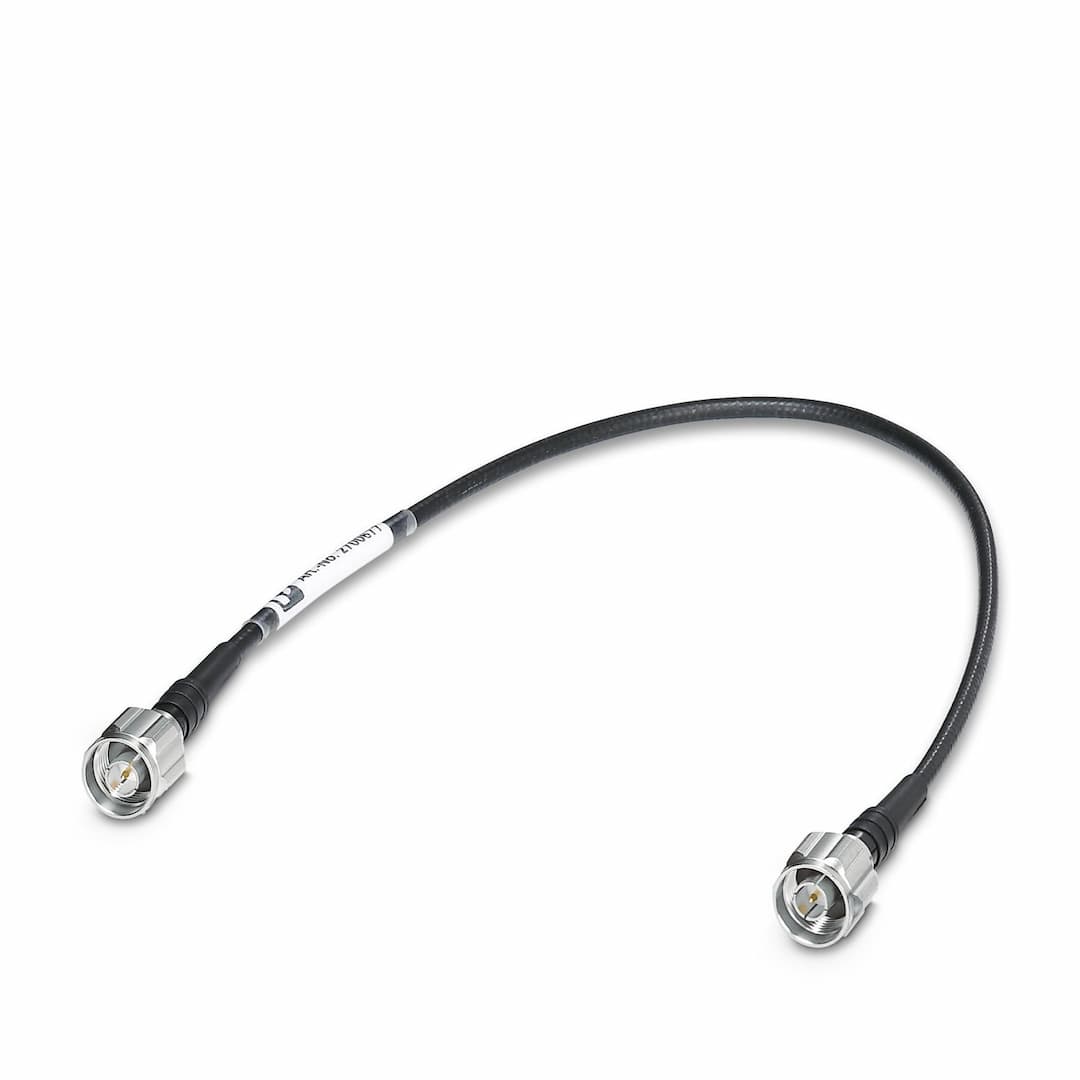

FL LCX PIG-EF142-N-N
Selling Points
- 1Halogen-free and flame-retardant: Ensures safety in various environments.
- 2Flexible inner conductor: Easy installation with minimal effort.
- 3UV and oil-resistant: Durable for outdoor use in harsh conditions.
- 4Low attenuation: Maintains signal strength across 0.9, 2.4, and 5.8 GHz frequencies.
- 5CE-compliant: Meets stringent European safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Coaxial cable |
Frequency range | 0.3 GHz ... 6 GHz | Impedance | 50 Ω |
Connection method | N (male) | Connection method | N (male) |
Outer sheath, material | RADOX®(LSFH) | Cable length | 0.5 m |
Cable type | EF 142 | External cable diameter | 5 mm |
Outer sheath, material | RADOX®(LSFH) | External sheath, color | black |
Bending radius, long-term | 30 mm | 868 / 900 MHz | ~ 0.3 dB (Attenuation of entire cable) |
2.4 GHz | ~ 0.5 dB (Attenuation of entire cable) | 5.8 GHz | ~ 0.8 dB (Attenuation of entire cable) |
Resistance to oil | very good oil and chemical resistance | Ambient temperature (operation) | -40 °C ... 105 °C |
Ambient temperature (storage/transport) | -40 °C ... 105 °C | Ambient temperature (assembly) | -20 °C ... 60 °C |
Resistance to oil | very good oil and chemical resistance | Certificate | CE-compliant |
Resistance to oil | very good oil and chemical resistance | Standard designation | Flame retardancy |
Standards/specifications | DIN EN 60332-1-2
UL 1581 | Standard designation | Halogen-free |
Standards/specifications | IEC 60754 | Standard designation | UV resistance |
Standards/specifications | IEC 60068-2-5 | Assembly note | Outdoors and indoors |
Specifications may be subject to change without notice
