Product Model

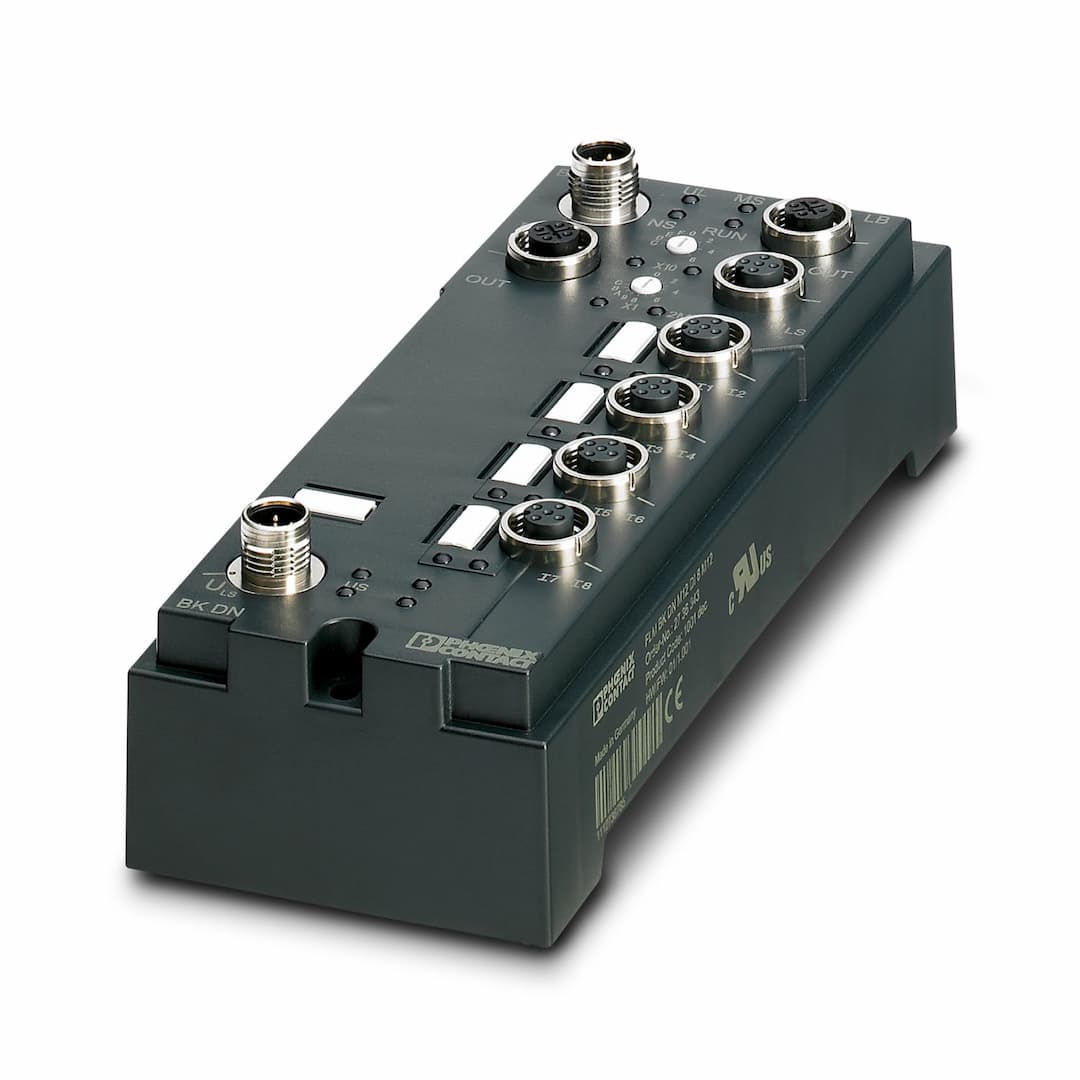

FLM BK DN M12 DI 8 M12
Selling Points
- 1Supports up to 16 devices on a local bus with transmission speeds of 125 kBaud, 250 kBaud, and 500 kBaud.
- 2Features channel-specific diagnostics for efficient troubleshooting and maintenance.
- 3Compliant with IP65/67 protection class and designed for wall mounting.
- 4Equipped with 8 digital inputs for versatile application in industrial settings.
- 5Operates at 24 V DC with a maximum current consumption of 100 mA at 2 Mbaud.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 70 mm | Height | 178 mm |
Depth | 50 mm | Drill hole spacing | 178 mm |
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Color | anthracite |
Connection method | M12 connector, A-coded | Designation connection point | Copper cable |
Number of positions | 5 | Transmission speed | 125 kbps, 250 kbps, 500 kbps (Automatic baud rate detection) |
Transmission physics | Copper cable in acc. with DeviceNet™ specification | Address area assignment | 0 ... 63, can be set |
Designation | Local bus gateway | Connection method | M12 connector, B-coded |
Transmission speed | 500 kbaud/2 Mbaud, can be selected | Max. length of local bus | 20 m |
Max. number of local bus devices | 16 | Number of local bus devices that can be connected | max. 16 |
Number of devices with parameter channel | max. 16 | ID code (dec.) | 1001 |
Register length | 8 bit | Input name | Digital inputs |
Description of the input | IEC 61131-2 type 1 | Number of inputs | 8 (double-occupancy) |
Connection method | M12 connector | Connection technology | 2-, 3-, 4-conductor |
Input voltage | 24 V DC | Input voltage range "0" signal | -30 V DC ... 5 V DC |
Input voltage range "1" signal | 13 V DC ... 30 V DC | Nominal input voltage U | 24 V DC |
Filter time | 3 ms | Protective circuit | Reverse polarity protection |
Product type | I/O component | Product family | Fieldline |
Type | modular | No. of channels | 8 |
Voltage supply U | 24 V DC | Power supply at U | max. 4 A |
Current consumption from U | max. 100 mA (At 2 Mbaud)
typ. 75 mA (At 2 Mbaud)
max. 100 mA (At 500 kBaud)
typ. 65 mA (At 500 kBaud) | Voltage supply U | 24 V DC |
Power supply at U | max. 4 A | Current consumption from U | typ. 10 mA (plus power supply for sensors)
max. 700 mA |
Connection method | M12 connector | Designation | U |
Supply voltage | 24 V DC | Supply voltage range | 18 V DC ... 30 V DC (including ripple) |
Test voltage: To I/O | 500 V AC | Connection method | M12 connector |
Ambient temperature (operation) | -25 °C ... 60 °C | Degree of protection | IP65/IP67 |
Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (storage/transport) | 95 % |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | Wall mounting, optionally on mounting panel
Wall mounting |
Specifications may be subject to change without notice
