Product Model

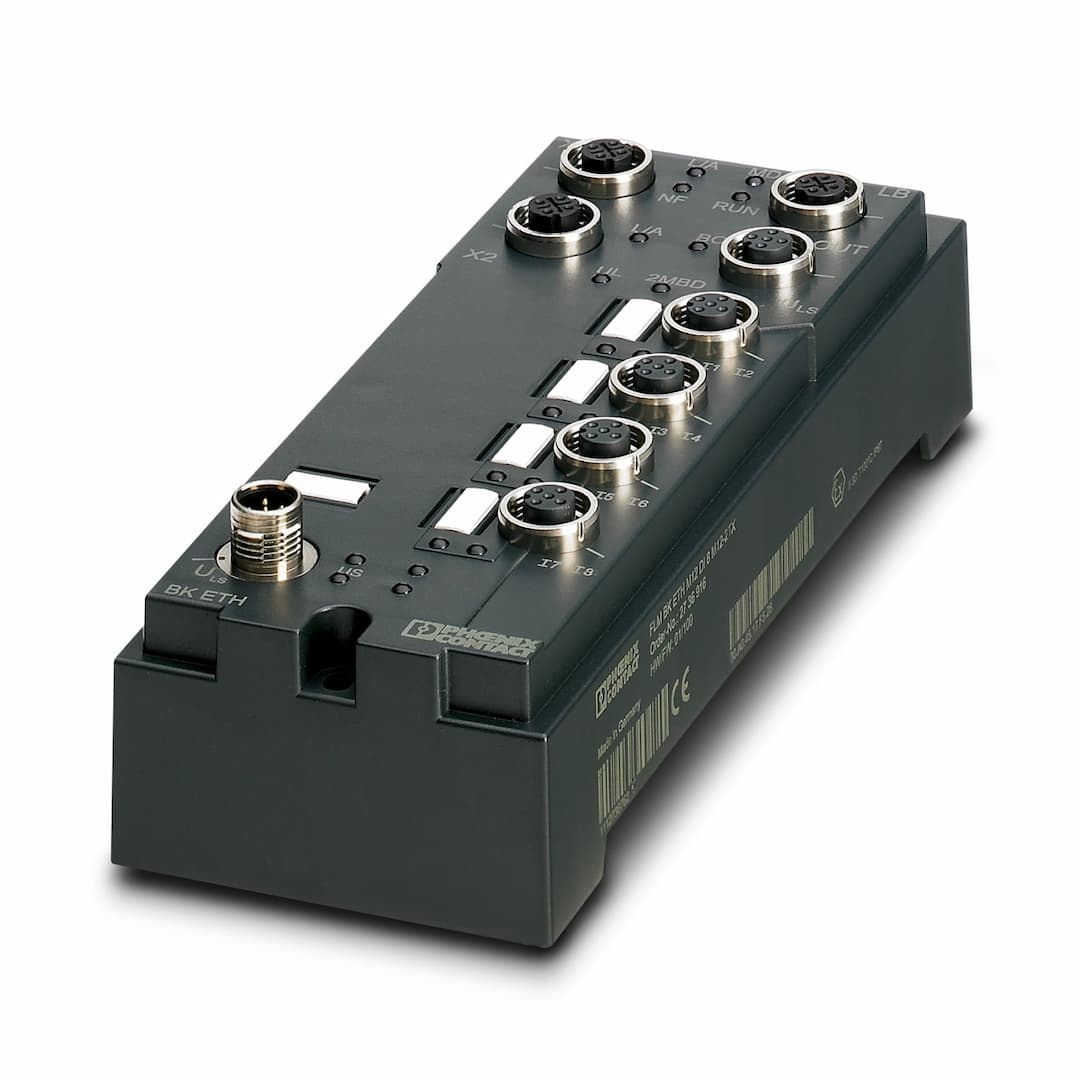

FLM BK ETH M12 DI 8 M12-2TX
Selling Points
- 1Supports 10/100 Mbps auto negotiation for seamless Ethernet integration.
- 2Equipped with 8 digital inputs for versatile signal handling.
- 3Includes short-circuit and overload protection for enhanced plant availability.
- 4Selectable transmission speeds from 500 kbaud to 2 Mbaud for adaptable applications.
- 5Compact dimensions (70 mm x 178 mm x 50 mm) with IP65/IP67 protection for reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 70 mm | Height | 178 mm |
Depth | 50 mm | Drill hole spacing | 178 mm |
Color | anthracite | Connection method | M12 connectors, D-coded |
Designation connection point | Copper cable | Number of positions | 4 |
Transmission speed | 10/100 Mbps (auto negotiation) | Designation | Local bus gateway |
Connection method | M12 connector, B-coded | Transmission speed | 500 kbaud/2 Mbaud, can be selected |
Max. length of local bus | 20 m | Max. number of local bus devices | 16 |
Number of local bus devices that can be connected | max. 16 | Number of devices with parameter channel | max. 16 |
Process data channel | 8 bit | Input address area | 8 bit |
Output address area | 0 bit | Register length | 8 bit |
Input name | Digital inputs | Description of the input | IEC 61131-2 type 1 |
Number of inputs | 8 (EN 61131-2 type 1) | Connection method | M12 connector |
Connection technology | 2-, 3-, 4-conductor | Input voltage | 24 V DC |
Input voltage range "0" signal | -30 V DC ... 5 V DC | Input voltage range "1" signal | 13 V DC ... 30 V DC |
Nominal input voltage U | 24 V DC | Filter time | 3 ms |
Protective circuit | Short-circuit protection, overload protection of the sensor supply; Reverse polarity protection | Product type | I/O component |
Product family | Fieldline | Type | modular |
No. of channels | 8 | Voltage supply U | 24 V DC |
Power supply at U | max. 4 A | Current consumption from U | max. 118 mA (At 2 Mbaud)
typ. 118 mA (At 2 Mbaud)
max. 60 mA (At 500 kBaud)
typ. 60 mA (At 500 kBaud) |
Voltage supply U | 24 V DC | Power supply at U | max. 4 A |
Current consumption from U | typ. 5 mA (plus power supply for sensors)
max. 600 mA | Connection method | M12 connector |
Designation | U | Supply voltage | 24 V DC |
Supply voltage range | 18 V DC ... 30 V DC (including ripple) | Supply current | < 100 mA |
Test voltage: To I/O | 500 V DC | Connection method | M12 connector |
Ambient temperature (operation) | -25 °C ... 60 °C | Degree of protection | IP65/IP67 |
Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (storage/transport) | 95 % |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | Wall mounting, optionally on mounting panel
Wall mounting |
Specifications may be subject to change without notice
