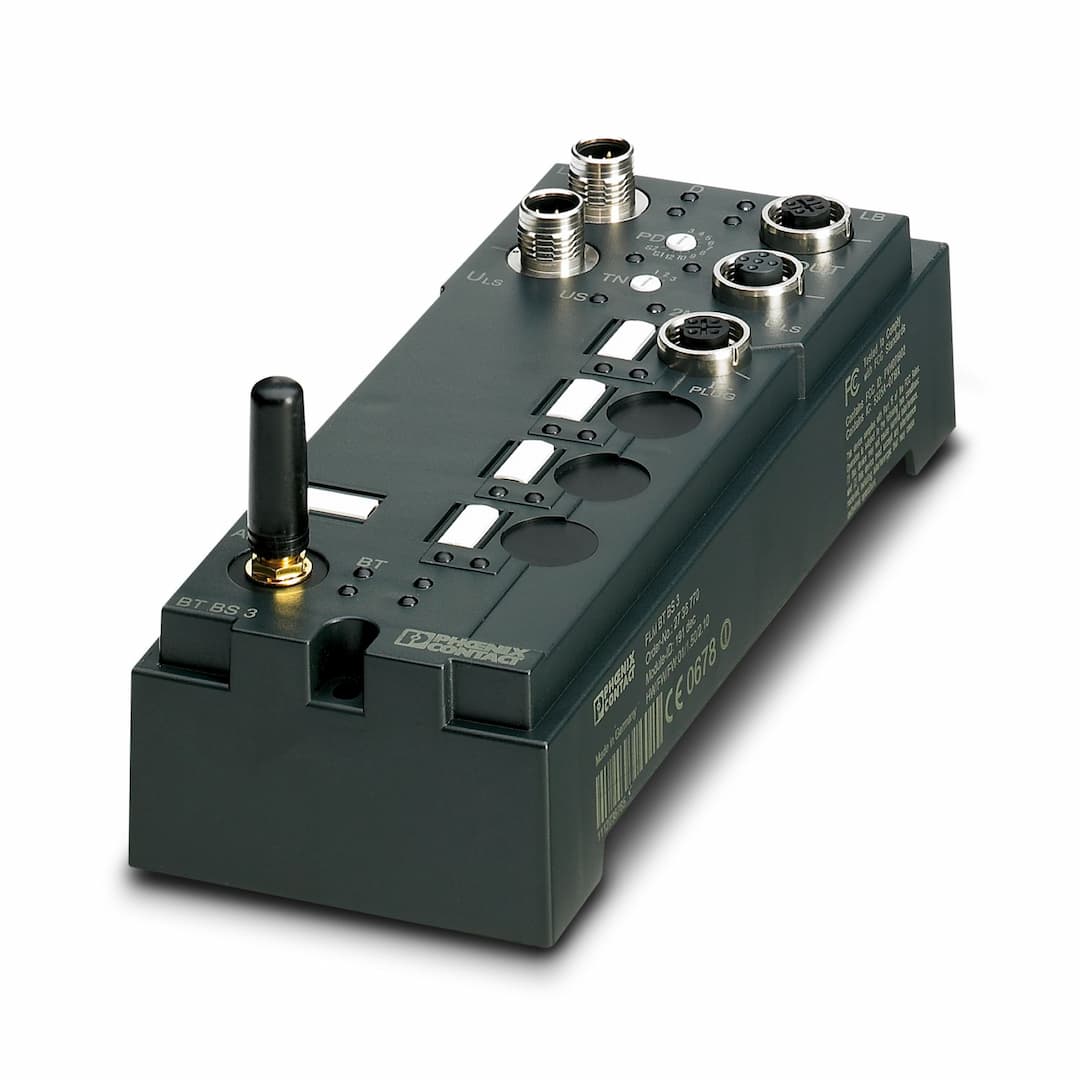

Product Model
FLM BT BS 3
Selling Points
- 1Wireless IO Base Station: Supports up to three Wireless IO devices.
- 2Bluetooth V1.2: Ensures reliable wireless communication.
- 32.4 GHz Frequency Band: Operates within the ISM bandwidth for optimal performance.
- 4Rugged and Reliable: Designed for extreme environments with a long MTBF.
- 5Easy Installation: Quick and easy startup with minimal setup required.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Wireless module |
Product family | Fieldline | Type | modular |
MTBF | 554 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
185 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day)) | ID code (dec.) | 191 |
ID code (hex) | BF | Length code (hex) | 0C |
Process data channel | 24 Byte | Input address area | max. 24 Byte |
Output address area | max. 24 Byte | Register length | 24 Byte |
Required parameter data | 24 Byte | Maximum power dissipation for nominal condition | 2.4 W |
Connection method | M12 circular connector | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC (including ripple) | Supply current | < 100 mA |
Connection method | M12 connector, B-coded | Transmission speed | 500 kBaud / 2 MBaud (data rate can be changed via pin 5 (voltage supply ULS)) |
Transmission physics | Copper | Address area assignment | 3 ... 12 words, variable, depending on type and number of wireless modules connected |
Number | 1 | Connection method | SMA (male) |
Wireless licenses | Europe, additional countries in the e-shop | Country support | Australia (Special rule: Please contact the Product Manager)
Canada
Russia (Special rule: Please contact the Product Manager)
Switzerland
Singapore
Turkey
USA |
Designation | Bluetooth | Antenna connection method | SMA (female) |
Frequency range | 2.402 GHz ... 2.48 GHz (ISM bandwidth) | Wireless standard | Bluetooth 1.2 |
Transmission power | 8 dBm (can be set between 0 dBm and 14 dBm, in 4 dB increments) | Receiver sensitivity | -88.00 dBm |
Wireless modules that can be connected | up to 3 (2736767 FLM BT DIO 8/8 M12, 2693208 FLM BT DI 16 M12, 2884282 ILB BT ADIO 2/2/16/16) | Width | 70.5 mm |
Height | 178.5 mm | Depth | 50 mm |
Drill hole spacing | 168 mm | Color (Housing) | anthracite grey (RAL 7016) |
Drill hole spacing | 168 mm | Degree of protection | IP65 |
Ambient temperature (operation) | -25 °C ... 60 °C | Air pressure (operation) | 795 hPa ... 1080 hPa (up to 2000 m above sea level) |
Permissible humidity (operation) | 95 % | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | Wall mounting, optionally on mounting panel
Wall mounting | Assembly note | OMNI antenna is included |
Specifications may be subject to change without notice
