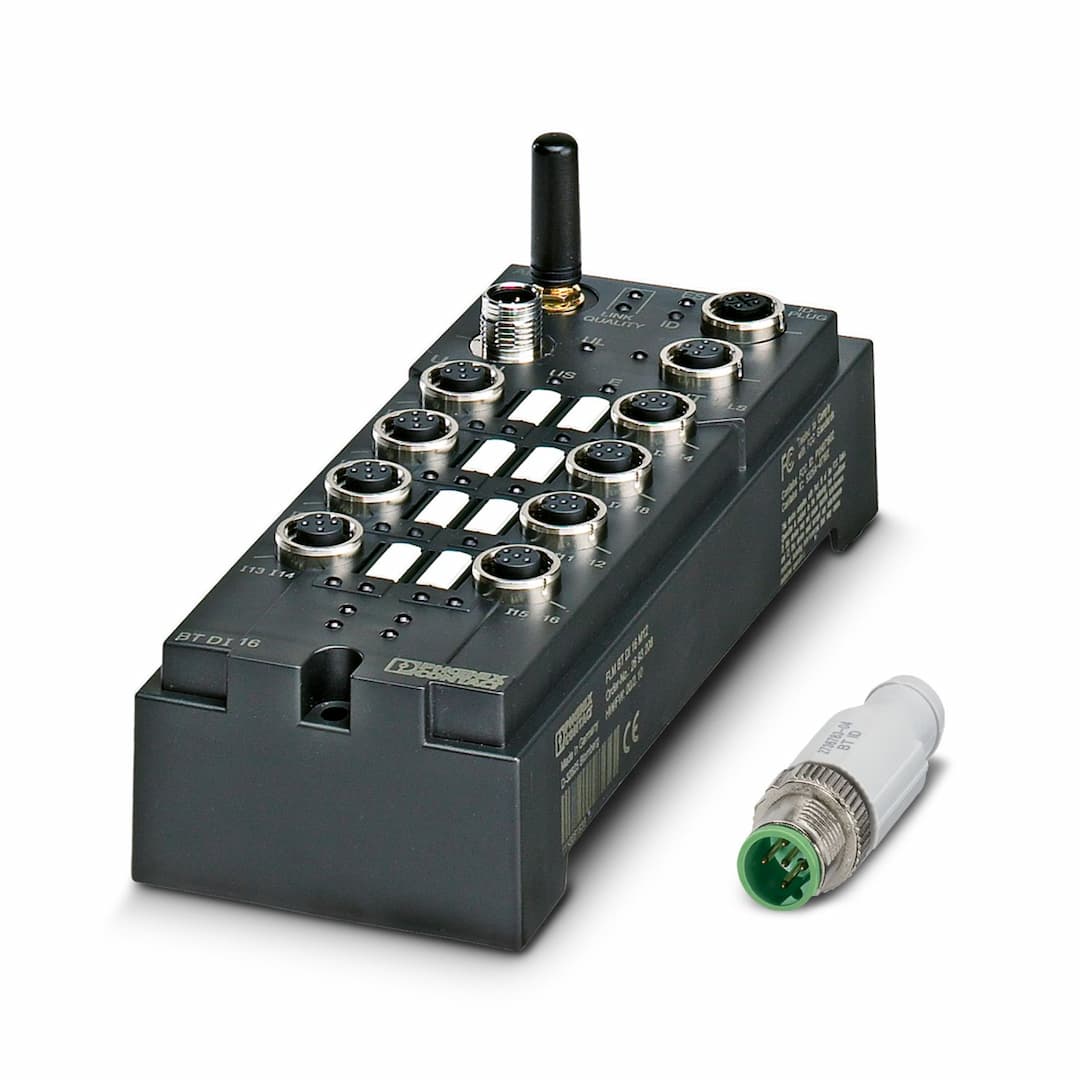

Product Model
FLM BT DIO 8/8 M12
Selling Points
- 1Wireless Connectivity: Bluetooth 1.2 for easy data transmission.
- 2Robust Design: IP65 protection against dust and water.
- 3High-Current Outputs: Each output supports up to 500 mA.
- 4Versatile Connections: M12 connectors for sensors and actuators.
- 5Diagnostic Indicators: Real-time status and link quality monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Wireless module |
Product family | Fieldline | Type | modular |
Set comprises | 2736783 FLM BT ID-PLUG M12 | MTBF | 757 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
216 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day)) |
Number | 1 | Assembly note | Permanently installed |
Required parameter data | 4 Byte | Maximum power dissipation for nominal condition | 2.4 W |
Connection method | M12 circular connector | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC (including ripple) | Supply current | < 100 mA |
Input name | Digital inputs | Description of the input | IEC 61131-2 type 1 |
Number of inputs | 8 (double-occupancy) | Connection method | M12 connector |
Connection technology | 2-, 3-conductor | Input voltage range "0" signal | < 5 V |
Input voltage range "1" signal | > 11 V | Filter time | 500 µs |
Output name | Digital outputs | Connection method | M12 connector |
Connection technology | 2-, 3-conductor | Number of outputs | 8 (double-occupancy) |
Protective circuit | Short-circuit protection, overload protection, protected against reverse voltages | Maximum output current per channel | 500 mA |
Number | 1 | Connection method | SMA (male) |
Gain | 0 dBi (Antenna gain) | Wireless licenses | Europe, additional countries in the e-shop |
Country support | Australia (Special rule: Please contact the Product Manager)
Canada
Russia (Special rule: Please contact the Product Manager)
Switzerland
Singapore
Turkey
USA | Designation | Bluetooth |
Antenna connection method | SMA (female) | Frequency range | 2.402 GHz ... 2.48 GHz (ISM bandwidth) |
Wireless standard | Bluetooth 1.2 | Transmission power | 8 dBm (with automatic control) |
Receiver sensitivity | -88.00 dBm | Wireless modules that can be connected | 1 (FLM BT BS 3, FL BT MOD IO AP) |
Width | 70.5 mm | Height | 178.5 mm |
Depth | 50 mm | Drill hole spacing | 168 mm |
Color (Housing) | anthracite grey (RAL 7016) | Drill hole spacing | 168 mm |
Degree of protection | IP65 | Ambient temperature (operation) | -25 °C ... 60 °C |
Air pressure (operation) | 795 hPa ... 1080 hPa (up to 2000 m above sea level) | Permissible humidity (operation) | 95 % |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | Wall mounting, optionally on mounting panel
Wall mounting |
Assembly note | OMNI antenna is included |
Specifications may be subject to change without notice
