Product Model

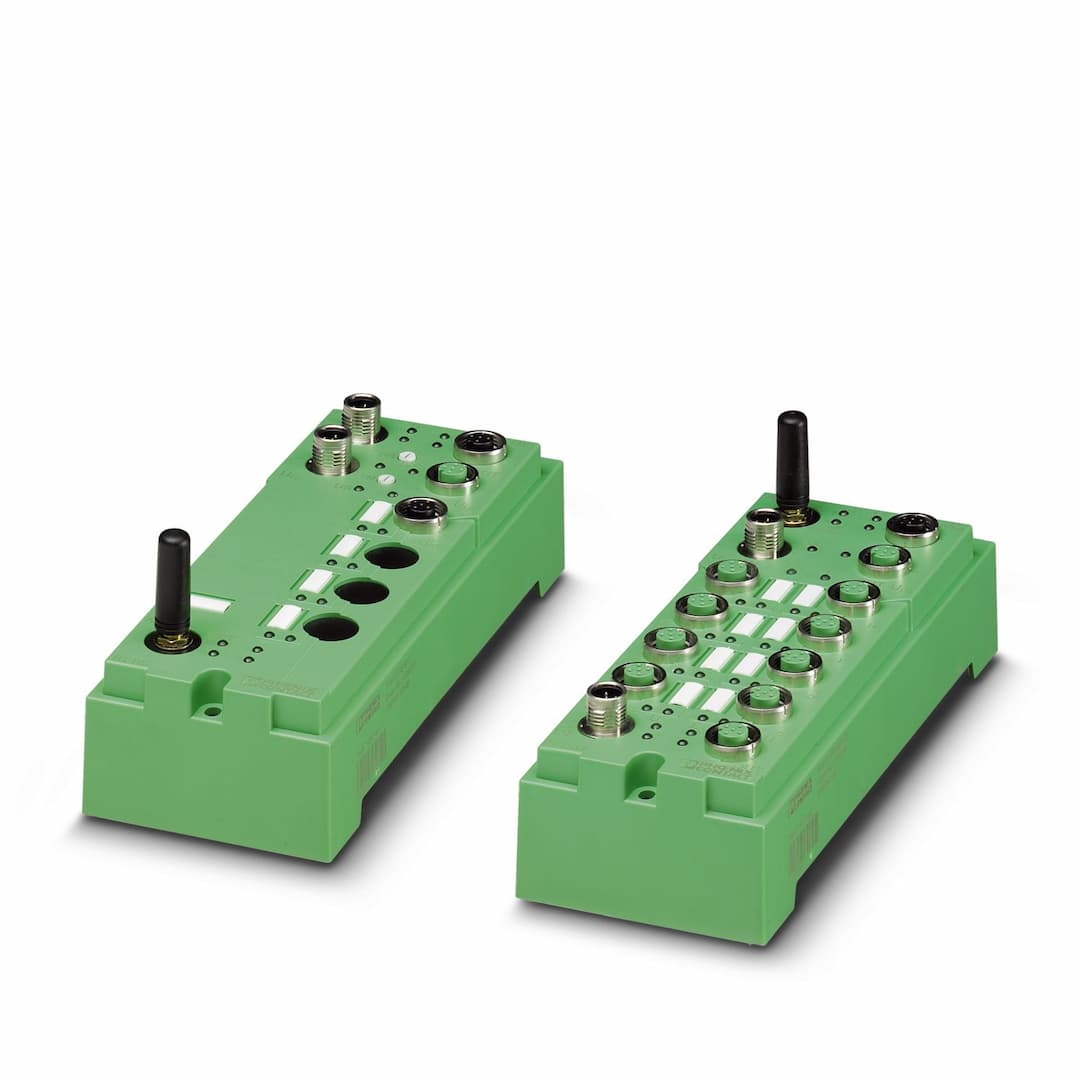

FLM BT DIO 8/8 M12-P2P-SET
Selling Points
- 1Wireless Connectivity: Bluetooth 1.2 with 8 dBm transmission power for reliable wireless communication.
- 2Modular Design: Fieldline Modular design with M12 connectors for easy integration and scalability.
- 3Robust Protection: IP65 rating for protection against dust and water, ensuring durability in harsh environments.
- 4High-Speed Data Transfer: 10/100 Mbps transmission speed via copper cable for fast data exchange.
- 5Advanced Safety Features: Short-circuit protection, overload protection, and protection against reverse voltages for safe operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type | modular | Required parameter data | 4 Byte |
Connection method | M12 circular connector | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC (including ripple) | Supply current | < 100 mA |
Input name | Digital inputs | Description of the input | IEC 61131-2 type 1 |
Number of inputs | 8 (double-occupancy) | Connection method | M12 connector |
Connection technology | 2-, 3-conductor | Filter time | 500 µs |
Output name | Digital outputs | Connection method | M12 connector |
Connection technology | 2-, 3-conductor | Number of outputs | 8 (double-occupancy) |
Protective circuit | Short-circuit protection, overload protection, protected against reverse voltages | Maximum output current per channel | 500 mA |
Connection method | M12 connectors, D-coded | Designation connection point | Copper cable |
Number of positions | 4 | Transmission speed | 10/100 Mbps (auto negotiation) |
Transmission physics | Copper | Address area assignment | 1 word |
Designation | Local bus gateway | Connection method | M12 connector, B-coded |
Transmission speed | 500 kbaud/2 Mbaud, can be selected | Max. length of local bus | 20 m |
Max. number of local bus devices | 16 | Number | 1 |
Connection method | SMA (male) | Wireless licenses | Europe, additional countries in the e-shop |
Country support | Australia (Special rule: Please contact the Product Manager)
Belgium
Bulgaria
Denmark
Germany
Estonia
Finland
France
Greece
Great Britain
Ireland
Iceland
Israel
Italy
Canada
Latvia
Liechtenstein
Lithuania
Luxembourg
Malta
Netherlands
Norway
Austria
Poland
Portugal
Romania
Russia (Special rule: Please contact the Product Manager)
Sweden
Switzerland
Singapore
Slovakia
Slovenia
Spain
Czech Republic
Turkey
Hungary
USA
Cyprus (rep.) | Designation | Bluetooth |
Antenna connection method | SMA (female) | Frequency range | 2.402 GHz ... 2.48 GHz (ISM bandwidth) |
Wireless standard | Bluetooth 1.2 | Transmission power | 8 dBm (6.3 mW, controlled automatically) |
Wireless modules that can be connected | 1 (Permanently paired to base station) | Width | 70.5 mm |
Height | 178.5 mm | Depth | 50 mm |
Drill hole spacing | 168 mm | Drill hole spacing | 168 mm |
Degree of protection | IP65 | Ambient temperature (operation) | -25 °C ... 60 °C |
Air pressure (operation) | 795 hPa ... 1080 hPa (up to 2000 m above sea level) | Permissible humidity (operation) | 95 % |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | Wall mounting, optionally on mounting panel
Wall mounting |
Assembly note | OMNI antenna is included |
Specifications may be subject to change without notice
