Product Model

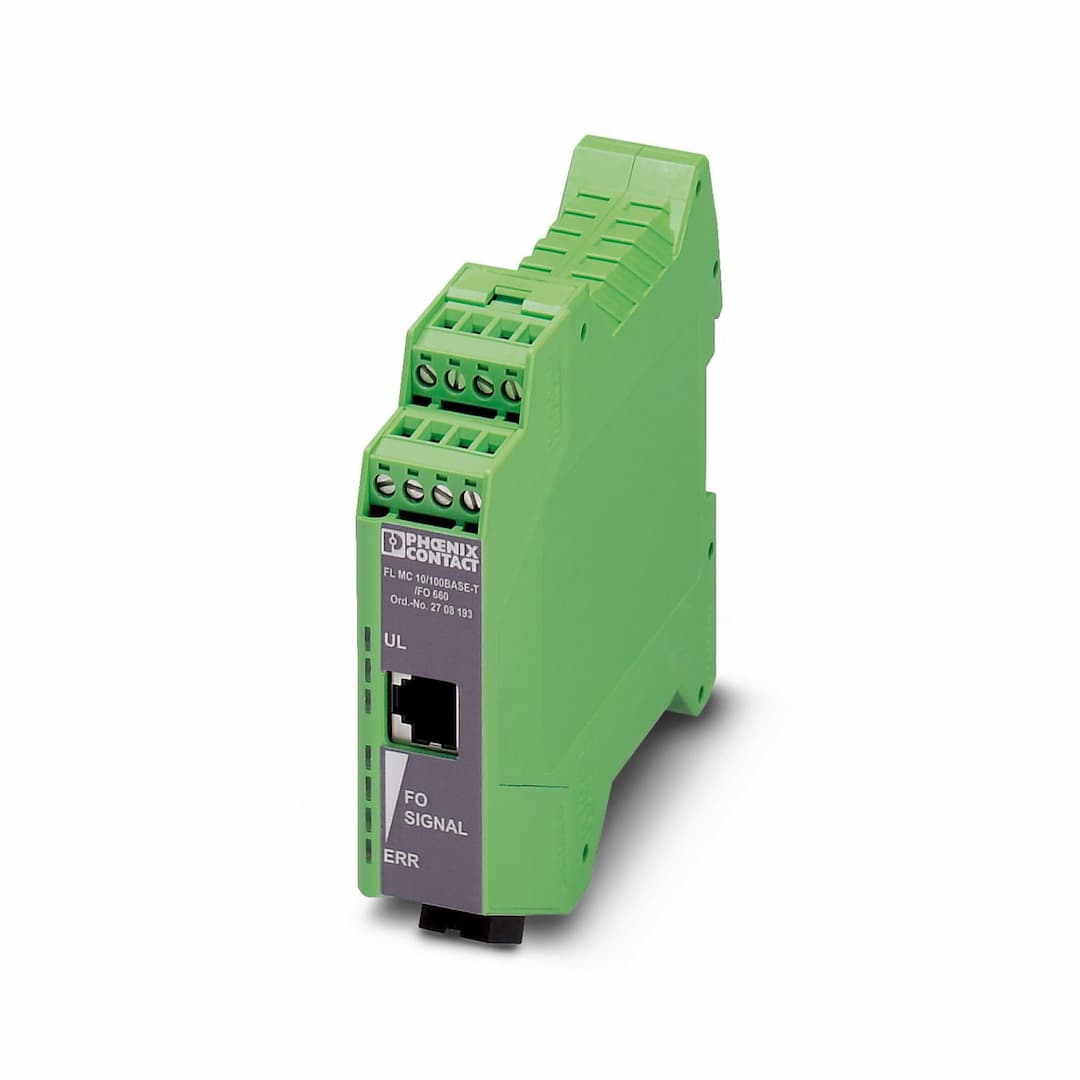

FL MC 10/100BASE-T/FO-660
Selling Points
- 1Converts 10/100Base-T to polymer and HCS fiber.
- 2Supports 660 nm wavelength for optimal transmission.
- 3Includes 24 V DC power supply with redundancy options.
- 4Features built-in switch for MDI-/MDI-X switchover.
- 5Offers up to 100 Mbps transmission rate with 100 m transmission length.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Media converter |
MTTF | 885 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
446 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
202 Years (SN 29500 standard, temperature 40°C, operating cycle 100%) | MTBF | 564 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
136 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day)) |
Electrical isolation | VCC // Ethernet | Maximum power dissipation for nominal condition | 2.4 W |
Test voltage data interface/power supply | 1.5 kV
1500 V | Supply voltage range | 18 V DC ... 30 V DC (via pluggable COMBICON screw terminal block)
23 V DC ... 25 V DC (as an alternative or redundant, via backplane bus contact and system current supply) |
Nominal supply voltage | 24 V DC | Typical current consumption | ≤ 100 mA (24 V DC) |
Protective circuit | Reverse polarity protection | Status and diagnostic indicators | UL (communications power, green) |
Output name | Relay output | Number of outputs | 2 |
Contact switching type | N/O contact | Maximum switching voltage | 60 V AC/DC |
Max. switching current | 1 A | Connection method | Plug-in screw terminal block (COMBICON), redundancy possible |
Tightening torque | 0.56 Nm ... 0.79 Nm | Signal | Ethernet
PROFINET |
Transmit capacity, minimum | min. -8 dBm (980/1000 µm, static)
min. -19 dBm (200/230 µm, static) | Transmit capacity, maximum | max. -2 dBm (980/1000 µm, static)
max. -11 dBm (200/230 µm, static) |
Transmission length incl. 3 dB system reserve | 70 m (Polymer fiber with F-P 980/1000 230 dB/km at 10 Mbps)
300 m (PCF fiber with F-K 200/230 8 dB/km at 10 Mbps)
50 m (Polymer fiber with F-P 980/1000 230 dB/km at 100 Mbps)
100 m (PCF fiber with F-K 200/230 8 dB/km at 100 Mbps)
300 m (HCS GI fiber with F-GK 200/230 at 100 Mbps)
400 m (HCS GI fiber with F-GK 200/230 at 10 Mbps) | Connection method | SC-RJ |
Wavelength | 660 nm | Minimum receiver sensitivity | min. -23 dBm (980/1000 µm, static)
min. -26.8 dBm (200/230 µm, static) |
Transmission medium | Polymer fiber
PCF fiber | Transmission speed | 10/100 Mbps |
Connection method | RJ45 jack, shielded | No. of channels | 1 |
Transmission length | 100 m (shielded twisted pair) | Transmission medium | Copper |
Signal LEDs | Activity (yellow), link status (green, UL flashing), 100 Mbps (green) | Auto-negotiation modes | optionally transparent via TP and FO (default) or locally on TP |
Link through | Link down is automatically forwarded to the second connection | MDI-/MDI-X switchover | Built-in switch for line (1:1) and crossover connection |
Width | 22.5 mm | Height | 99 mm |
Depth | 114.5 mm | Color (Housing) | green (RAL 6021) |
Material (Housing) | PA V0 | Fiber types | 980/1000 µm
200/230 µm
Polymer fiber
PCF fiber |
Degree of protection | IP20 | Ambient temperature (operation) | -20 °C ... 60 °C |
Ambient temperature (storage/transport) | -30 °C ... 70 °C | Altitude | ≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation) |
Permissible humidity (operation) | 10 % ... 95 % (non-condensing) | Certificate | CE-compliant |
Identification | II 3 G Ex nA nC IIC T4 Gc X | Note | Please follow the special installation instructions in the documentation! |
Identification | 508 Recognized | Identification | ISA-S71.04-1985 G3 Harsh Group A |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Noise immunity | EN 61000-6-2:2005 |
Noise emission | EN 50081-2 | Standards/regulations | EN 61000-4-2 |
Contact discharge | ± 6 kV (Test Level 3) | Discharge in air | ± 8 kV (Test Level 3) |
Comments | Criterion B | Standards/regulations | EN 61000-4-3 |
Frequency range | 80 MHz ... 3 GHz (Test Level 3) | Field intensity | 10 V/m |
Comments | Criterion A | Standards/regulations | EN 61000-4-4 |
Input | ± 4 kV (Test Level 3) | Signal | ± 2 kV (Test Level 3) |
Comments | Criterion B | Standards/regulations | EN 61000-4-5 |
Input | ± 0.5 kV (DC supply) | Signal | ± 2 kV |
Comments | Criterion B | Standards/regulations | EN 61000-4-6 |
Frequency range | 0.15 MHz ... 80 MHz | Comments | Criterion A |
Voltage | 10 V | Standards/regulations | EN 55011 |
Comments | Class A, industrial applications | Free from substances that could impair the application of coating | in accordance with VW-AUDI-Seat central standard P-VW 3.10.7 57 65 0 |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
