Product Model

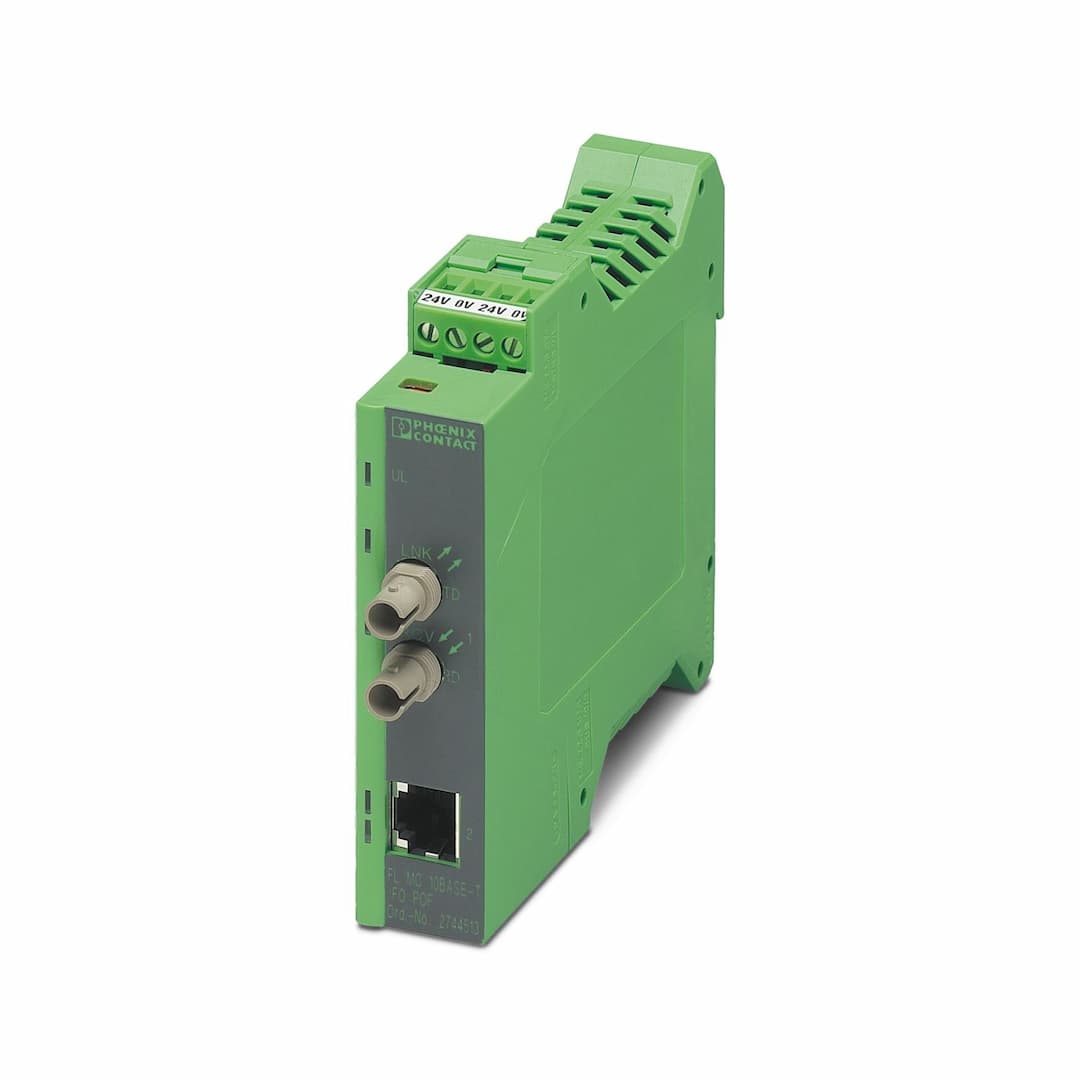

FL MC 10BASE-T/FO G850
Selling Points
- 1Converts 10/100Base-T(X) Ethernet to multimode glass fiber for long-distance transmission.
- 2Supports transmission distances up to 2800 meters using multimode glass fiber.
- 3Features high noise immunity and electromagnetic compatibility.
- 4Includes auto-negotiation modes for transparent operation via TP and FO.
- 5Equipped with built-in switch for line (1:1) and crossover connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Media converter | Electrical isolation | 10Base-T// supply |
Test voltage data interface/power supply | 500 V | Nominal supply voltage | 24 V DC ±20 % |
Max. current consumption | 55 mA | Connection method | COMBICON plug-in screw terminal block |
Signal | Ethernet | Transmit capacity, minimum | min. -22 dBm ((50/125 µm) dynamic in link mode (average))
min. -18.2 dBm ((62,5/125 µm) dynamic in link mode (average))
min. -19 dBm (50/125 µm, static)
min. -15.2 dBm (62,5/125 µm, static) |
Transmit capacity, maximum | max. -15.8 dBm ((50/125 µm) dynamic in link mode (average))
max. -12 dBm ((62,5/125 µm) dynamic in link mode (average))
max. -12.8 dBm (50/125 µm, static)
max. -9 dBm (62,5/125 µm, static) | Transmission length incl. 3 dB system reserve | min. 3000 m (with F-G 50/125 2.5 dB/km)
min. 3800 m (with F-G 62,5/125 3.0 dB/km)
min. 3000 m (with F-G 62,5/125 3,75 dB/km) |
Connection method | B-FOC (ST®) | Wavelength | 850 nm |
Minimum receiver sensitivity | min. -32.5 dBm (dynamic in link mode (average))
min. -29.5 dBm (static) | Transmission medium | Polymer fiber |
Serial transmission speed | 10 Mbps | Connection method | RJ45 jack, shielded |
Transmission medium | Copper | Signal LEDs | Activity, link status |
Width | 22.5 mm | Height | 99 mm |
Depth | 127 mm | Color (Housing) | green (RAL 6021) |
Material (Housing) | PA V0 | Fiber types | 50/125 µm
62.5/125 µm
Fiberglass |
Degree of protection | IP20 | Ambient temperature (operation) | 0 °C ... 55 °C |
Electromagnetic compatibility | Conformance with EMC directive 89/336/EC | Noise immunity | EN 61000-6-2:2005 |
Noise emission | EN 50081-2 | Electrical isolation | 10Base-T// supply |
Mounting type | DIN rail mounting |
