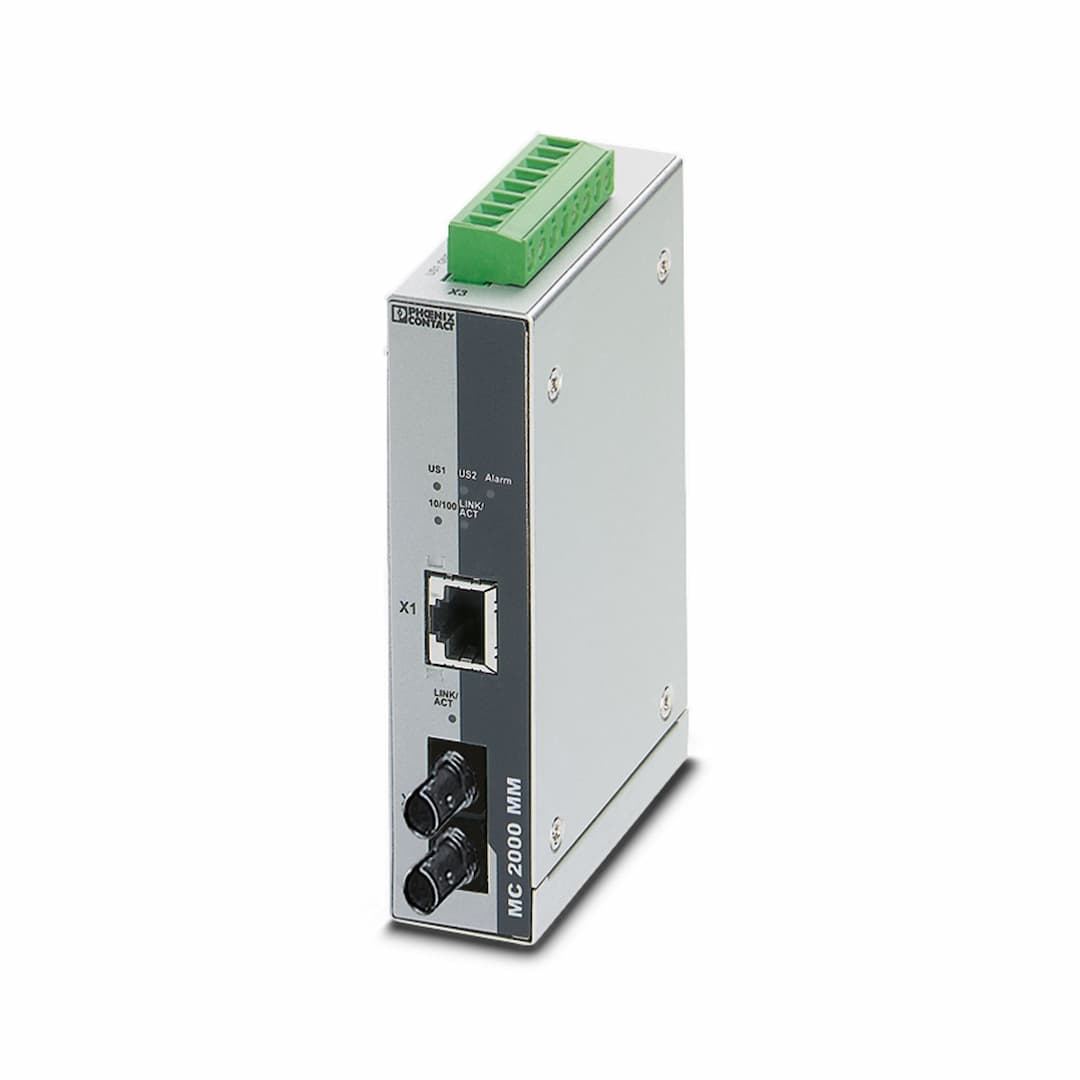

Product Model
FL MC 2000T ST
Selling Points
- 1High Performance: Converts 10/100Base-TX Ethernet to fiber optics with selectable latency for optimized performance.
- 2Comprehensive Diagnostics: Includes link fault pass through and port diagnostics for enhanced network reliability.
- 3Auto MDI/X Function: Simplifies cabling with automatic MDI/X switchover, eliminating the need for crossover cables.
- 4Layer 1 Security: Provides layer 1 security for the RJ45 port to restrict unauthorized access.
- 5Wide Temperature Range: Operates from -40°C to 75°C, suitable for rugged and factory applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Media converter |
MTTF | 77.82 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%) | Signal delay | 865 ns (Pass-through mode)
835 ns (Auto converter mode, 100 Mbps, static) |
Article revision | 05 | Electrical isolation | VCC // FE // Ethernet |
Test voltage data interface/power supply | 1500 V AC (500 V AC, 1 minute) | Supply voltage range | 12 V DC ... 48 V DC |
Nominal supply voltage | 24 V DC | Typical current consumption | 110 mA (24 V DC) |
Output name | Relay output | Output description | Alarm output |
Number of outputs | 1 | Contact switching type | N/C contact |
Maximum switching voltage | 24 V DC | Max. switching current | 100 mA |
Connection method | Plug-in screw terminal block (COMBICON), redundancy possible | Signal | Ethernet |
Transmit capacity, minimum | -19 dBm | Transmit capacity, maximum | -14 dBm |
Transmission length incl. 3 dB system reserve | 8 km (fiberglass with F-G 62.5/125 0.7 dB/km F1000)
3.3 km (fiberglass with F-G 62.5/125 2.6 dB/km F600)
9.6 km (fiberglass with F-G 50/125 0.7 dB/km F1200)
5.3 km (fiberglass with F-G 50/125 1.6 dB/km F800) | Connection method | B-FOC (ST®) |
Wavelength | 1310 nm | Minimum receiver sensitivity | -32 dBm |
Maximum receiver sensitivity | -14 dBm | Transmission medium | Multi-mode fiberglass
GI-HCS fiber |
Data rate | 10/100 Mbps | Serial transmission speed | 10/100 Mbps |
Connection method | RJ45 jack, shielded | No. of channels | 1 |
Transmission length | 100 m (twisted pair, shielded) | Transmission medium | Copper |
Signal LEDs | LNK/ACT, 100 | Auto-negotiation modes | Auto |
Link through | Link fault pass through | MDI-/MDI-X switchover | Auto-MDI(X) |
Width | 28 mm | Height | 110 mm |
Depth | 70 mm | Housing material | Aluminum |
Degree of protection | IP20 | Ambient temperature (operation) | -40 °C ... 75 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Altitude | 4850 m |
Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
Shock | 300 m/s², 11 ms (IEC 60068-2) | Air pressure (operation) | 86 kPa ... 108 kPa |
Air pressure (storage/transport) | 66 kPa ... 108 kPa | Conformance | CE-compliant |
UL, USA / Canada | Class I, Div. 2, Groups A, B, C, D | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Standards/regulations | EN 61000-4-2 | Comments | Criterion B |
Standards/regulations | EN 61000-4-3 | Comments | Criterion A |
Standards/regulations | EN 61000-4-4 | Comments | Criterion A |
Standards/regulations | EN 61000-4-5 | Comments | Criterion B |
Standards/regulations | EN 61000-4-6 | Comments | Criterion A |
Standards/regulations | EN 55032 | Mounting type | DIN rail mounting |
Mounting position | On horizontal DIN rail NS 35 in acc. with EN 60715 |
Specifications may be subject to change without notice
