Product Model

FL MC EF 1300 MM ST

In Stock
Last updated: 2025/4/17

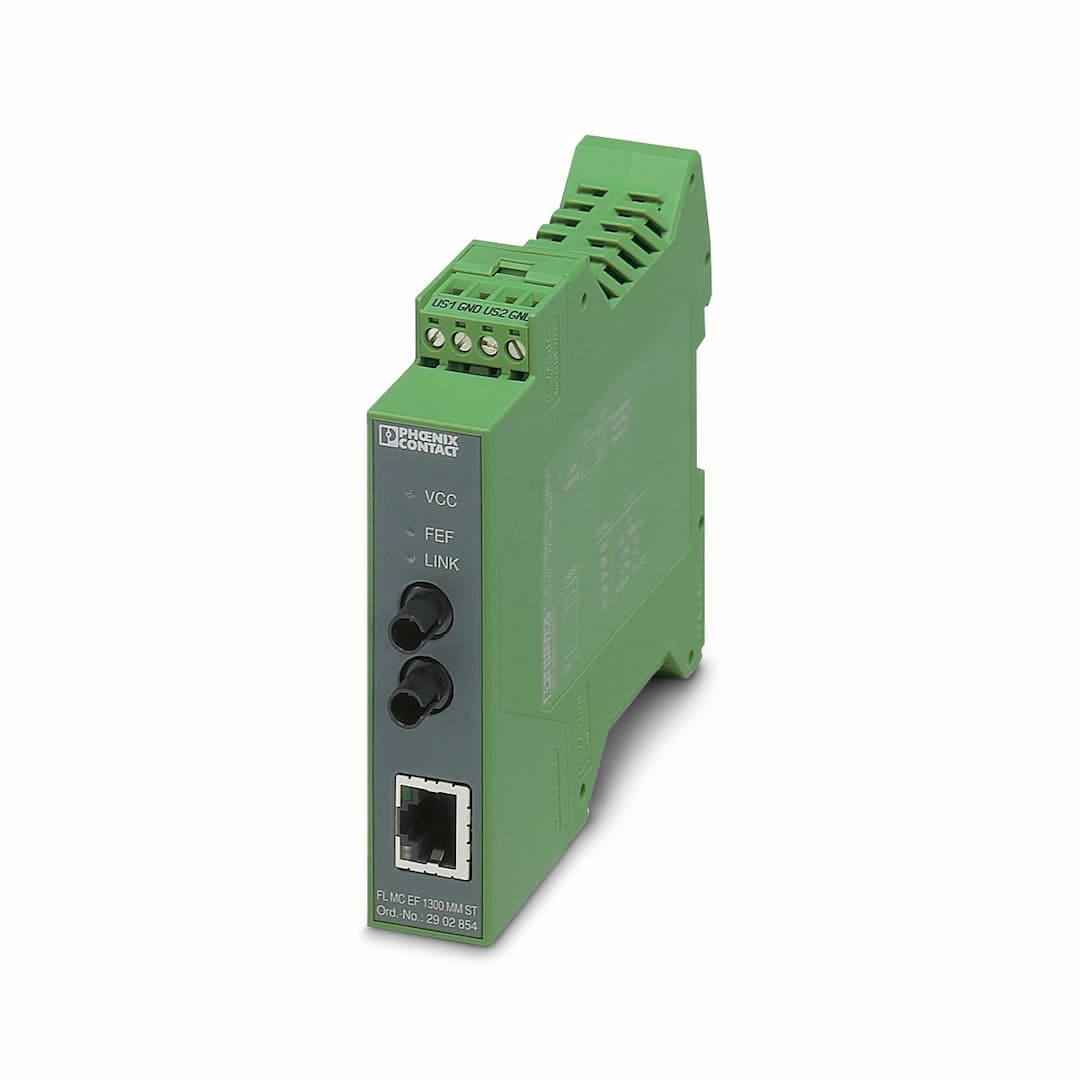

Phoenix Contact FL MC EF 1300 MM ST

Selling Points

  • 1Auto Negotiation and Auto MDI/MDI-X Switch-over: Automatically adjusts data transfer speed and cable type for seamless integration.
  • 2Link Fault Pass Through (LFPT) and Far End Fault (FEF): Ensures continuous monitoring and easy connection troubleshooting.
  • 3DIN-Rail Mountable: Compact design fits perfectly on DIN-rail for space-efficient installation.
  • 4Comprehensive Link Diagnostics: Advanced diagnostics for real-time link status monitoring.
  • 5Transmission Ranges Up to 10 km: Supports long-distance data transmission with high-speed fiber optic connectivity.
Product Details
FL MC EF 1300 MM ST
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Note on application
Only for industrial use
CCCex note
Use in potentially explosive areas is not permitted in China.
Product type
Media converter
MTTF
1400 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) 599 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%) 101 Years (SN 29500 standard, temperature 40°C, operating cycle 100%)
MTBF
492 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day)) 132 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day))
Signal delay
± 1.3 µs (Store and Forward mode, 10/100 Mbps, depending on the frame size)
Article revision
12
Basic functions
Store-and-forward media converter
Electrical isolation
according to IEEE 802.3 VCC // FE // Ethernet
Maximum power dissipation for nominal condition
2.4 W
Test voltage data interface/power supply
0.5 kV
Supply voltage range
18 V DC ... 30 V DC (Screw connection) 18 V DC ... 30 V DC (as an alternative or redundant, via backplane bus contact and system current supply)
Typical current consumption
< 100 mA (24 V DC)
Protective circuit
Reverse polarity protection
Connection method
Plug-in screw terminal block (COMBICON), redundancy possible
Single conductor/terminal point, rigid
0.2 mm² ... 2.5 mm²
Single-wire/terminal point, flexible
0.2 mm² ... 2.5 mm²
Conductor cross section, flexible [AWG]
24 ... 14
Stripping length
7.00 mm
Tightening torque
0.56 Nm ... 0.79 Nm
Signal
Ethernet
Basic functions
Store-and-forward media converter
Transmit capacity, minimum
≥ -23.5 dBm ((50/125 µm) dynamic in link mode (average)) ≥ -20 dBm ((62,5/125 µm) dynamic in link mode (average))
Transmit capacity, maximum
≤ -14 dBm ((50/125 µm) dynamic in link mode (average)) ≤ -14 dBm ((62,5/125 µm) dynamic in link mode (average))
Transmission length incl. 3 dB system reserve
6.4 km (F-G 50/125 0.7 dB/km F 1000) 2.8 km (F-G 50/125 1.6 dB/km F 800) 10 km (F-G 62.5/125 0.7 dB/km F 1000) 3 km (F-G 62.5/125 2.6 dB/km F 600)
Connection method
B-FOC (ST®)
Wavelength
1300 nm
Minimum receiver sensitivity
-31 dBm (dynamic in link mode (average))
Maximum receiver sensitivity
-14 dBm (dynamic in link mode (average))
Transmission medium
Multi-mode fiberglass GI-HCS fiber
Transmission speed
10/100 Mbps
Connection method
RJ45 jack, shielded
No. of channels
1
Transmission length
100 m (shielded twisted pair)
Transmission medium
Copper
Signal LEDs
Activity, link status, 10/100 Mbps
Auto-negotiation modes
Auto
Link through
Link fault pass through
MDI-/MDI-X switchover
Auto-MDI(X)
Width
22.5 mm
Height
99 mm
Depth
114.5 mm
Color (Housing)
green (RAL 6021)
Material (Housing)
PA 6.6-FR
Fiber types
50/125 µm 62.5/125 µm Fiberglass
Degree of protection
IP20
Ambient temperature (operation)
-40 °C ... 65 °C
Ambient temperature (storage/transport)
-40 °C ... 85 °C
Altitude
≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation) ≤ 2000 m (in acc. with UL)
Permissible humidity (operation)
5 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)
5 % ... 95 % (non-condensing)
Certificate
CE-compliant
Identification
 II 3 G Ex nA IIC T4 Gc X
Note
Please follow the special installation instructions in the documentation!
Identification
 II (2) D [Ex op is Db] IIIC  II (2) G [Ex op is Gb] IIC
Certificate
PTB 06 ATEX 2042 U
Note
Please follow the special installation instructions in the documentation!
Identification
508 Listed Class I, Zone 2, AEx nA IIC T4 Class I, Zone 2, Ex nA IIC T4 Gc X Class I, Div. 2, Groups A, B, C, D
Certificate
MSIP-REI-PCK-2902854
Identification
ISA-S71.04-1985 G3 Harsh Group A
Identification
DNV GL
Temperature
B
Humidity
A
Vibration
A
EMC
B
Enclosure
Required protection according to the Rules shall be provided upon installation on board
Electromagnetic compatibility
Conformance with EMC Directive 2014/30/EU
Standards/regulations
EN 61000-4-2
Contact discharge
± 6 kV (Test Level 3)
Discharge in air
± 8 kV (Test Level 3)
Indirect discharge
± 6 kV
Comments
Criterion B
Standards/regulations
EN 61000-4-3
Frequency range
80 MHz ... 3 GHz (Test Level 3)
Field intensity
10 V/m
Comments
Criterion A
Standards/regulations
EN 61000-4-4
Input
± 2 kV (Test Level 3)
Signal
± 2 kV (Test Level 3)
Comments
Criterion B
Standards/regulations
EN 61000-4-5
Input
± 0.5 kV (DC supply)
Signal
± 1 kV (Data line, asymmetrical)
Comments
Criterion B
Standards/regulations
EN 61000-4-6
Frequency range
0.15 MHz ... 80 MHz
Comments
Criterion A
Voltage
10 V
Standards/regulations
EN 55032
Comments
Class A, industrial applications
Criterion A
Normal operating behavior within the specified limits.
Criterion B
Temporary impairment to operational behavior that is corrected by the device itself.
Free from substances that could impair the application of coating
VDMA 24364:2018-05
Electrical isolation
according to IEEE 802.3
Mounting type
DIN rail mounting

Specifications may be subject to change without notice
