Product Model

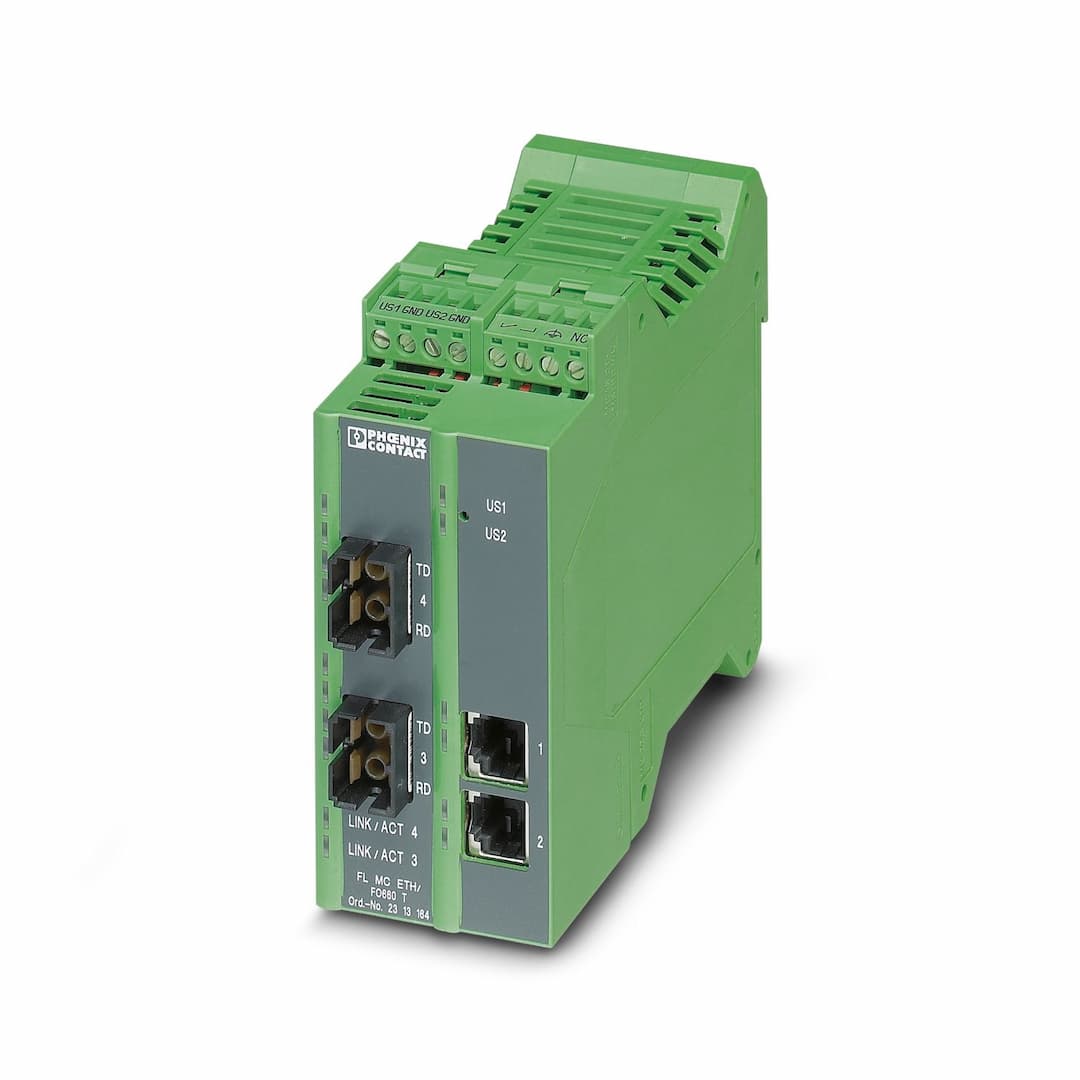

FL MC ETH/FO 660 T
Selling Points
- 1Compact 4-port media converter for flexible network setup.
- 2Redundant power supply ensures continuous operation.
- 3Extended temperature range of -20°C to +55°C for industrial applications.
- 4Integrated software for network configuration, diagnosis, and monitoring.
- 5Multicast filtering with IGMP snooping and VLAN support for efficient network management.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Media converter |
Type | Book type | Basic functions | Store-and-forward media converter standard-compliant IEEE 802.3 2, priority classes according to IEEE 802.1 P, TCP/IP protocol, BootP-compatible, port mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP) |
Supported browsers | Internet Explorer 5.5 or higher | Local diagnostics | US Supply voltage Green LED
Link status Green LED
Telegrams received Yellow LED |
Maximum power dissipation for nominal condition | 9.6 W | Transmission medium | Copper |
Supply voltage (DC) | 24 V DC | Supply voltage range | 18.5 V DC ... 30.5 V DC |
Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² | Residual ripple | 3.6 V |
Typical current consumption | 400 mA (at U | Signal contact control voltage | 24 V |
Signal | Ethernet
PROFINET | Connection method | RJ45 |
Note on the connection method | Auto negotiation and autocrossing | Transmission speed | 10/100 Mbps |
Transmission physics | Copper | Transmission length | 100 m (per segment) |
No. of channels | 2 (RJ45 ports) | Connection method | SC-RJ |
Transmission speed | 10/100 Mbps (full duplex) | Transmission physics | POF-SCRJ |
Transmission length | up to 250 m (depending on the fiber used) | No. of channels | 2 (SC-RJ) |
Status display | 2 status LEDs per Ethernet: activity and duplex mode, supply voltage U | Width | 45 mm |
Height | 99 mm | Depth | 123 mm |
Color | green | Housing material | PA V0 |
Degree of protection | IP20 | Ambient temperature (operation) | -20 °C ... 55 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) | Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
Electromagnetic compatibility | Conformance with EMC directive 89/336/EC | Noise immunity | EN 61000-6-2:2005 |
Noise emission | EN 61000-6-3/-4 | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
