Product Model

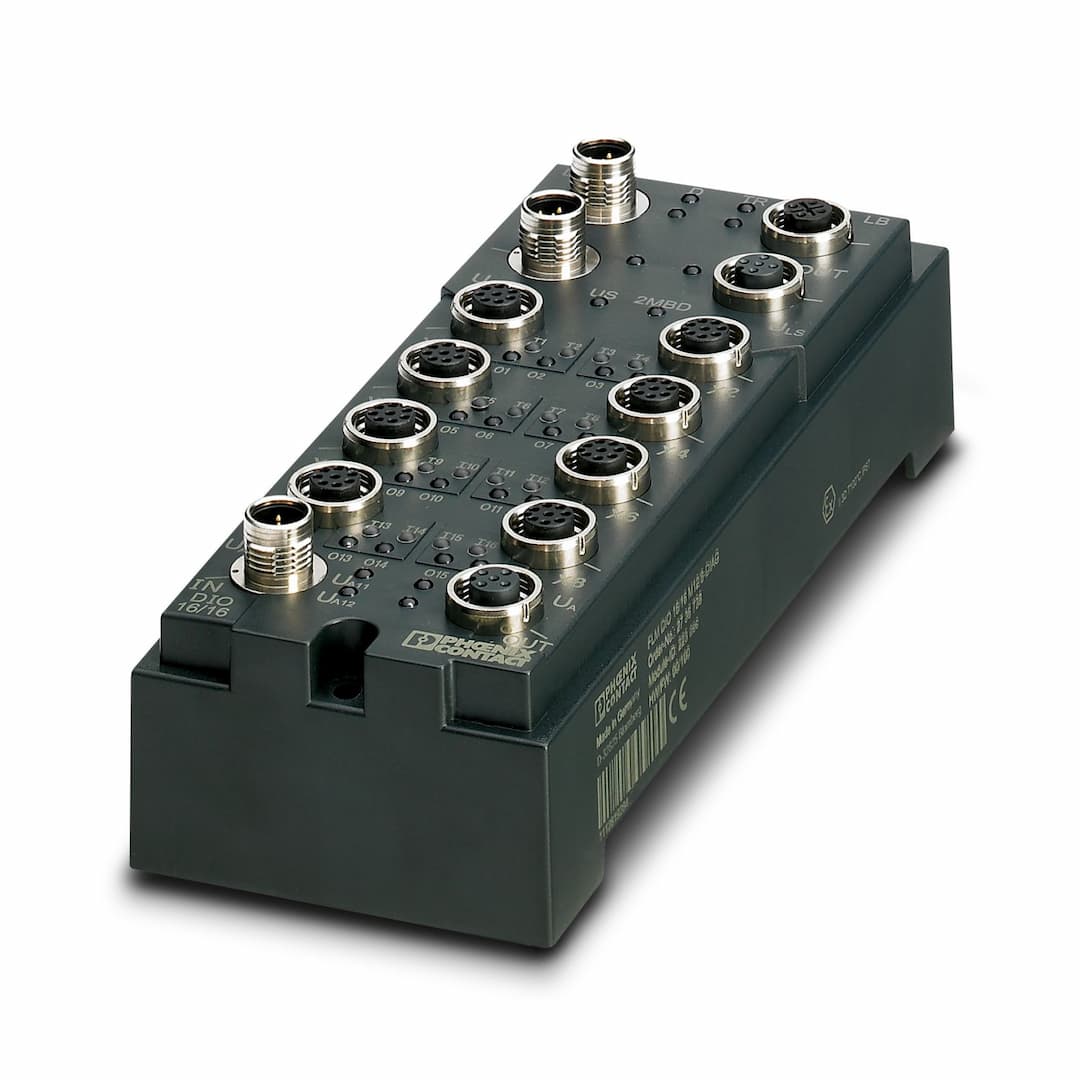

FLM DIO 16/16 M12/8-DIAG
Selling Points
- 116 Digital Inputs with 3 ms Filter Time
- 216 Digital Outputs of 500 mA Each
- 3500 kbaud/2 Mbaud Transmission Speed Selection
- 4Diagnostics and Status Indicators for Enhanced Monitoring
- 5M12 Connectors for Fast and Reliable Connections
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 70 mm | Height | 178 mm |
Depth | 50 mm | Drill hole spacing | 168 mm |
Connection method | M12 connector, B-coded | Designation connection point | Copper cable |
Number of positions | 5 | Transmission speed | 500 kbps / 2 Mbps |
ID code (dec.) | 223 | ID code (hex) | DF |
Length code (hex) | 01 | Process data channel | 16 bit |
Input address area | 2 Byte | Output address area | 2 Byte |
Register length | 32 bit | Required parameter data | 18 Byte |
Required configuration data | 5 Byte | Input name | Digital inputs |
Description of the input | IEC 61131-2 type 1 | Number of inputs | 16 |
Connection method | M12 connector, 8-pos. | Connection technology | 2-, 3-conductor |
Input voltage | 24 V DC | Input voltage range "0" signal | -30 V DC ... 5 V DC |
Input voltage range "1" signal | 13 V DC ... 30 V DC | Nominal input voltage U | 24 V DC |
Total sensor current | max. 500 mA (Maximum current per socket) | Filter time | 3 ms |
Delay at signal change from 0 to 1 | 3 ms | Delay at signal change from 1 to 0 | 3 ms |
Protective circuit | Short-circuit protection, overload protection of the sensor supply; Reverse polarity protection | Output name | Digital outputs |
Connection method | M12 connector, 8-pos. | Connection technology | 2-conductor |
Number of outputs | 16 | Protective circuit | Short-circuit protection, overload protection of the sensor supply; Polarity protection diode |
Maximum output current per channel | 500 mA | Product type | I/O component |
Product family | Fieldline | Type | modular |
No. of channels | 16 | Voltage supply U | 24 V DC |
Power supply at U | max. 4 A | Current consumption from U | max. 100 mA (At 2 Mbaud)
typ. 80 mA (At 2 Mbaud)
max. 75 mA (At 500 kBaud)
typ. 60 mA (At 500 kBaud) |
Voltage supply U | 24 V DC | Power supply at U | max. 4 A |
Current consumption from U | typ. 20 mA (plus power supply for sensors)
max. 1.2 A
max. 1.2 A | Voltage supply U | 24 V DC |
Power supply at U | max. 4 A | Current consumption at U | typ. 15 mA
max. 4 A |
Voltage supply U | 24 V DC | Power supply at U | max. 4 A |
Current consumption at U | typ. 15 mA
max. 4 A | Connection method | M12 connector |
Designation | U | Supply voltage | 24 V DC |
Supply voltage range | 18 V DC ... 30 V DC (including ripple) | Test voltage: To I/O | 500 V DC, 1 min |
Connection method | M12 connector | Ambient temperature (operation) | -25 °C ... 60 °C |
Degree of protection | IP65/IP67 | Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (storage/transport) | 95 % | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | Wall mounting |
Specifications may be subject to change without notice
