Product Model

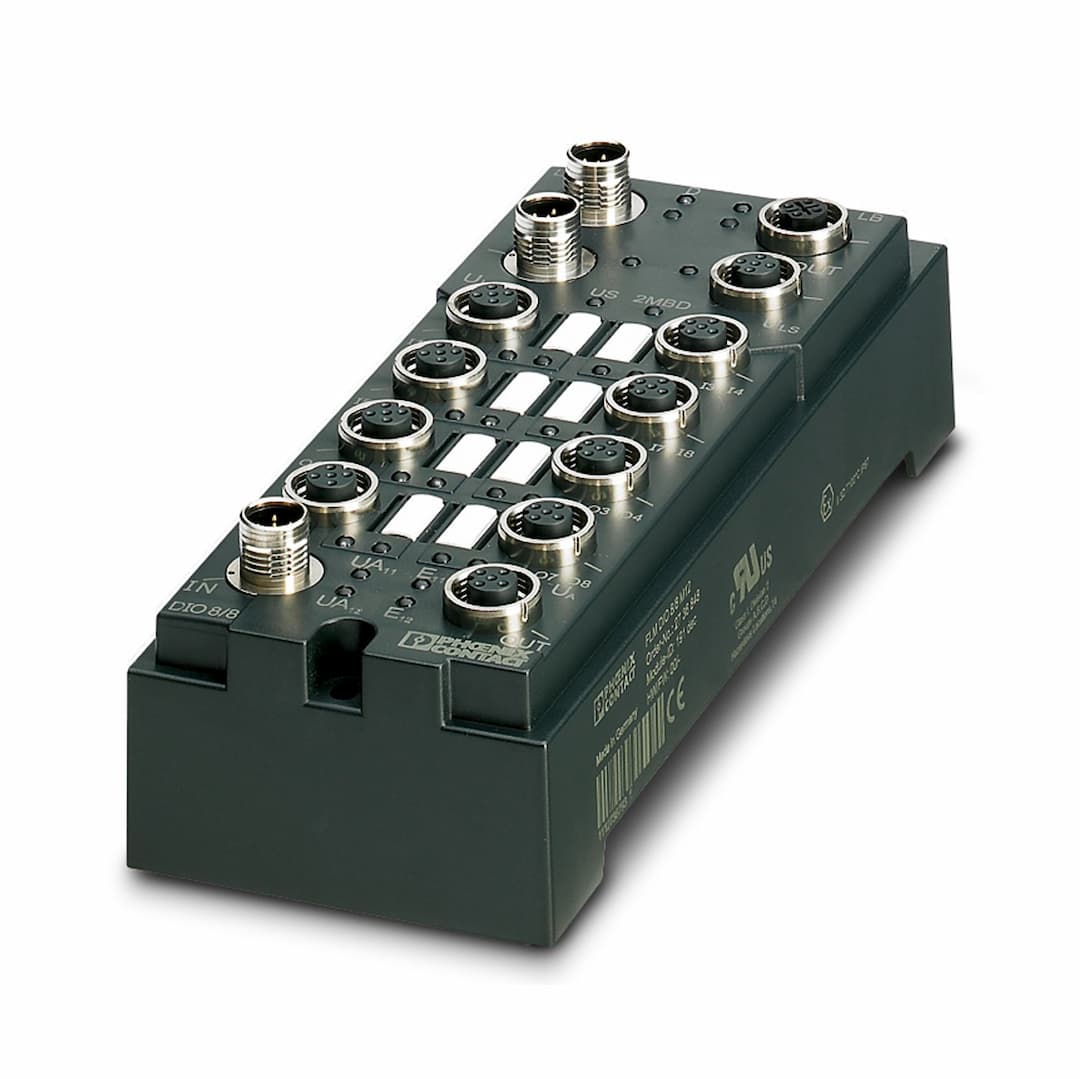

FLM DIO 8/8 M12
Selling Points
- 18 digital inputs with 3 ms filter time.
- 28 digital outputs of 500 mA each.
- 3High-speed communication at 500 kbaud/2 Mbaud.
- 4Compact M12 design for easy integration.
- 5Reliable performance in industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 70 mm | Height | 178 mm |
Depth | 50 mm | Drill hole spacing | 168 mm |
Connection method | M12 connector, B-coded | Designation connection point | Copper cable |
Number of positions | 5 | Transmission speed | 500 kbps / 2 Mbps |
ID code (dec.) | 191 | ID code (hex) | BF |
Length code (hex) | 41 | Process data channel | 4 bit |
Input address area | 4 bit | Output address area | 4 bit |
Register length | 4 bit | Required parameter data | 3 Byte |
Required configuration data | 5 Byte | Input name | Digital inputs |
Description of the input | IEC 61131-2 type 1 | Number of inputs | 8 |
Connection method | M12 connector | Connection technology | 2-, 3-, 4-conductor |
Input voltage | 24 V DC | Input voltage range "0" signal | -30 V DC ... 5 V DC |
Input voltage range "1" signal | 13 V DC ... 30 V DC | Nominal input voltage U | 24 V DC |
Filter time | 3 ms | Protective circuit | Reverse polarity protection |
Output name | Digital outputs | Connection method | M12 connector |
Connection technology | 2-, 3-conductor | Number of outputs | 8 |
Protective circuit | Short-circuit protection | Output voltage | 24 V DC |
Maximum output current per channel | 500 mA | Product type | I/O component |
Product family | Fieldline | Type | modular |
No. of channels | 8 | Article revision | 07 |
Voltage supply U | 24 V DC | Power supply at U | max. 4 A |
Current consumption from U | max. 55 mA (At 2 Mbaud)
typ. 50 mA (At 2 Mbaud)
max. 50 mA (At 500 kBaud)
typ. 40 mA (At 500 kBaud) | Voltage supply U | 24 V DC |
Power supply at U | max. 4 A | Current consumption from U | typ. 5 mA (plus power supply for sensors)
max. 600 mA |
Voltage supply U | 24 V DC | Power supply at U | max. 4 A |
Current consumption at U | typ. 3 mA
max. 2 A | Voltage supply U | 24 V DC |
Power supply at U | max. 4 A | Current consumption at U | typ. 3 mA
max. 4 A |
Connection method | M12 connector | Designation | U |
Supply voltage | 24 V DC | Supply voltage range | 18 V DC ... 30 V DC (including ripple) |
Test voltage: To I/O | 500 V AC | Connection method | M12 connector |
Ambient temperature (operation) | -25 °C ... 60 °C | Degree of protection | IP65/IP67 |
Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (storage/transport) | 95 % |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | Wall mounting |
Specifications may be subject to change without notice
