Product Model

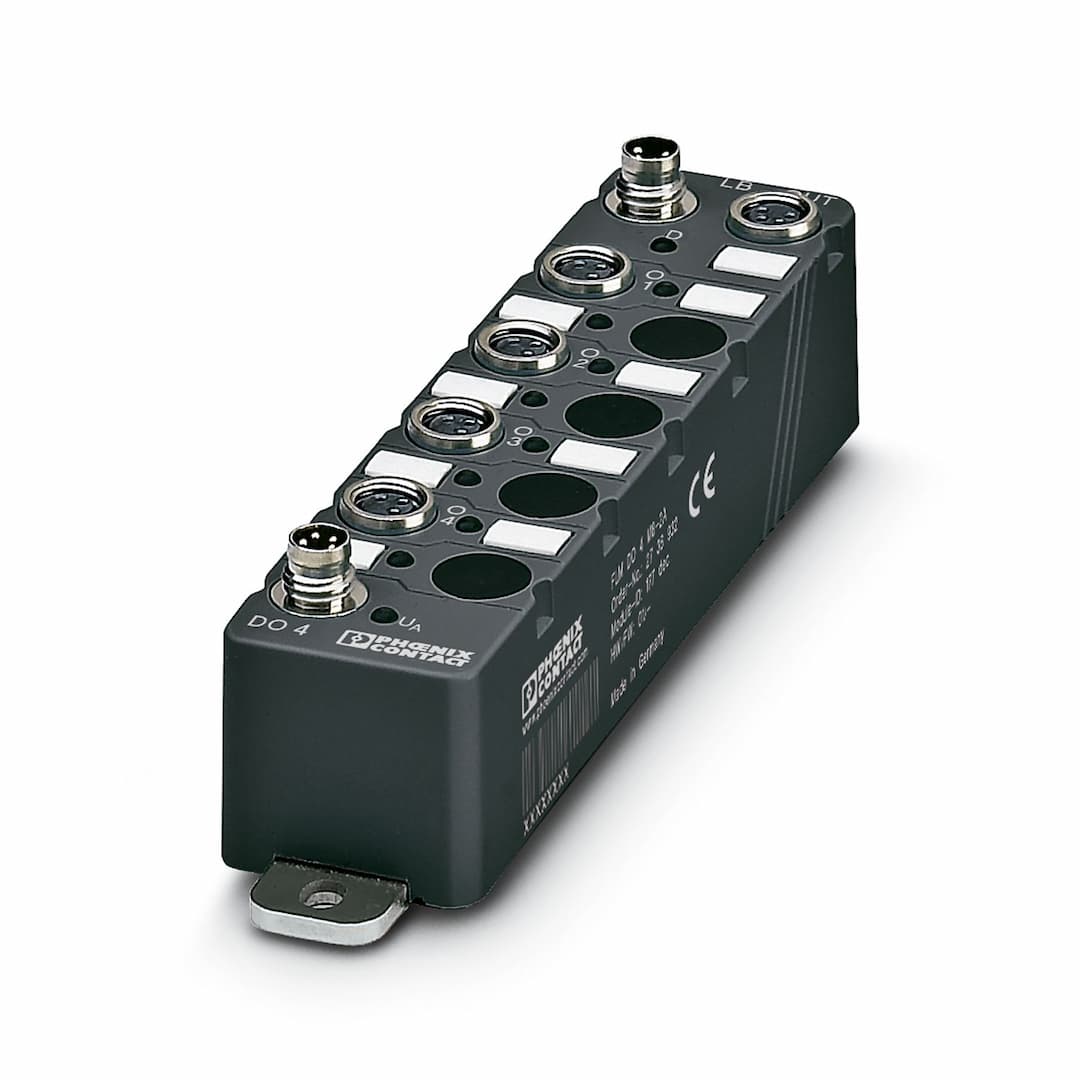

FLM DO 4 M8-2A
Selling Points
- 14 Digital Outputs with 2 A Load Capacity
- 2Channel-Specific Diagnostics for Enhanced Reliability
- 3Short-Circuit and Overload Protection for Safety
- 4M8 Connection Method for Easy Integration
- 5Compact Design for Close Proximity Use
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 29.8 mm | Height | 143 mm |
Depth | 26.5 mm | Drill hole spacing | 133 mm |
Note on dimensions | Length details incl. fixing clips | Color | black |
Connection method | 2 M8 male connector | Designation connection point | Copper cable |
Number of positions | 5 | Transmission speed | 500 kbps |
ID code (dec.) | 177 | ID code (hex) | B1 |
Length code (hex) | 41 | Length code (dec) | 65 |
Process data channel | 4 bit | Input address area | 0 bit |
Output address area | 4 bit | Register length | 4 bit |
Required parameter data | 3 Byte | Required configuration data | 4 Byte |
Input voltage | 24 V DC | Input voltage range "0" signal | -30 V DC ... 5 V DC |
Input voltage range "1" signal | 13 V DC ... 30 V DC | Output name | Digital outputs |
Connection method | M8 connector | Connection technology | 2-, 3-conductor |
Number of outputs | 4 | Protective circuit | Short-circuit protection |
Output voltage | 24 V DC | Maximum output current per channel | 2 A |
Product type | I/O component | Product family | Fieldline |
Type | modular | No. of channels | 4 |
Voltage supply U | 24 V DC | Connection method | M8 connector |
Designation | U | Number of positions | 4 |
Supply voltage | 24 V DC | Supply voltage range | 18 V DC ... 30 V DC (including ripple) |
Supply current | 3 A | Test voltage: To I/O | 500 V AC |
Connection method | M8 connector | Ambient temperature (operation) | -25 °C ... 60 °C |
Degree of protection | IP65/IP67 | Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (storage/transport) | 95 % | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | Wall mounting |
