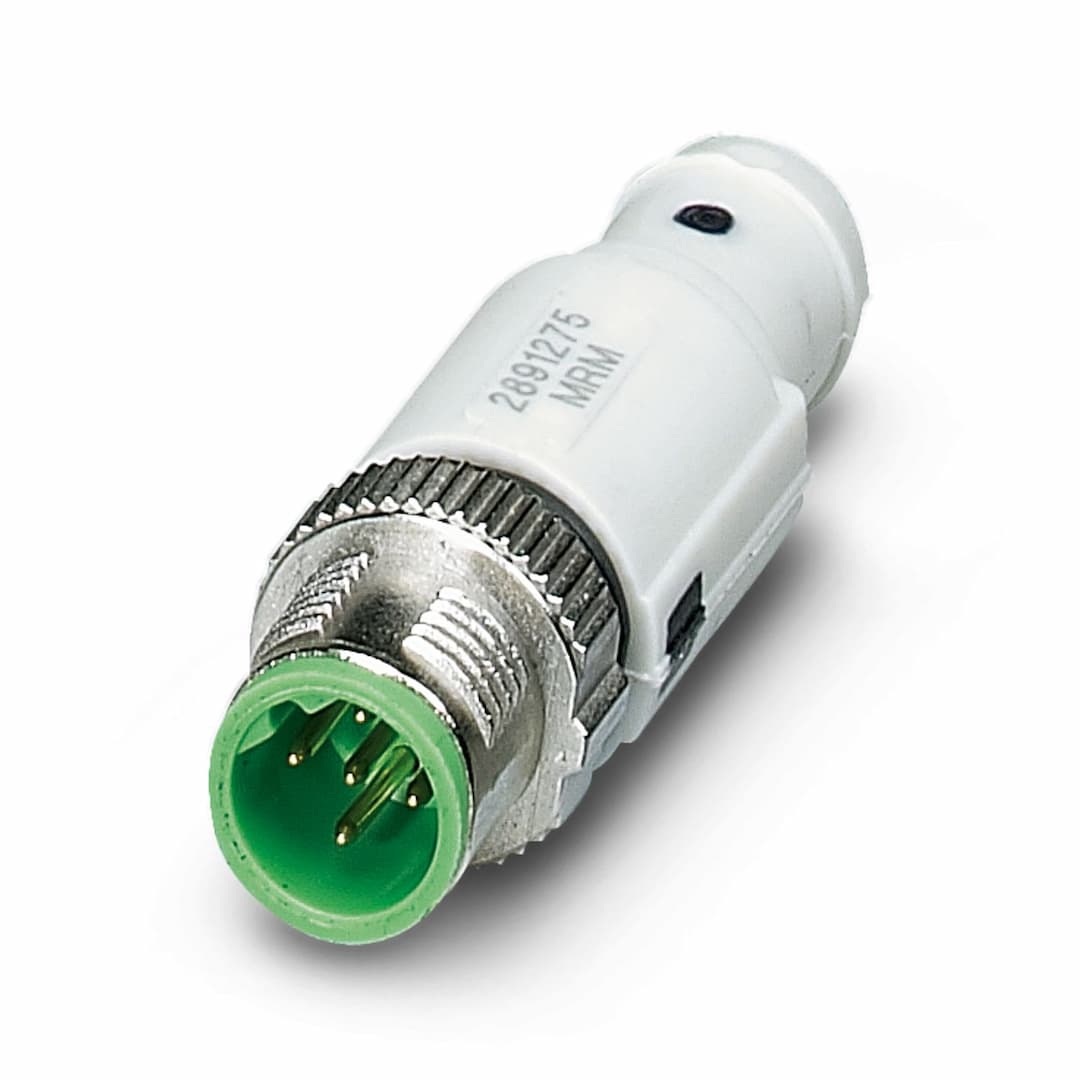

Product Model
FL MEM PLUG/MRM
Selling Points
- 1Exchangeable Configuration Memory: Easily swap device settings for simple setup and exchange.
- 2Media Redundancy Manager (MRM): Store MRM license within the Media Redundancy protocol (MRP) for robust redundancy.
- 3Fine Granularity FLASH-EPROM: 64 kByte memory type for precise data storage.
- 4Compact Dimensions: 16 mm width, 49 mm height for space-efficient integration.
- 5Compliance with EMC Directives: Meets IEC 61000-6-2 and EN 55022 standards for electromagnetic compatibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Storage medium |
Type | fine granularity | Memory type | FLASH-EPROM 64 kByte |
Basic functions | Configuration memory and manager for the media redundancy protocol (MRP) | Maximum power dissipation for nominal condition | max. 0.02 W |
Power supply connection | from FL SWITCH MCS/SMCS | Protocols supported | Manager for MRP |
Width | 16 mm | Height | 49 mm |
Color | green | Degree of protection | IP20 |
Ambient temperature (operation) | 0 °C ... 55 °C (non-condensing) | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Permissible humidity (operation) | 10 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC | Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B
IEC 61000-4-3 (immunity to radiated interference) Criterion A
IEC 61000-4-4 (burst) Criterion A
IEC 61000-4-5 (surge) Criterion A
IEC 61000-4-6 (immunity to conducted interference) Criterion A
IEC 61000-4-8 (immunity to magnetic fields) Criterion A
EN 55022 (emitted interference) Criterion A |
Noise immunity | EN 61000-6-2:2005 | Noise emission | EN 61000-6-3/-4 |
Mounting type | In the host system |
Specifications may be subject to change without notice
