Product Model

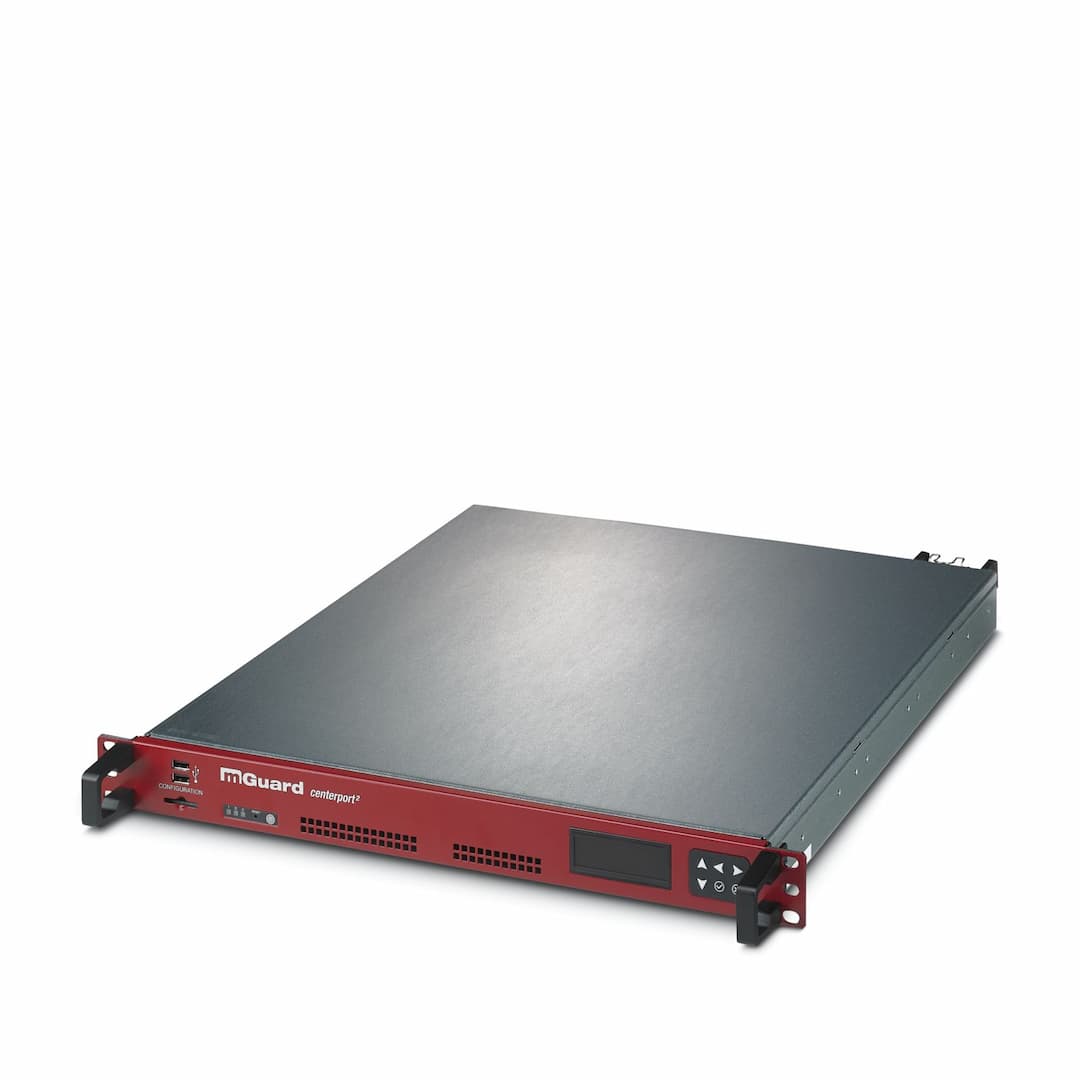

FL MGUARD CENTERPORT
Selling Points
- 1High-Performance Remote Maintenance: Supports 10/100/1000 Mbps Ethernet for efficient remote maintenance.
- 2Advanced Firewall Capabilities: Includes a configurable stateful inspection firewall with full scope of functions.
- 3Enhanced VPN Security: Supports up to 3000 parallel VPN tunnels with hardware encryption for maximum security.
- 4Redundant Power Supply: Equipped with redundant power supply units (2x 100 V AC to 240 V AC) for reliability.
- 5Compact Design: Compact dimensions (447 mm x 44 mm x 458 mm) with a rugged metal chassis for desktop or rack mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 447 mm | Height | 44 mm |
Depth | 458 mm | Note on application | Only for industrial use |
Color | red | Housing material | Metal |
Connection method | RJ45 | Transmission speed | 10/100/1000 Mbps |
Transmission physics | Ethernet in RJ45 twisted pair | Transmission length | 100 m (per segment) |
Signal LEDs | Dot-matrix display, LEDs | No. of channels | 4 (RJ45 ports) |
Basic functions | Security appliance for up to 3000 parallel VPN tunnels (with additional licenses) and more than 600 Mbps VPN data throughput (with hardware encryption) | Supported browsers | HTTPS support required |
Product type | Security routers without DIN rail mounting | Type | Stand-Alone |
Power consumption | max. 600 W | Local diagnostics | Dot-matrix display, LEDs |
Supply voltage range | 2x 100 V AC ... 240 V AC (redundant) | Degree of protection | IP20 |
Ambient temperature (operation) | 0 °C ... 45 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Permissible humidity (operation) | 20 % ... 90 % (non-condensing) | Permissible humidity (storage/transport) | 10 % ... 90 % (non-condensing) |
Mounting type | Rack mounting |
Specifications may be subject to change without notice
