Product Model

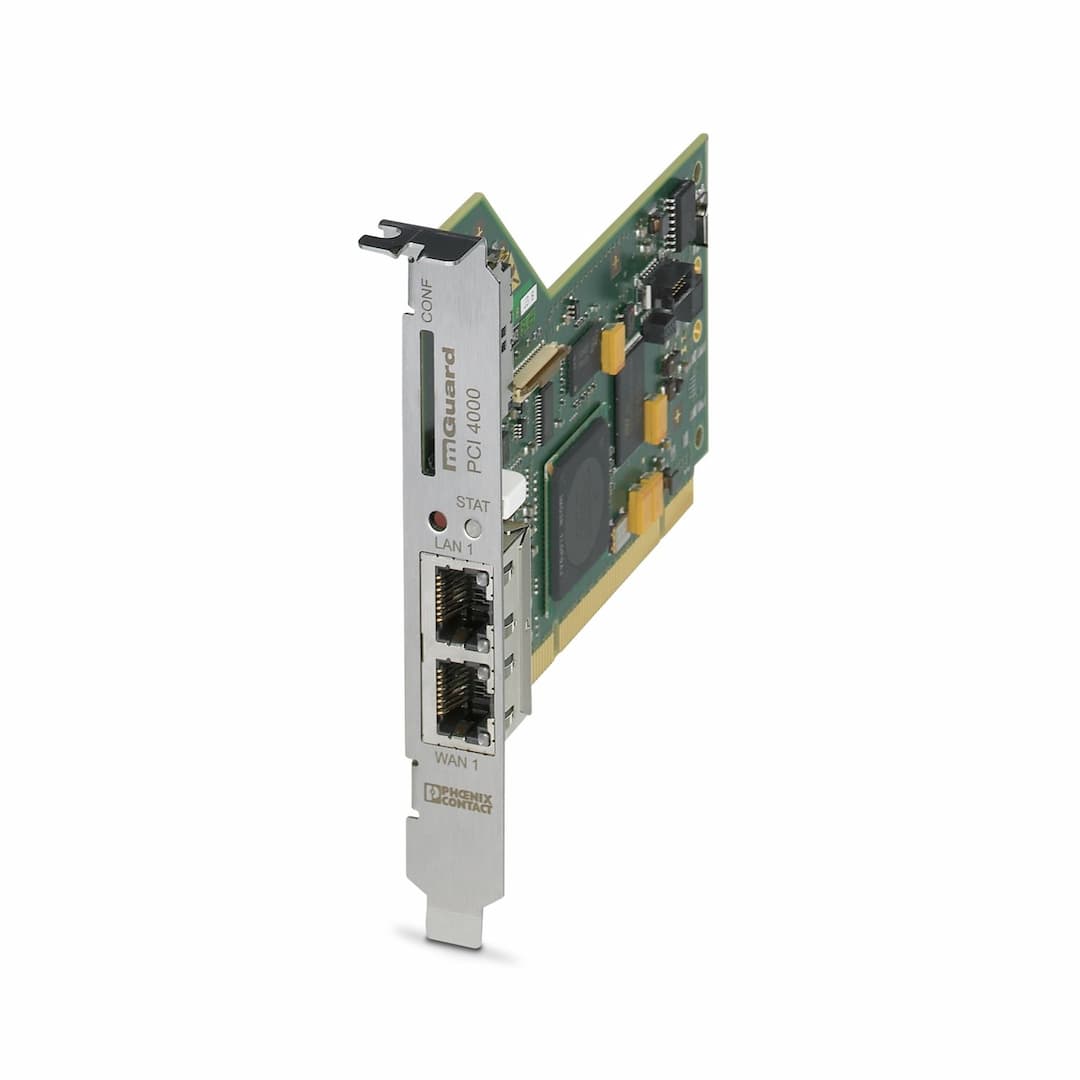

FL MGUARD PCI4000 VPN
Selling Points
- 1Advanced Firewall with Stateful Inspection for robust security.
- 2Supports up to 10 VPN tunnels, expandable to 250 with additional license.
- 3Integrated 1:1 Network Address Translation (NAT) for secure network operations.
- 4High-performance firewall and VPN throughput: up to 124 Mbps/40 Mbps.
- 5Compatible with various authentication methods including X.509v3 certificates and PSK.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Connection method | RJ45 |
Transmission speed | 10/100 Mbps | Transmission physics | Ethernet in RJ45 twisted pair |
Transmission length | 100 m (per segment) | Signal LEDs | WAN link, WAN activity, LAN link, LAN activity |
No. of channels | 2 (RJ45 ports) | Basic functions | Router with intelligent firewall and VPN for 10 tunnels (up to 250 supported with optional additional license), CIFS Integrity Monitoring (as an option), metal housing, slot for SD memory card, extended temperature range, high-performance firewall/VPN: up to 124 Mbps/40 Mbps |
Supported browsers | HTTPS support required | Product type | Security routers without DIN rail mounting |
Format | PCI | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Power consumption | max. 2.88 W | Local diagnostics | One LED per port Activity LED red
One LED per port Link active Green LED |
Power supply connection | Via PCI bus | Degree of protection | IP00 |
Ambient temperature (operation) | 0 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % (non-condensing) |
Mounting type | PCI slot | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Status display | Link/activity per port |
Specifications may be subject to change without notice
