Product Model

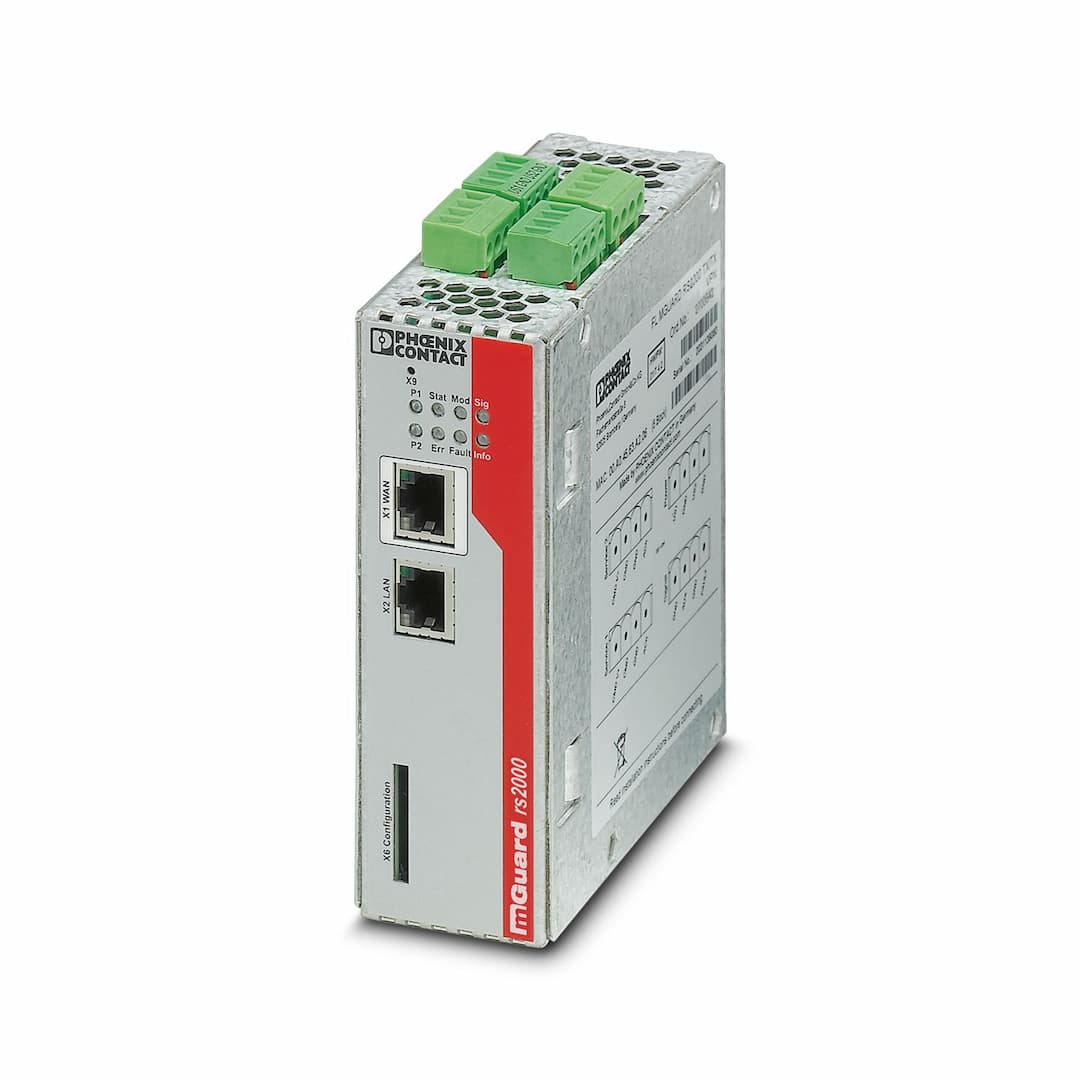

FL MGUARD RS2000 TX/TX-B
Selling Points
- 1Maximum Security: Protect your network with advanced security features including DHCP support, NTP client, and protection against IP spoofing.
- 2High Performance: Achieve up to 2 x 85 Mbps data throughput for seamless network operations.
- 3Central Management: Easily manage your network with a central management tool for efficient configuration and monitoring.
- 4Standard Routing: Support for standard routing, NAT, and 1:1-NAT for comprehensive network management.
- 5Durable Design: Built with metal housing and designed to meet EMC class A standards for reliable operation in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 45 mm | Height | 130 mm |
Depth | 120.6 mm | Note on application | Only for industrial use |
Color | silver | Housing material | Metal |
Connection method | RJ45 | Transmission speed | 10/100 Mbps |
Transmission physics | Ethernet in RJ45 twisted pair | Transmission length | 100 m (per segment) |
Signal LEDs | Supply voltage, data transmission, error, link, activity | No. of channels | 2 (RJ45 ports) |
Connection method | Plug-in/screw connection via COMBICON | Additional text | not electrically isolated |
Basic functions | Router for standard routing, NAT, 1:1-NAT and port forwarding | Product type | Security router for the DIN rail |
Type | Stand-Alone | Article revision | 10 |
Data integrity | MD5, SHA-1, SHA 256, SHA-512 | Dynamic Host Configuration Protocol (DHCP) support | Server or Relay Agent |
Basic functions | Router for standard routing, NAT, 1:1-NAT and port forwarding | Link Layer Discovery Protocol (LLDP) | As per protocol 802.2 |
Network Time Protocol (NTP) client | Client | Remote Syslog Logging | on externals server |
Routing | Standard routing, NAT, 1:1-NAT, port forwarding | Protection against | IP spoofing |
Maximum power dissipation for nominal condition | 2.4 W | Supply voltage (DC) | 24 V DC |
Supply voltage range | 11 V DC ... 36 V DC | Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² |
Residual ripple | 3.6 V | Max. current consumption | 0.24 A |
Typical current consumption | 100 mA (at U | Signal contact control voltage | 24 V DC (typical) |
Signal contact control current | 250 mA (short-circuit-proof) | Degree of protection | IP20 |
Ambient temperature (operation) | -20 °C ... 60 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Mounting type | DIN rail mounting |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) 6 kV contact discharge, 8 kV air discharge
IEC 61000-6-2 IEC 61000-4-3 (immunity to radiated interference) 10 V/m (80 MHz ... 2000 MHz)
IEC 61000-6-2 IEC 61000-4-4 (burst) 2 kV power line, 1kV data line
IEC 61000-6-2 IEC 61000-4-5 (surge) power line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line
IEC 61000-6-2 IEC 61000-4-6 (immunity to conducted interference) 3 V (10 kHz ... 150 kHz), 10 V (150 kHz ... 80 MHz) |
Noise immunity | EN 61000-6-2:2005 | Noise emission | EN 55022 / Class B |
Status display | LEDs:P1, P2, Fault, State, Error, LAN, WAN |
Specifications may be subject to change without notice
