Product Model

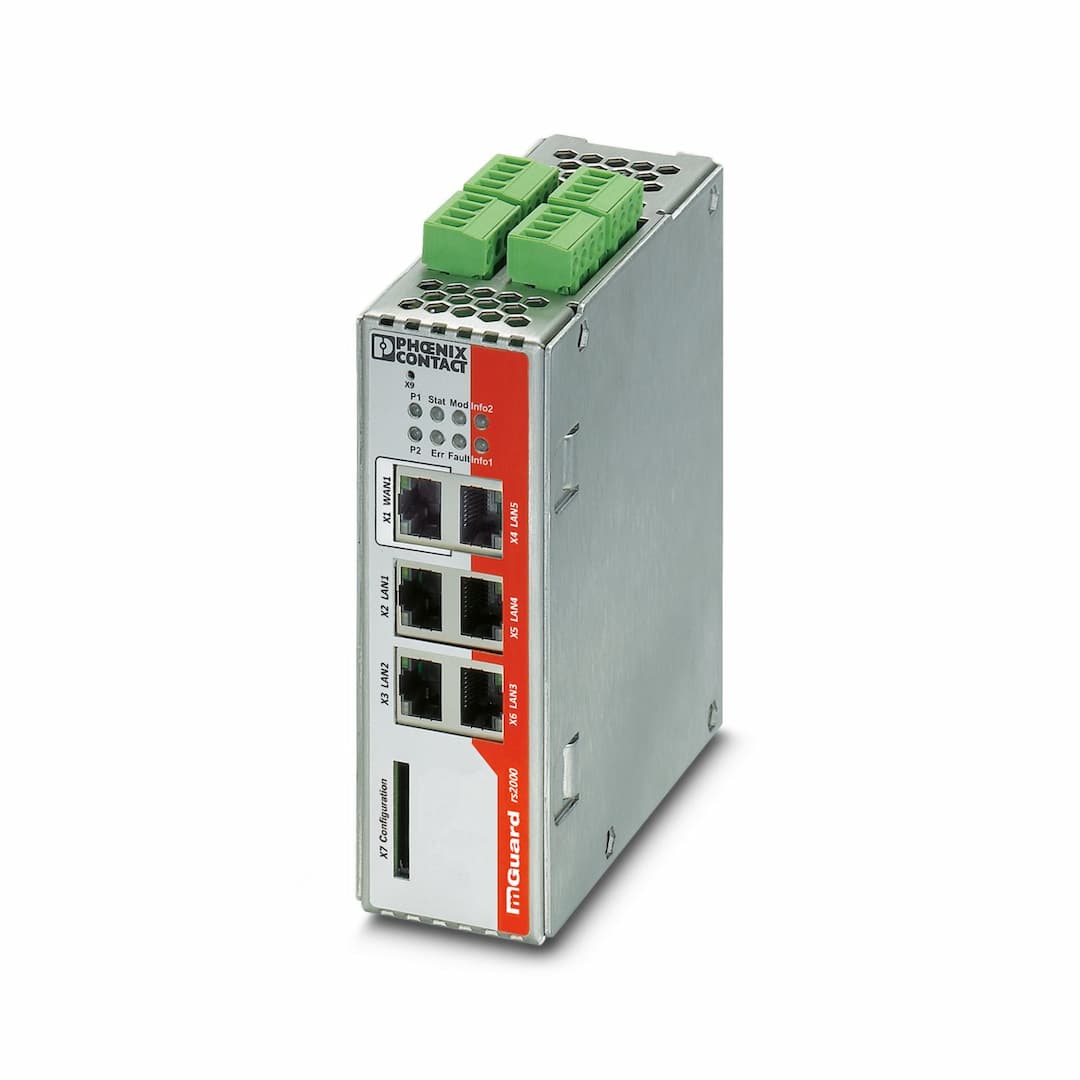

FL MGUARD RS2005 TX VPN
Selling Points
- 1Securely manage industrial networks remotely with this router.
- 2Supports 10/100 Mbps transmission speeds for efficient data transfer.
- 3Includes NAT, VPN, and a stateful inspection firewall for robust security.
- 4Comes with an unmanaged 5-port switch for easy device connectivity.
- 5Durable metal housing and DIN rail mounting for industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 45 mm | Height | 130 mm |
Depth | 120.6 mm | Note on application | Only for industrial use |
Color | silver | Housing material | Metal |
Connection method | RJ45 | Transmission speed | 10/100 Mbps |
Transmission physics | Ethernet in RJ45 twisted pair | Transmission length | 100 m (per segment) |
Signal LEDs | Supply voltage, data transmission, error, link, activity | No. of channels | 6 (RJ45 ports) |
Connection method | Plug-in/screw connection via COMBICON | Additional text | not electrically isolated |
Connection method | 24 V DC/250 mA can be connected as an option | Basic functions | Router with firewall and VPN for 2 tunnels, integrated 5-port switch, metal housing, slot for SD memory card, extended temperature range, high-performance firewall/VPN: up to 124 Mbps/40 Mbps |
Supported browsers | HTTPS support required | Product type | Security router for the DIN rail |
Type | Stand-Alone | Article revision | 10 |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | 1:1 Network Address Translation (NAT) in the VPN | supported |
Number of VPN tunnels | 2 | Authentication | X.509v3 certificates with RSA or PSK |
Data integrity | MD5, SHA-1, SHA 256, SHA-512 | Dynamic Host Configuration Protocol (DHCP) support | Server or Relay Agent |
Filtering | Incoming or outgoing traffic | Firewall data throughput | max. 130 Mbps (Router mode, default firewall rules, bidirectional throughput)
max. 61 Mbps (Stealth mode, default firewall rules, bidirectional throughput) |
Firewall rules | simple stateful inspection firewall, no user firewall, no conditional firewall, no rule sets | Basic functions | Router with firewall and VPN for 2 tunnels, integrated 5-port switch, metal housing, slot for SD memory card, extended temperature range, high-performance firewall/VPN: up to 124 Mbps/40 Mbps |
Internet Protocol Security (IPsec) mode | ESP tunnel / ESP transport | Link Layer Discovery Protocol (LLDP) | As per protocol 802.2 |
Network Time Protocol (NTP) client | Client | Remote Syslog Logging | on externals server |
Routing | Standard routing, NAT, 1:1-NAT, port forwarding | Encryption methods | DES, 3DES, AES-128, -192, -256 |
Virtual private network (VPN) throughput | max. 40 Mbps (Router mode, VPN bidirectional throughput)
max. 27 Mbps (Stealth mode, VPN bidirectional throughput) | Local diagnostics | P1, P2 Supply voltage US1, US2 Green LED
One LED per port Link active Green LED |
Maximum power dissipation for nominal condition | 2.4 W | Supply voltage (DC) | 24 V DC (redundant) |
Supply voltage range | 11 V DC ... 36 V DC | Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² |
Residual ripple | 3.6 V | Max. current consumption | 180 mA (unloaded outputs) |
Typical current consumption | 100 mA (at U | Signal contact control voltage | 24 V DC (typical) |
Signal contact control current | 250 mA (short-circuit-proof) | Degree of protection | IP20 |
Ambient temperature (operation) | -20 °C ... 60 °C | Ambient temperature (storage/transport) | -40 °C ... 70 °C |
Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Conformance | CE-compliant |
Mounting type | DIN rail mounting | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Status display | LEDs:P1, P2, Fault, State, Error, LAN, WAN |
Specifications may be subject to change without notice
