Product Model

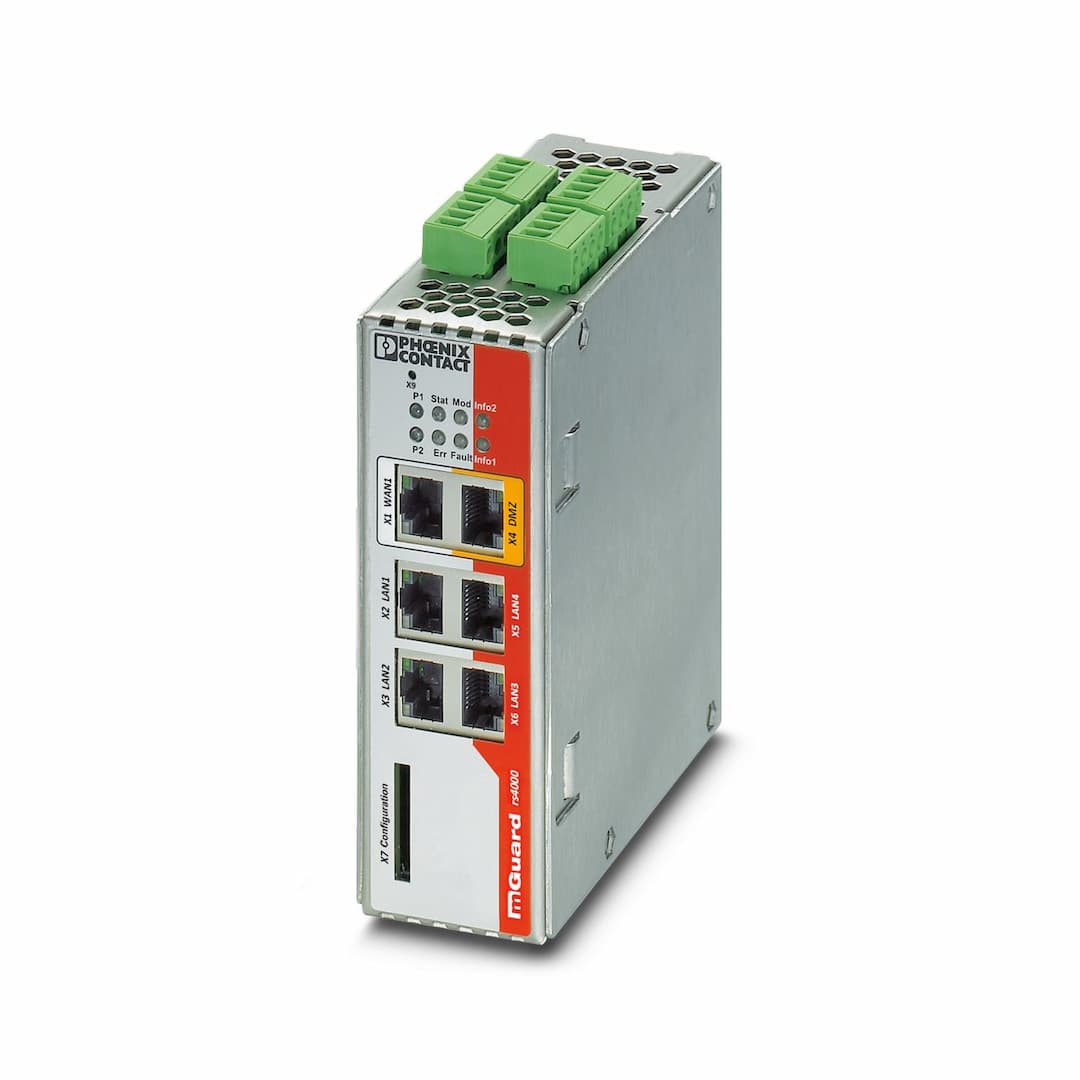

FL MGUARD RS4004 TX/DTX VPN
Selling Points
- 1Advanced Firewall Protection: Comprehensive stateful inspection firewall with full scope of functions.
- 2High-Performance VPN: Supports up to 42 Mbps VPN throughput and optional up to 250 tunnels with additional license.
- 3Integrated Switch: Includes a 4-port managed switch for seamless network management.
- 4Industrial-Grade Design: Metal housing with extended temperature range (-20°C to 60°C) and high reliability.
- 5Redundancy Options: Supports redundancy pairs for high availability in critical industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 45 mm | Height | 130 mm |
Depth | 120.6 mm | Note on application | Only for industrial use |
Color | silver | Housing material | Metal |
Connection method | RJ45 | Transmission speed | 10/100 Mbps |
Transmission physics | Ethernet in RJ45 twisted pair | Transmission length | 100 m (per segment) |
Signal LEDs | Supply voltage, data transmission, error, link, activity | No. of channels | 6 (RJ45 ports) |
Connection method | Plug-in/screw connection via COMBICON | Additional text | not electrically isolated |
Connection method | 24 V DC/250 mA can be connected as an option | Basic functions | Router with intelligent firewall, integrated 4-port managed switch and VPN for 10 tunnels (opt. up to 250 with additional license), CIFS Integrity Monitoring (opt.), metal housing, slot for SD memory card, extended temperature range, high-performance firewall/VPN: up to 124 Mbps / 40 Mbps |
Supported browsers | HTTPS support required | Product type | Security router for the DIN rail |
Type | Stand-Alone | Article revision | 10 |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | 1:1 Network Address Translation (NAT) in the VPN | supported |
Number of VPN tunnels | 10 (up to 250 tunnels with additional license as an option) | Authentication | X.509v3 certificates with RSA or PSK |
Data integrity | MD5, SHA-1, SHA 256, SHA-512 | Dynamic Host Configuration Protocol (DHCP) support | Server or Relay Agent |
Filtering | MAC and IP addresses, ports, protocols | Firewall data throughput | max. 130 Mbps (Router mode, default firewall rules, bidirectional throughput)
max. 61 Mbps (Stealth mode, default firewall rules, bidirectional throughput) |
Firewall rules | Configurable stateful inspection firewall with full scope of functions | Basic functions | Router with intelligent firewall, integrated 4-port managed switch and VPN for 10 tunnels (opt. up to 250 with additional license), CIFS Integrity Monitoring (opt.), metal housing, slot for SD memory card, extended temperature range, high-performance firewall/VPN: up to 124 Mbps / 40 Mbps |
Internet Protocol Security (IPsec) mode | ESP tunnel / ESP transport | Link Layer Discovery Protocol (LLDP) | As per protocol 802.2 |
Network Time Protocol (NTP) client | Client/server | Remote Syslog Logging | on externals server |
Routing | Standard routing, NAT, 1:1-NAT, port forwarding | Protection against | IP spoofing, DoS and Syn Flood Protection |
Encryption methods | DES, 3DES, AES-128, -192, -256 | Virtual private network (VPN) throughput | max. 42 Mbps (Router)
max. 27 Mbps (Stealth mode, VPN bidirectional throughput) |
Local diagnostics | P1, P2 Supply voltage US1, US2 Green LED
One LED per port Link active Green LED | Maximum power dissipation for nominal condition | 2.4 W |
Supply voltage (DC) | 24 V DC (redundant) | Supply voltage range | 11 V DC ... 36 V DC |
Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² | Residual ripple | 3.6 V |
Max. current consumption | 180 mA (unloaded outputs) | Typical current consumption | 100 mA (at U |
Signal contact control voltage | 24 V DC (typical) | Signal contact control current | 250 mA (short-circuit-proof) |
Degree of protection | IP20 | Ambient temperature (operation) | -20 °C ... 60 °C |
Ambient temperature (storage/transport) | -40 °C ... 70 °C | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
Conformance | CE-compliant | Mounting type | DIN rail mounting |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Status display | LEDs:P1, P2, Fault, State, Error, LAN, WAN |
Specifications may be subject to change without notice
