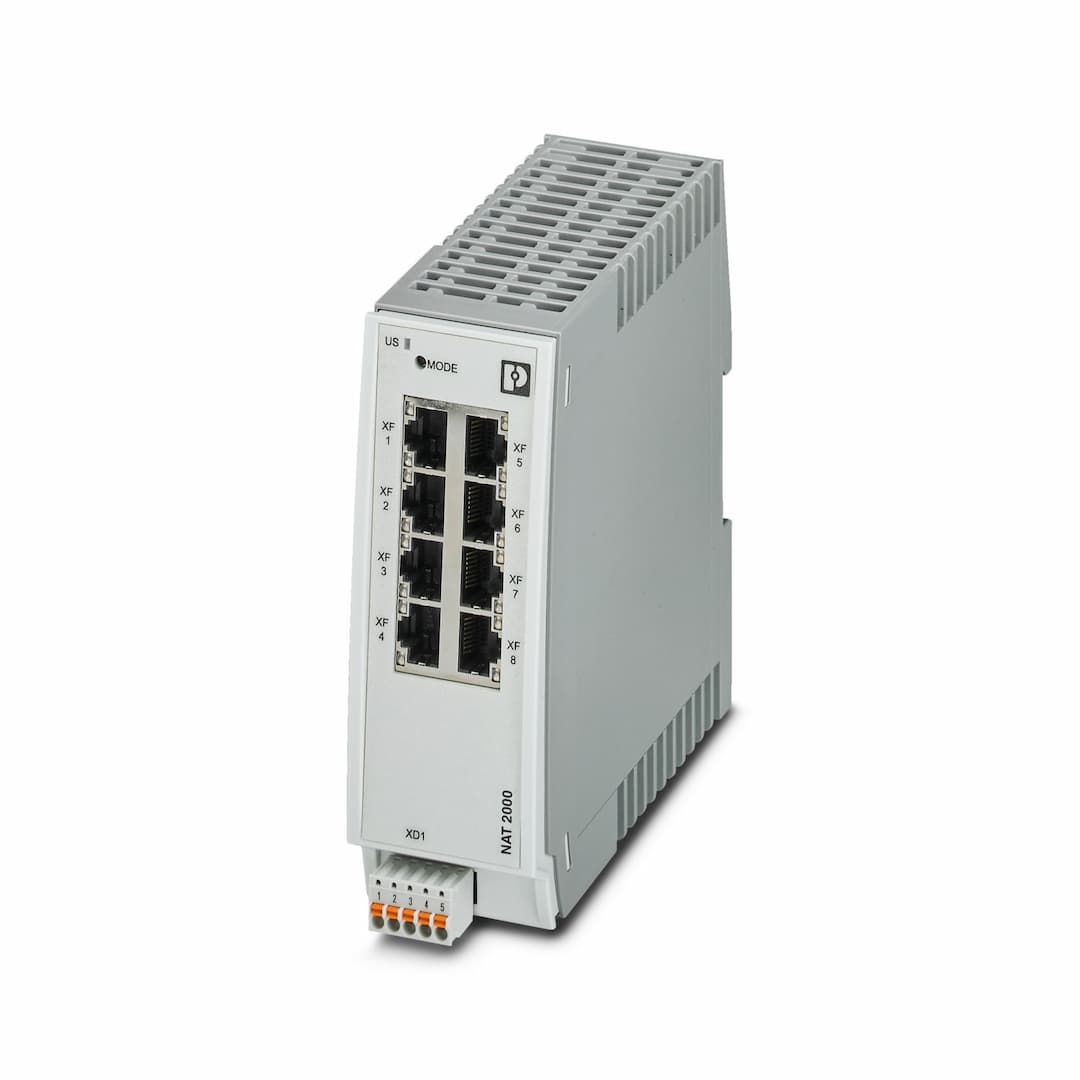

Product Model
FL NAT 2008
Selling Points
- 1Suitable for PROFINET and EtherNet/IP networks.
- 2Easy and fast startup with FL NETWORK MANAGER software.
- 3Configuration memory for efficient management.
- 48 RJ45 ports with 10/100 Mbps transmission speed.
- 5Slim design with ambient temperature range -40°C to +70°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 45 mm | Height | 130 mm |
Depth | 115 mm | General | Support by phone or on-site (fee is charged) |
Note on application | Only for industrial use | Housing material | Polycarbonate fiber reinforced |
Mounting type | DIN rail mounting | Connection method | RJ45 |
Note on the connection method | Auto negotiation and autocrossing | Transmission speed | 10/100 Mbps |
Transmission physics | Copper | Transmission length | 100 m (per segment) |
Signal LEDs | Data receive, link status | No. of channels | 8 (RJ45 ports) |
Product type | Switch | Product family | Managed NAT Switch 2000 |
Type | Book type | MTTF | 507.8 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
246.55 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
56.66 Years (SN 29500 standard, temperature 55°C, operating cycle 100%) |
Special properties | 1:1-NAT, Virtual NAT, IP-Masquerading
Development process certified in accordance with IEC 62443-4-1
Compatible with IEC 62443-4-2 | Signal delay | ≥ 6.5 µs (Store and Forward mode, 10/100 Mbps, depending on the frame size) |
Article revision | 05 | Protection class | III (VDE 0106) |
Diagnostic functions | RMON History
LLDP (Link Layer Discovery Protocol)
SNMP-Traps
N:1-Portmirroring
ACD (Address Conflict Detection)
SysLog
CRC-Surveillance | Basic functions | Router for standard routing, NAT, 1:1-NAT and port forwarding |
NAT functions | 1:1-NAT
Virtual-NAT
IP-Masquerading
Port forwarding | PROFINET conformance class | Conformance-Class A |
Filter functions | Quality of Service (8 priority classes)
Class of Service
DiffServ/DSCP
Port-Priorisierung
VLAN (up to 8 VLANs)
IGMP Snooping/Querier (v1/v2)
Auto-Query-Port
Extended Multicast Filtering | IP parameterization | DHCP client
DHCP server (port based)
BootP |
MAC address table | 8k | Management | Web-based management (HTTP/HTTPS)
Role-based user management (LDAP, RADIUS)
SNMPv1/v2/v3
Command Line Interface (Telnet, SSH) |
Redundancy | MRP (Media Redundancy Protocol)
RSTP (Rapid Spanning Tree Protocol) | Status and diagnostic indicators | LEDs: US (power supply), 2 LEDs per Ethernet port (Link/Activity and Speed) |
Time synchronization | SNTP (Simple Network Time Protocol) | Basic functions | Router for standard routing, NAT, 1:1-NAT and port forwarding |
Current consumption | 180 mA | Local diagnostics | US Supply voltage Green LED
LNK/ACT Link status Green LED
SPD Data transmission speed Green LED |
Maximum power dissipation for nominal condition | 4.86 W (At U | Test section | 24 V supply / functional ground 500 V DC 1 min
Ethernet interface/all other potentials 2.25 kV DC 1 min |
Transmission medium | Copper | Supply voltage (DC) | 24 V DC (single) |
Supply voltage range | 18 V DC ... 32 V DC | Power supply connection | via COMBICON, max. conductor cross section 1.5 mm² |
Residual ripple | 3.6 V | Max. current consumption | 0.35 A (At U |
Typical current consumption | 180 mA (at U | Current consumption | 180 mA |
Connection method | Screw connection | Note on the connection method | Use only copper connecting cables providing the permitted temperature range (-40 °C ... 75 °C). |
Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 7 mm |
Degree of protection | IP20 | Ambient temperature (operation) | 0 °C ... 60 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) | Shock (operation) | 30g (EN 60068-2-27) |
Vibration (operation) | 2g, according to IEC 60068-2-6 | Air pressure (operation) | 86 kPa ... 108 kPa (1500 m above sea level) |
Air pressure (storage/transport) | 86 kPa ... 108 kPa | Free from substances that could impair the application of coating | Yes |
UL, USA | UL 61010-1, Ed.3 / UL 61010-2-201, Ed.1 | UL, Canada | CSA C22.2 NO.61010-2-201:14, Ed.1 / CSA C22.2 NO.61010-1-12, Ed.3 |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Conformance with EMC directives | EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B
EN 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A
EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A
EN 61000-6-2 EN 61000-4-5 (surge) Criterion B
EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A
EN 61000-6-2 EN 61000-6-4 (interference) Class A
EN 61000-6-2 EN 61000-6-4 (conducted interference) Class A |
Noise immunity | EN 61000-6-2 | Noise emission | EN 61000-6-4 |
Basic functions | Router for standard routing, NAT, 1:1-NAT and port forwarding | Status display | LEDs: US (power supply), 2 LEDs per Ethernet port (Link/Activity and Speed) |
