Product Model

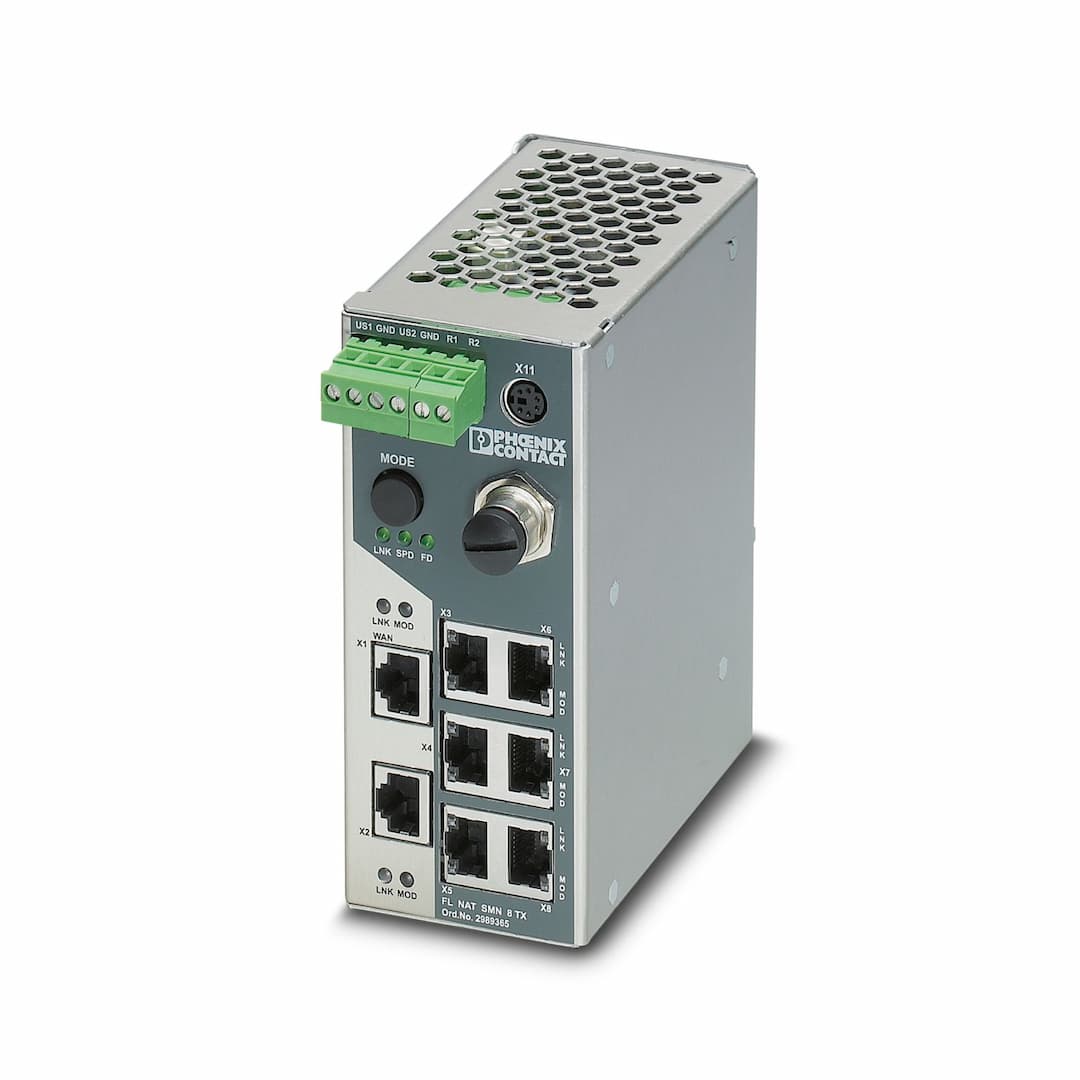

FL NAT SMN 8TX-M
Selling Points
- 1Combines switch and NAT functions in one device.
- 2Suitable for automation applications with a slim, control cabinet-friendly housing.
- 3Configurable via web server and SNMP for easy management.
- 4Supports up to 32 VLANs for network segmentation.
- 5Includes 1:1 NAT and Virtual NAT for flexible IP address management.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 57 mm | Height | 133 mm |
Depth | 130 mm | Color | gray aluminum |
Mounting type | DIN rail mounting | Connection method | RJ45 |
Note on the connection method | Auto negotiation and autocrossing | Transmission speed | 10/100 Mbps |
Transmission physics | Copper | Transmission length | 100 m (per segment) |
Signal LEDs | Supply voltage, data transmission, error, link, activity | No. of channels | 8 (RJ45 ports) |
Connection method | RS-232-C, 6-pos. MINI-DIN socket (PS/2) | Product type | Switch |
Product family | Managed NAT Switch SMN | Type | Book type |
MTTF | 349.06 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
185.83 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
46.86 Years (SN 29500 standard, temperature 70°C, operating cycle 100%) | Article revision | 02 |
Diagnostic functions | RMON History
LLDP (Link Layer Discovery Protocol)
SNMP-Traps | Basic functions | Store and forward switch, complies with IEEE 802.3 2, priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, integrated web server function, Rapid Spanning Tree (RSTP), router, 1:1 NAT router |
Signal contact control voltage | 24 V DC (typical) | Signal contact control current | 600 mA (maximum) |
Filter functions | VLAN (up to 32 VLANs) | Management | Web-based management (HTTP)
SNMP v1/v2 |
Redundancy | RSTP (Rapid Spanning Tree Protocol)
FRD (Fast Ring Detection)
Large Tree Support
STP (Spanning Tree Protocol)
MRP (Media Redundancy Protocol) | Status and diagnostic indicators | LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link and switchable Activity/Speed/Duplex) |
Supported browsers | Internet Explorer 5.5 or higher | Additional functions | Routing (1:1 NAT, Virtual NAT, Routing)
BootP
DHCP-Client |
Dynamic Host Configuration Protocol (DHCP) support | Client/ Relay Agent | Basic functions | Store and forward switch, complies with IEEE 802.3 2, priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, integrated web server function, Rapid Spanning Tree (RSTP), router, 1:1 NAT router |
Link Layer Discovery Protocol (LLDP) | As per protocol 802.2 | Network Time Protocol (NTP) client | Client |
Routing | NAT, 1:1-NAT, Virtual NAT | Power consumption | 14.5 W |
Maximum power dissipation for nominal condition | 14.5 W | Transmission medium | Copper |
Supply voltage (DC) | 24 V DC (redundant) | Supply voltage range | 18 V DC ... 32 V DC |
Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² | Residual ripple | 3.6 V |
Max. current consumption | 600 mA | Typical current consumption | 600 mA (at U |
Signal contact control voltage | 24 V DC (typical) | Signal contact control current | 600 mA (maximum) |
Degree of protection | IP20 | Ambient temperature (operation) | 0 °C ... 55 °C (non-condensing) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) | Vibration (operation) | in accordance with IEC 60068-2-6: 5g, 10 Hz ... 150 Hz |
Air pressure (operation) | 86 kPa ... 108 kPa (2000 m above mean sea level) | Air pressure (storage/transport) | 66 kPa ... 108 kPa (3500 m above sea level) |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Conformance with EMC directives | IEC 61000-4-2 (ESD) Criterion A
IEC 61000-4-3 (electromagnetic fields) Criterion A
IEC 61000-4-4 (burst) Criterion A
IEC 61000-4-5 (surge) Criterion A
IEC 61000-4-6 (immunity to conducted interference) Criterion A |
Noise immunity | EN 61000-6-2:2005 | Noise emission | EN 61000-6-4:2007 + A1:2011 |
Basic functions | Store and forward switch, complies with IEEE 802.3 2, priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, integrated web server function, Rapid Spanning Tree (RSTP), router, 1:1 NAT router | Supported browsers | Internet Explorer 5.5 or higher |
Status display | LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link and switchable Activity/Speed/Duplex) |
Specifications may be subject to change without notice
