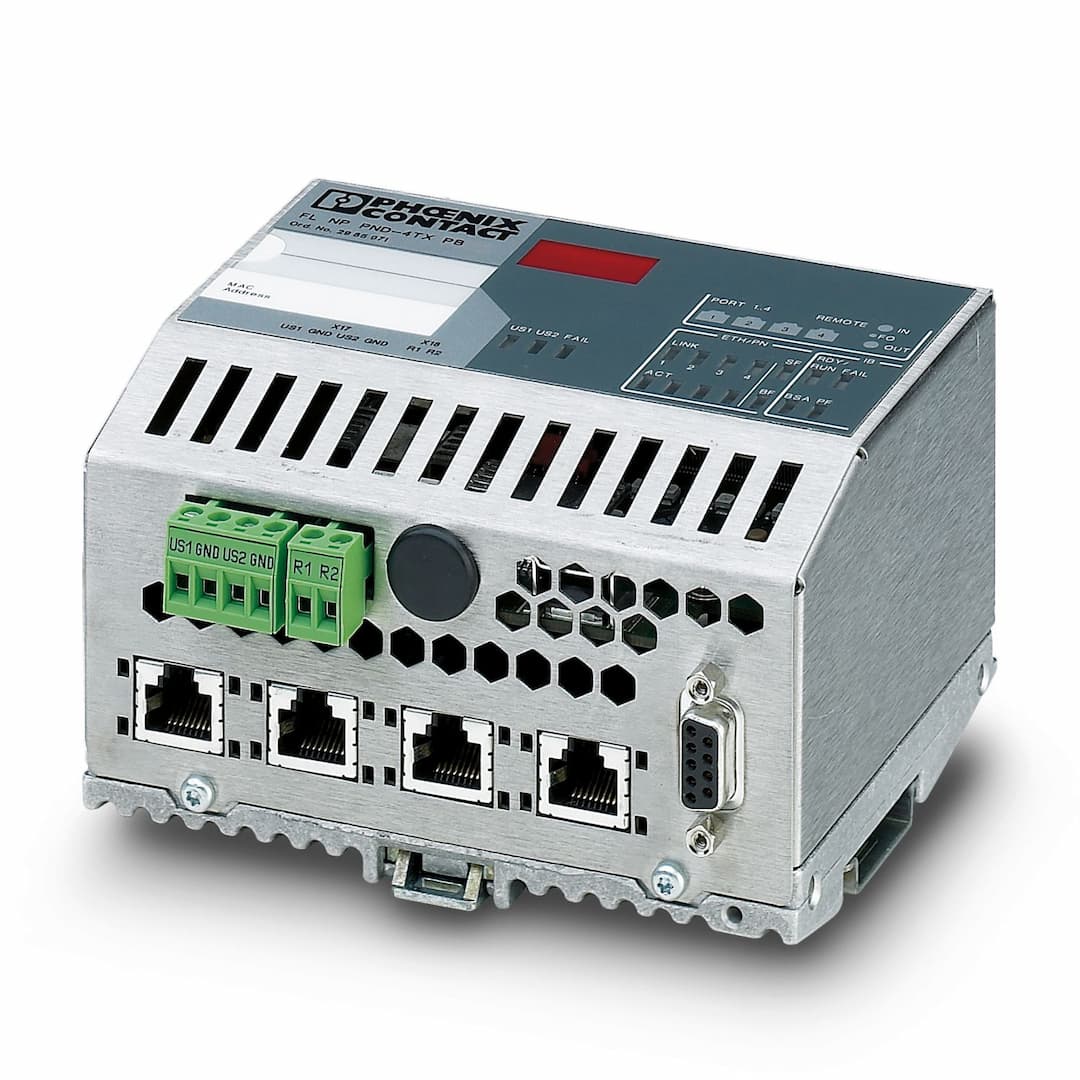

Product Model
FL NP PND-4TX IB
Selling Points
- 1Integrates complete INTERBUS systems seamlessly with PROFINET functions.
- 2Supports PROFINET update rates ≥ 1 ms for real-time data exchange.
- 3Offers LLDP support for topology detection and network management.
- 4Compatible with various controllers using PROFINET functionality.
- 5Features a 4-port switch for efficient data transmission and diagnostics.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Gateways/Proxies |
Type | Stand-Alone | Article revision | 15 |
Amount of process data | 512 words | Number of supported devices | max. 512 (Depending on the control class and data direction) |
Number of devices with parameter channel | max. 126 (512 words) | Amount of process data | 512 words |
Number of PCP words | 512 words | Number of I/O nodes | 8192 |
Maximum power dissipation for nominal condition | 8.4 W | Supply voltage (DC) | 24 V DC |
Supply voltage range | 18.5 V DC ... 30.2 V DC | Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² |
Residual ripple | 3.6 V | Typical current consumption | typ. 350 mA |
Connection method | RJ45 jack | Transmission speed | 10/100 Mbps |
Transmission length | 100 m | No. of channels | 4 |
Bus system | INTERBUS | Connection method | 9-pos. D-SUB socket |
Transmission speed | 500 kbps / 2 Mbps (can be switched) | No. of channels | 1 |
Status display | 7-segment display/ diagnostics LEDs | Width | 128 mm |
Height | 95 mm | Depth | 69 mm |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 60 °C |
Ambient temperature (storage/transport) | -25 °C ... 70 °C | Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) | Vibration (operation) | 5g, accordance to IEC 60068-2-6 |
Air pressure (operation) | 80 kPa ... 108 kPa (2000 m above mean sea level) | Air pressure (storage/transport) | 66 kPa ... 108 kPa (3000 m above sea level) |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Conformance with EMC directives | Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Electrostatic discharge (ESD)EN 61000-4-2/IEC 61000-4-2 Criterion B, ±6 kV contact discharge, ±8 kV air discharge
Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Electromagnetic fieldsEN 61000-4-3/IEC 61000-4-3 Criterion A, Field intensity: 10 V/m
Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Fast transients (burst)EN 61000-4-4/IEC 61000-4-4 Criterion A, all interfaces ±1 kVCriterion B, all interfaces ±2 kV
Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Transient overvoltage (surge)EN 61000-4-5/IEC 61000-4-5 Criterion B, supply lines DC: 0.5 kV/0.5 kV (symmetrical/asymmetrical), fieldbus cable shield 1 kV
Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Conducted interferenceEN 61000-4-6/IEC 61000-4-6 Criterion A, Test voltage 10 V
Noise emission test in accordance with EN 61000-6-4/IEC 61000-6-4 EN 55011 Class A |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
