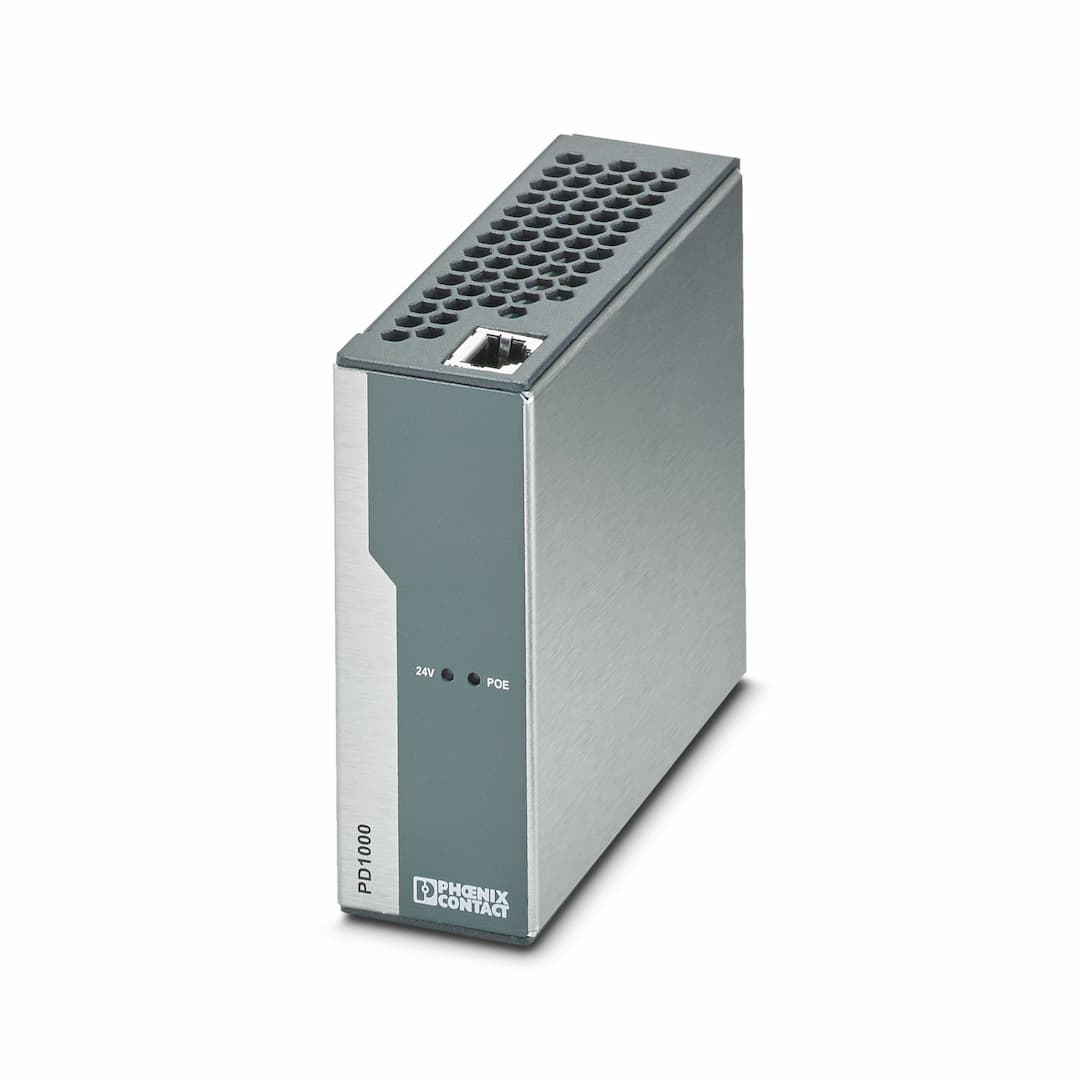

Product Model
FL PD 1001 T GT
Selling Points
- 1Industrial-grade Power over Ethernet (PoE): Separates power and data according to IEEE 802.3af and at standards.
- 2High-speed Ethernet: Supports transmission speeds of up to 1000 Mbps.
- 3Compact Design: Compact housing with dimensions of 40 mm x 100 mm x 109 mm.
- 4Durable Construction: Made from metal housing with IP20 protection.
- 5Easy Installation: DIN rail mounting for seamless integration into industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 40 mm | Height | 100 mm |
Depth | 109 mm | Note on application | Only for industrial use |
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Housing material | Metal |
Mounting type | DIN rail mounting | Connection method | RJ45 |
Transmission speed | 10/100/1000 Mbps | Transmission physics | Copper |
Transmission length | 100 m (Total) | No. of channels | 1 (RJ45 ports) |
No. of channels | 1 | Connection method | RJ45 |
Transmission speed | 10/100/1000 Mbps | Transmission length | up to 100 m (complete system) |
No. of channels | 1 (RJ45 ports) | Product type | Power over Ethernet devices |
Type | Stand-Alone | Operating mode | Mode transparent |
MTTF | 1344.41 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
520.19 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
52.81 Years (SN 29500 standard, temperature 70°C, operating cycle 100%) | Article revision | 02 |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Local diagnostics | 24 V Output voltage Green LED
PoE PoE detection Yellow LED |
Test section | PoE-IN / 24V-Out 2.25 kV DC 1 min
PoE-IN / Eth-Out 2.25 kV DC 1 min
PoE-IN/functional ground 2.25 kV DC 1 min
24 V supply / functional ground 2.25 kV DC 1 min
Functional ground/Eth-Out 2.25 kV DC 1 min | Transmission medium | Copper |
Supply voltage (DC) | 48 V DC (via PoE) | Supply voltage range | 44 V DC ... 57 V DC |
Power supply connection | via PoE | Conductor cross section | 0.14 mm² ... 1.5 mm² |
Connection cross section AWG | 24 ... 12 | Degree of protection | IP20 |
Ambient temperature (operation) | -40 °C ... 70 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Permissible humidity (operation) | 10 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz | Air pressure (operation) | 86 kPa ... 108 kPa |
Air pressure (storage/transport) | 66 kPa ... 108 kPa (3500 m above sea level) | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion A
IEC 61000-4-3 (immunity to radiated interference) Criterion A
IEC 61000-4-4 (burst) Criterion A
IEC 61000-4-5 (surge) Criterion A
IEC 61000-4-6 (immunity to conducted interference) Criterion A
EN 55022 (emitted interference) Criterion A | Noise immunity | EN 61000-6-2:2005 |
Noise emission | EN 61000-6-4 | Basic functions | PD, conforms to IEEE 802.3af/at |
Status display | LEDs: POE, 24 V DC |
Specifications may be subject to change without notice
