Product Model

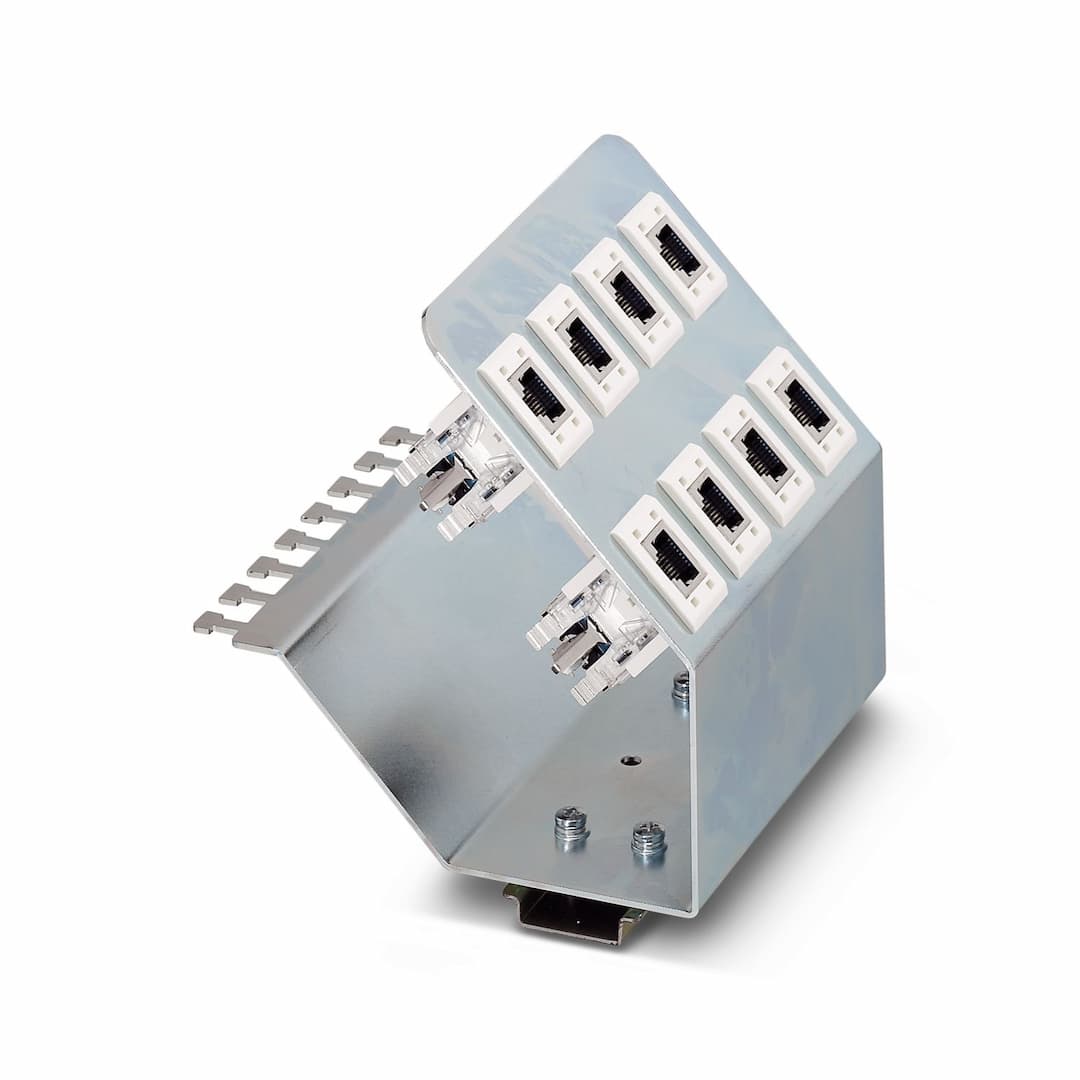

FL PF 8TX CAT5E
Selling Points
- 1Future-proof installation with standardized CAT5 and CAT6 standards.
- 2Enhanced security through extension with FL PLUG GUARD.
- 3Flexible connectivity options with 8 RJ45 CAT5e network connections.
- 4Supports auto negotiation for seamless transmission speed adaptation.
- 5Compliant with IEEE 802.3 and IEEE 802.1 protocols for reliable data transfer.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Patch panel | Rated voltage (III/3) | 50 V |
Rated surge voltage | ≥ 1 kV | Rated current | 1 A |
Connection method | IDC | Connection method | RJ45 |
No. of channels | 8 | Width | 124 mm |
Height | 135 mm | Depth | 140 mm |
Material Housing | Metal | Degree of protection | IP20 |
Ambient temperature (operation) | 0 °C ... 55 °C (non-condensing) | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Permissible humidity (operation) | 10 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
Conformance with EMC directives | ISO/IEC 11801, EN 50173, TIA/EIA 568B and IEC 60603–7 |
Specifications may be subject to change without notice
