Product Model
FL PF SEC 8TX
Selling Points

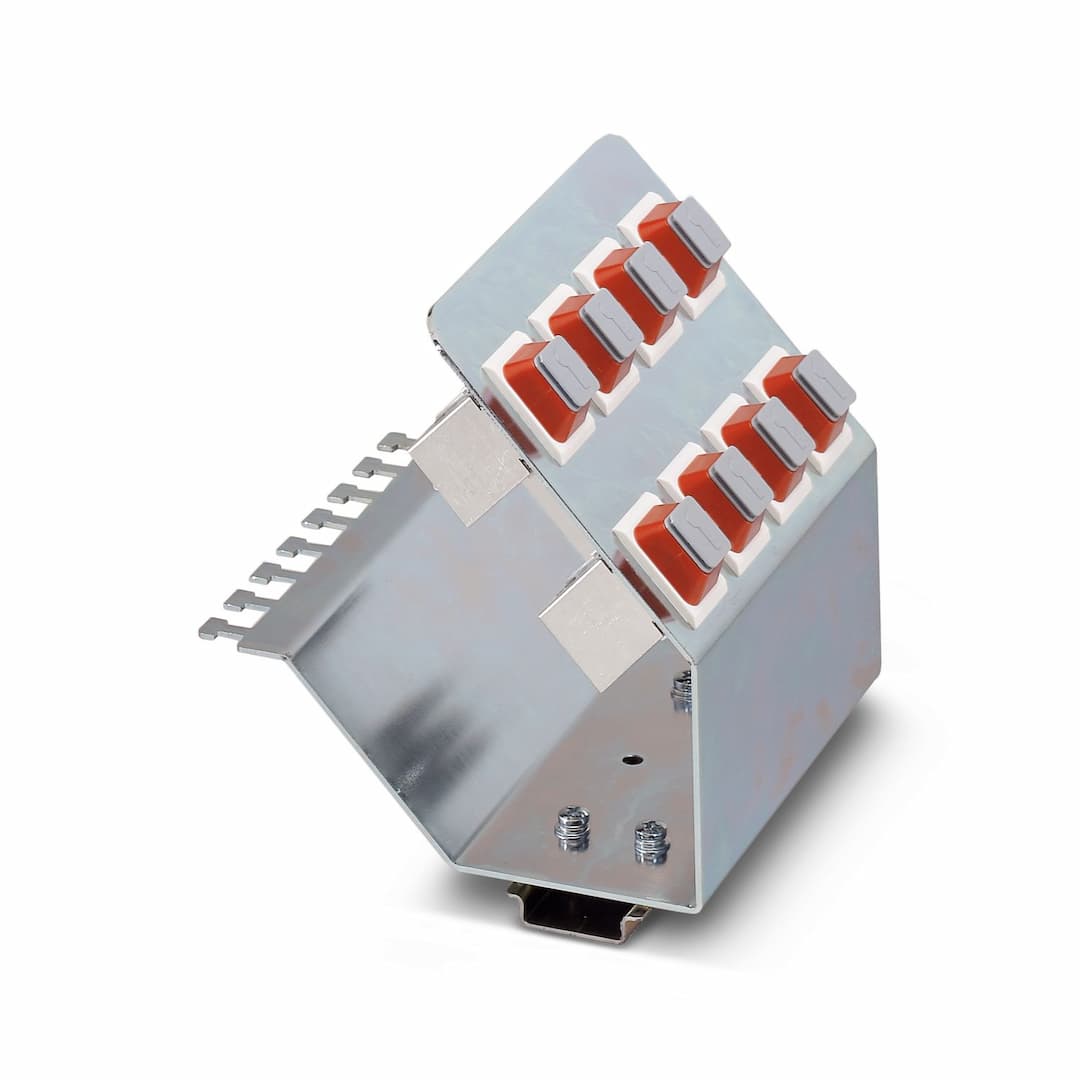

- 1The FL PF SEC 8TX patch panel includes Layer 1 security elements to prevent unauthorized access and disconnection of patch cables.
- 2Constructed with robust metal housing, ensuring long-lasting performance in industrial environments.
- 3Pre-assembled patch cables simplify the connection process, and the patch field can be latched onto a DIN rail or mounted directly onto a panel.
- 4Meets international standards for industrial environments, ensuring full compatibility with passive coupling points.
- 5Can be mounted perpendicular to a standard mounting rail, providing flexibility in installation configurations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Patch panel | Rated voltage (III/3) | 50 V |
Rated surge voltage | ≥ 1 kV | Rated current | 1 A |
Connection method | IDC | Connection method | RJ45 CAT5e |
No. of channels | 8 | Width | 124 mm |
Height | 135 mm | Depth | 140 mm |
Material Housing | Metal | Degree of protection | IP20 |
Ambient temperature (operation) | 0 °C ... 55 °C (non-condensing) | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Permissible humidity (operation) | 10 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
Conformance with EMC directives | ISO/IEC 11801, EN 50173, TIA/EIA 568B and IEC 60603–7 |
Specifications may be subject to change without notice
