Product Model

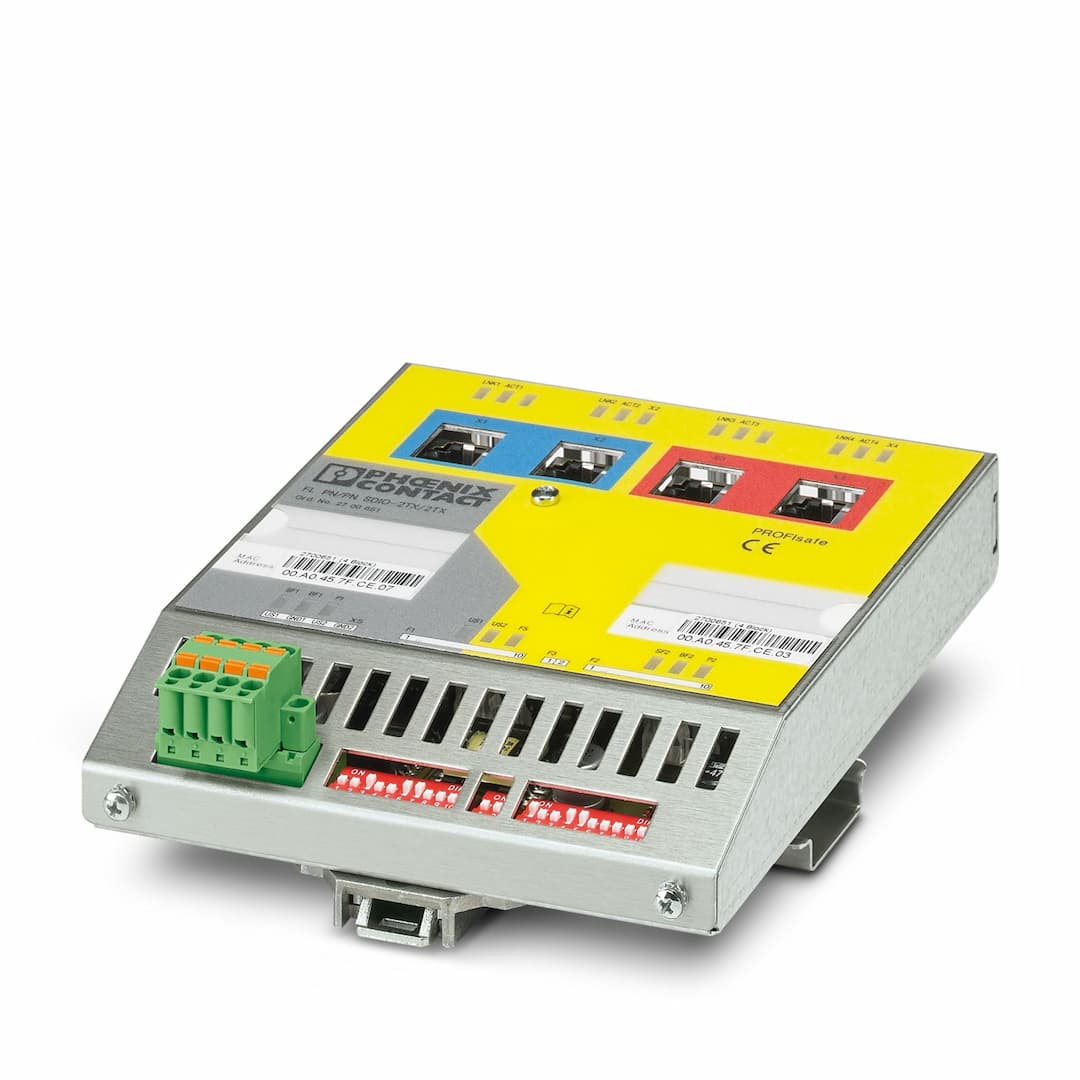

FL PN/PN SDIO-2TX/2TX
Selling Points
- 1Industrial-grade connectivity: Connects two PROFINET systems for seamless data transfer.
- 2Enhanced safety features: Supports safety functions up to SIL 3, PL e, Cat. 4.
- 3Dual I/O support: Transfers up to 128 bytes of standard I/O and 11 bytes of safe I/O via PROFIsafe.
- 4Redundant power supply: Ensures continuous operation with a redundant power supply.
- 5Durable design: IP20 protection and DIN rail mounting for robust installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Gateways/Proxies |
Type | Block design | Operating mode | PROFINET/PROFIsafe |
Article revision | 06 | Device function | PROFINET device |
Specification | 2.2 | Conformance Class | B |
Maximum power dissipation for nominal condition | typ. 4.5 W | Supply voltage | 24 V DC |
Supply voltage range | 18.5 V DC ... 30 V DC | Supply voltage | 24 V DC |
Supply voltage | 24 V DC | Supply voltage range | 18.5 V DC ... 30 V DC (including ripple) |
Current consumption | max. 250 mA | Ripple | 3.6 V |
Protective circuit | Polarity protection, surge protection; 35 V DC | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 26 ... 12 | Width | 130 mm |
Height | 27 mm | Depth | 145 mm |
Note on dimensions | Housing dimensions | Category | max. 4 |
Performance level (PL) | max. e | Ambient temperature (operation) | -25 °C ... 60 °C |
Degree of protection | IP20 | Air pressure (operation) | 80 kPa ... 108 kPa (up to 2000 m above sea level) |
Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 70 °C |
Permissible humidity (operation) | 10 % ... 85 % (non-condensing) | Permissible humidity (storage/transport) | 10 % ... 85 % (non-condensing) |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | DIN rail mounting
DIN rail mounting |
Specifications may be subject to change without notice
