Product Model

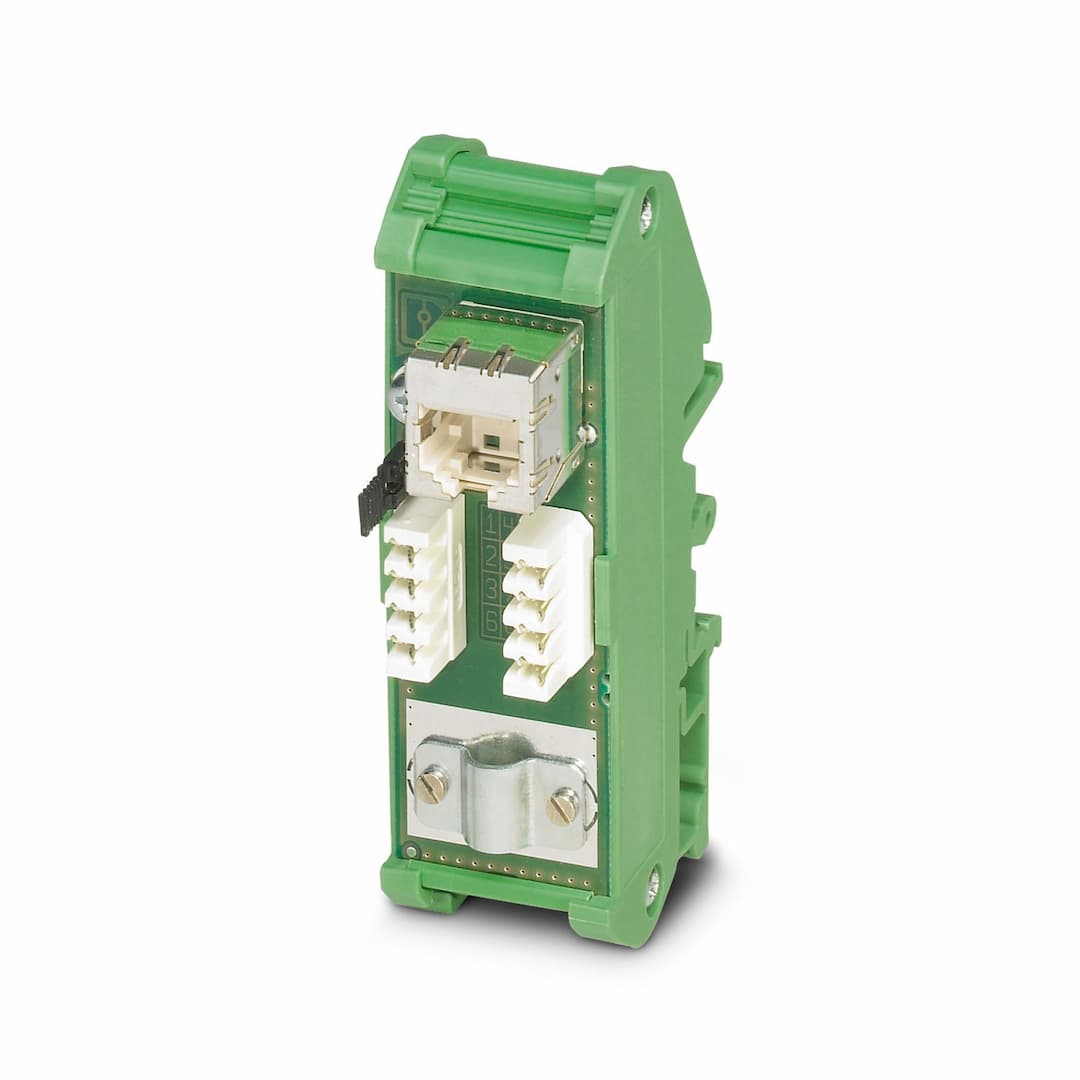

FL-PP-RJ45-LSA
Selling Points
- 1High-Speed Ethernet Compatibility: Supports transmission speeds of up to 1 Gbps.
- 2Convenient Installation: Offers a convenient alternative to on-site assembly of RJ45 connectors.
- 3Durable Design: Built with PVC/PA housing, ensuring robustness and longevity.
- 4Flexible Connectivity Options: Includes 8 LSA connection terminal blocks for 1:1 assignment.
- 5Industrial-Grade Quality: Meets IP20 standards and has shipbuilding approval in accordance with DNV GL.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Patch panel |
MTBF | 6702 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
2962 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day)) | Article revision | 07 |
Connection method | LSA-PLUS | Serial transmission speed | 10/100/1000 Mbps |
Connection method | LSA | No. of channels | 1 |
Pin assignment | 1:1 | Transmission length | 100 m (including patch cables) |
Single conductor/terminal point, rigid | 0.128 mm² ... 0.325 mm² | Single-wire/terminal point, flexible | 0.128 mm² ... 0.325 mm² |
Single-wire/terminal point, rigid AWG max. | 22 | Single-wire/terminal point, rigid AWG min. | 26 |
Connection method | RJ45 CAT5e | No. of channels | 1 |
Width | 29 mm | Height | 90 mm |
Depth | 53 mm | Color (Housing) | green (RAL 6021) |
Material (Housing) | PVC / PA | External cable diameter | 6 mm ... 10 mm |
Cable impedance | 100 Ω | Insertion/withdrawal cycles | ≤ 2500 |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 70 °C |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Ambient temperature (assembly) | -10 °C ... 70 °C |
Permissible humidity (operation) | 25 % ... 95 % (non-condensing) | Identification | ISA-S71.04-1985 G3 Harsh Group A |
Identification | DNV GL | Temperature | B |
Humidity | A | Vibration | A |
EMC | B | Enclosure | Required protection according to the Rules shall be provided upon installation on board |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
